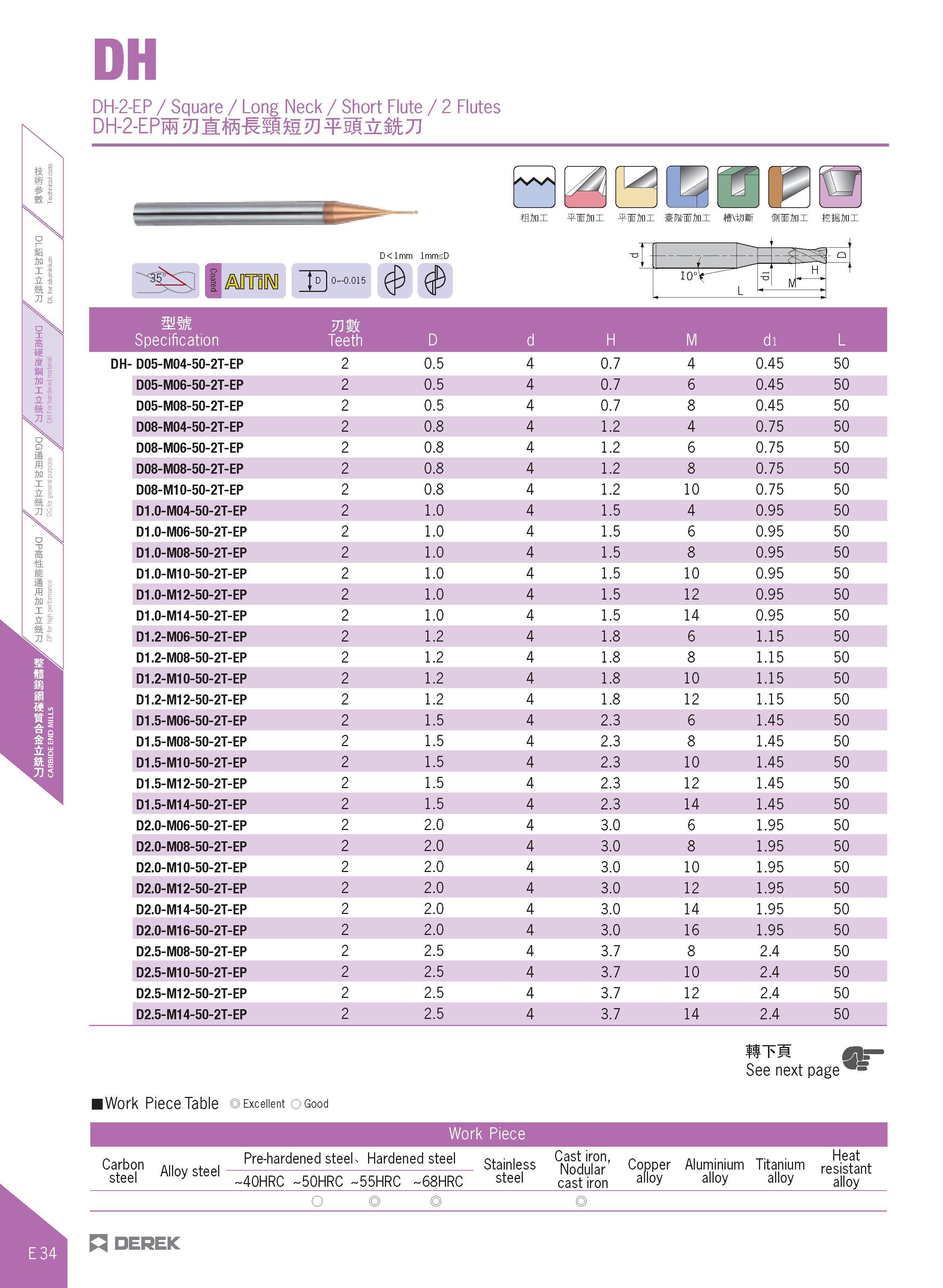

DH-2-EP / Square / Long Neck / Short Flute / 2 Flutes ffijni WJjm WJjm si ini HMsSr fii im tSSiini 1- 10° < L M H t mm snm Specification Teeth D d H 1 DH- D05-M04-50-2T-EP 2 0.5 4 0.7 4 0.45 50 D05-M06-50-2T-EP 2 0.5 4 0.7 6 0.45 50 D05-M08-50-2T-EP 2 0.5 4 0.7 8 0.45 50 D08-M04-50-2T-EP 2 0.8 4 1.2 4 0.75 50 D08-M06-50-2T-EP 2 0.8 4 1.2 6 0.75 50 D08-M08-50-2T-EP 2 0.8 4 1.2 8 0.75 50 D08-M10-50-2T-EP 2 0.8 4 1.2 10 0.75 50 D1.0-M04-50-2T-EP 2 1.0 4 1.5 4 0.95 50 D1.0-M06-50-2T-EP 2 1.0 4 1.5 6 0.95 50 D1.0-M08-50-2T-EP 2 1.0 4 1.5 8 0.95 50 D1.0-M10-50-2T-EP 2 1.0 4 1.5 10 0.95 50 D1.0-M12-50-2T-EP 2 1.0 4 1.5 12 0.95 50 D1.0-M14-50-2T-EP 2 1.0 4 1.5 14 0.95 50 D1.2-M06-50-2T-EP 2 1.2 4 1.8 6 1.15 50 D1.2-M08-50-2T-EP 2 1.2 4 1.8 8 1.15 50 D1.2-M10-50-2T-EP 2 1.2 4 1.8 10 1.15 50 D1.2-M12-50-2T-EP 2 1.2 4 1.8 12 1.15 50 D1.5-M06-50-2T-EP 2 1.5 4 2.3 6 1.45 50 D1.5-M08-50-2T-EP 2 1.5 4 2.3 8 1.45 50 D1.5-M10-50-2T-EP 2 1.5 4 2.3 10 1.45 50 D1.5-M12-50-2T-EP 2 1.5 4 2.3 12 1.45 50 D1.5-M14-50-2T-EP 2 1.5 4 2.3 14 1.45 50 D2.0-M06-50-2T-EP 2 2.0 4 3.0 6 1.95 50 D2.0-M08-50-2T-EP 2 2.0 4 3.0 8 1.95 50 D2.0-M10-50-2T-EP 2 2.0 4 3.0 10 1.95 50 D2.0-M12-50-2T-EP 2 2.0 4 3.0 12 1.95 50 D2.0-M14-50-2T-EP 2 2.0 4 3.0 14 1.95 50 D2.0-M16-50-2T-EP 2 2.0 4 3.0 16 1.95 50 D2.5-M08-50-2T-EP 2 2.5 4 3.7 8 2.4 50 D2.5-M10-50-2T-EP 2 2.5 4 3.7 10 2.4 50 D2.5-M12-50-2T-EP 2 2.5 4 3.7 12 2.4 50 D2.5-M14-50-2T-EP 2 2.5 4 3.7 14 2.4 50 nTM gr- See next page = Work Piece Table Excellent o Good j Work Piece f CSe1" Alloy steel- Pre-hardened steeU Hardened steel stainless Cast iron, Nodular cast iron Copper Aluminium Titanium Heat resistant alloy -40HRC -50HRC -55HRC -68HRC steel alloy alloy alloy O <0 n DEREK
