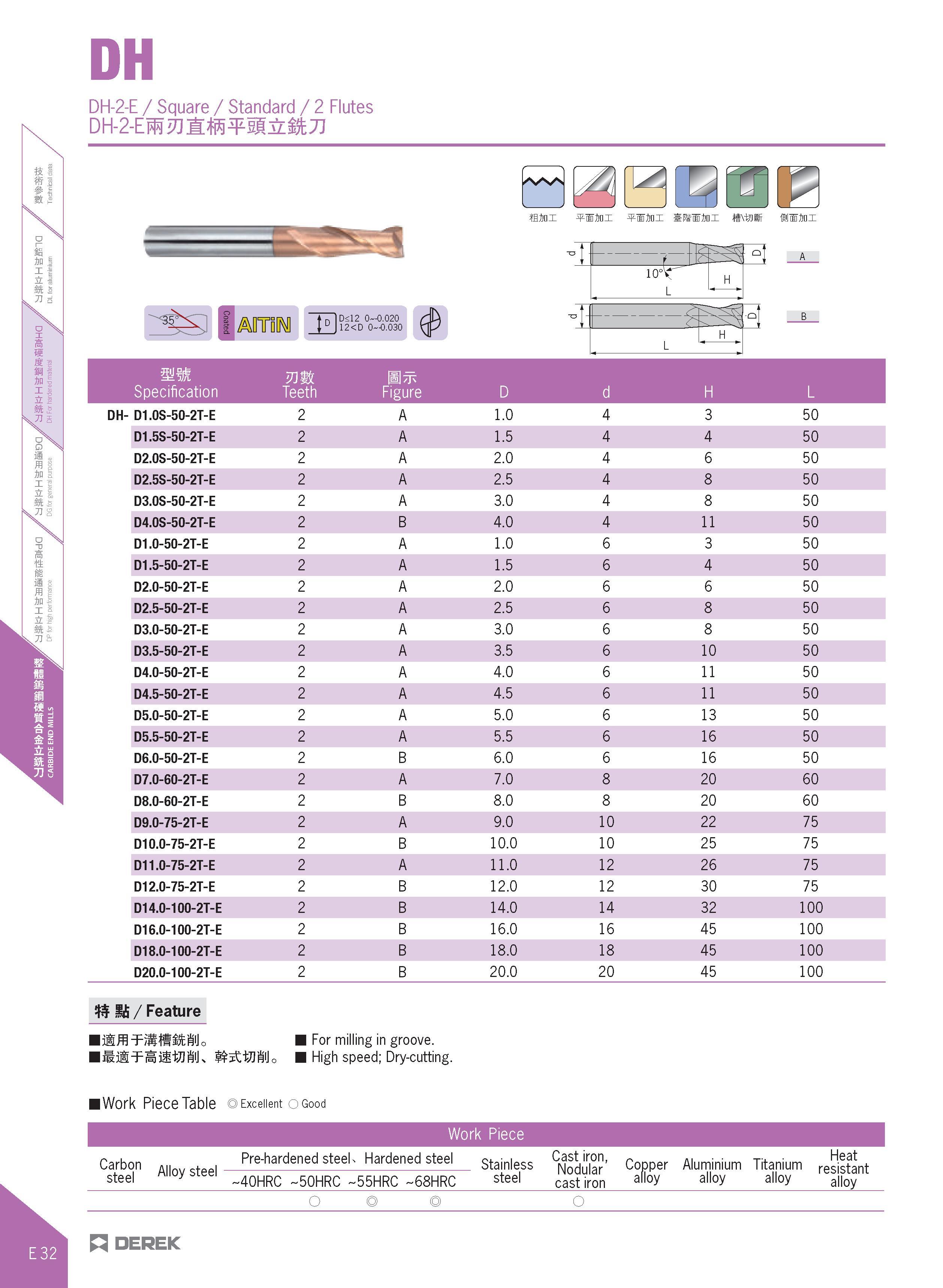

DH-2-E / Square / Standard / 2 Flutes mm Specification Teeth Figure D d H L DH- D1.0S-50-2T-E 2 A 1.0 4 3 50 D1.5S-50-2T-E 2 A 1.5 4 4 50 D2.0S-50-2T-E 2 A 2.0 4 6 50 D2.5S-50-2T-E 2 A 2.5 4 8 50 D3.0S-50-2T-E 2 A 3.0 4 8 50 D4.0S-50-2T-E 2 B 4.0 4 11 50 D1.0-50-2T-E 2 A 1.0 6 3 50 D1.5-50-2T-E 2 A 1.5 6 4 50 D2.0-50-2T-E 2 A 2.0 6 6 50 D2.5-50-2T-E 2 A 2.5 6 8 50 D3.0-50-2T-E 2 A 3.0 6 8 50 D3.5-50-2T-E 2 A 3.5 6 10 50 D4.0-50-2T-E 2 A 4.0 6 11 50 D4.5-50-2T-E 2 A 4.5 6 11 50 D5.0-50-2T-E 2 A 5.0 6 13 50 D5.5-50-2T-E 2 A 5.5 6 16 50 D6.0-50-2T-E 2 B 6.0 6 16 50 D7.0-60-2T-E 2 A 7.0 8 20 60 D8.0-60-2T-E 2 B 8.0 8 20 60 D9.0-75-2T-E 2 A 9.0 10 22 75 D10.0-75-2T-E 2 B 10.0 10 25 75 D11.0-75-2T-E 2 A 11.0 12 26 75 D12.0-75-2T-E 2 B 12.0 12 30 75 D14.0-100-2T-E 2 B 14.0 14 32 100 D16.0-100-2T-E 2 B 16.0 16 45 100 D18.0-100-2T-E 2 B 18.0 18 45 100 D20.0-100-2T-E 2 B 20.0 20 45 100 For milling in groove. High speed; Dry-cutting. Work Piece Table O Excellent o Good Work Piece CSe1" Alloy steel- Pre-hardened steeU Hardened steel stainless -40HRC -50HRC -55HRC -68HRC steel Cast iron, Nodular cast iron Copper alloy Aluminium alloy Titanium alloy Heat resistant alloy DEREK
