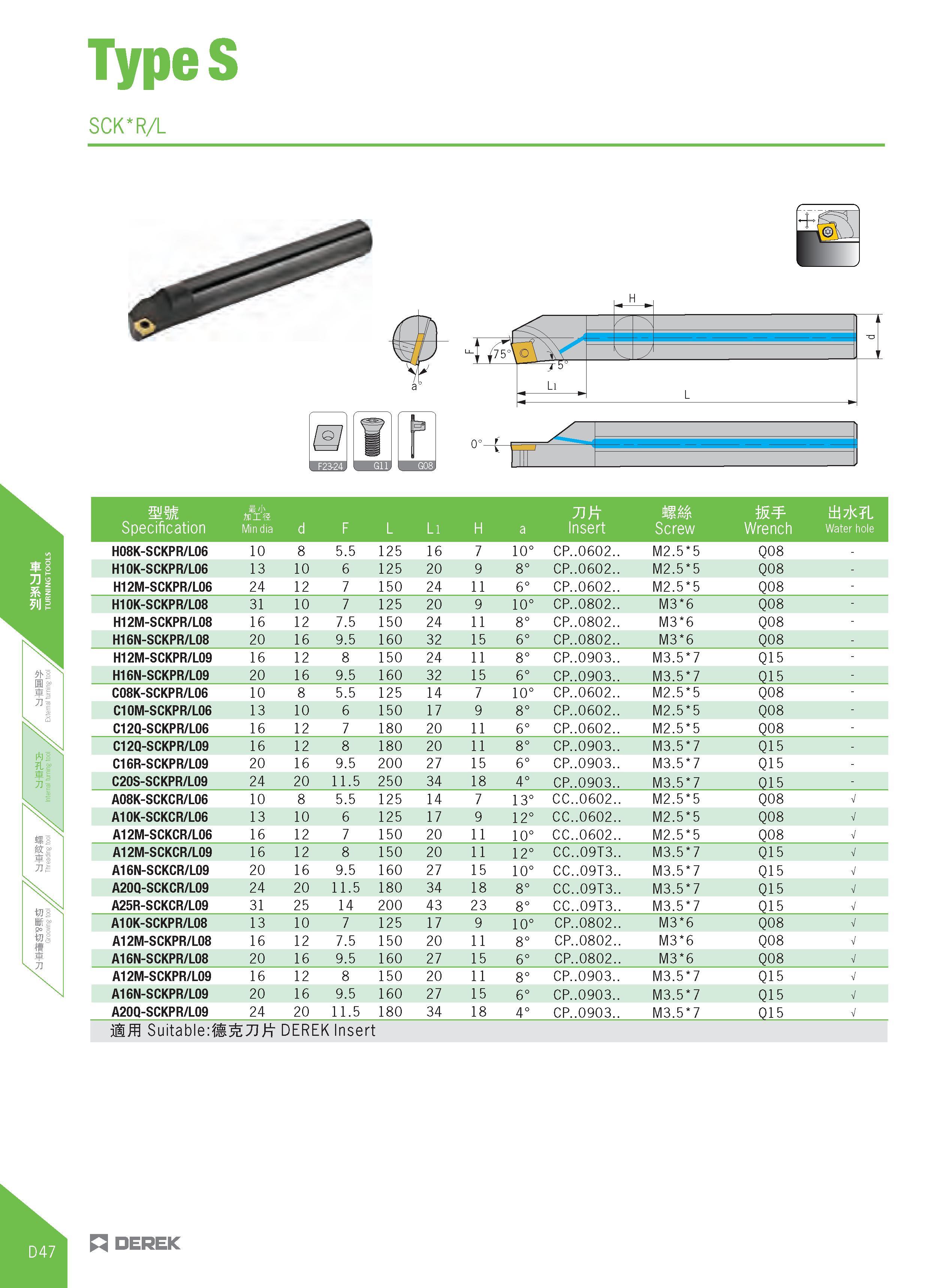

302 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.D47

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. D47 0302 Lab2u

TypeS SCK R/L H DEREK Li Specification H'h flnis Min dia d F L Ll H a Insert Screw Wrench ttS7K L Water hole H08K-SCKPR/L06 10 8 5.5 125 16 7 10° CP..0602.. M2.5 5 Q08 - H10K-SCKPR/L06 13 10 6 125 20 9 8° CP..0602.. M2.5 5 Q08 - H12M-SCKPR/L06 24 12 7 150 24 11 6° CP..0602.. M2.5 5 Q08 - H10K-SCKPR/L08 31 10 7 125 20 9 10° CP..0802.. M3 6 Q08 - H12M-SCKPR/L08 16 12 7.5 150 24 11 8° CP..0802.. M3 6 Q08 - H16N-SCKPR/L08 20 16 9.5 160 32 15 6° CP..0802.. M3 6 Q08 - H12M-SCKPR/L09 16 12 8 150 24 11 8° CP..0903.. M3.5 7 Q15 - H16N-SCKPR/L09 20 16 9.5 160 32 15 6° CP..0903.. M3.5 7 Q15 - C08K-SCKPR/L06 10 8 5.5 125 14 7 10° CP..0602.. M2.5 5 Q08 - C10M-SCKPR/L06 13 10 6 150 17 9 8° CP..0602.. M2.5 5 Q08 - C12Q-SCKPR/L06 16 12 7 180 20 11 6° CP..0602.. M2.5 5 Q08 - C12Q-SCKPR/L09 16 12 8 180 20 11 8° CP..0903.. M3.5 7 Q15 - C16R-SCKPR/L09 20 16 9.5 200 27 15 6° CP..0903.. M3.5 7 Q15 - C20S-SCKPR/L09 24 20 11.5 250 34 18 4° CP..0903.. M3.5 7 Q15 - A08K-SCKCR/L06 10 8 5.5 125 14 7 13° CC..0602.. M2.5 5 Q08 V A10K-SCKCR/L06 13 10 6 125 17 9 12° CC..0602.. M2.5 5 Q08 V A12M-SCKCR/L06 16 12 7 150 20 11 10° CC..0602.. M2.5 5 Q08 V A12M-SCKCR/L09 16 12 8 150 20 11 12° CC..09T3.. M3.5 7 Q15 V A16N-SCKCR/L09 20 16 9.5 160 27 15 10° CC..09T3.. M3.5 7 Q15 V A20Q-SCKCR/L09 24 20 11.5 180 34 18 8° CC..09T3.. M3.5 7 Q15 V A25R-SCKCR/L09 31 25 14 200 43 23 8° CC..09T3.. M3.5 7 Q15 V A10K-SCKPR/L08 13 10 7 125 17 9 10° CP..0802.. M3 6 Q08 V A12M-SCKPR/L08 16 12 7.5 150 20 11 8° CP..0802.. M3 6 Q08 V A16N-SCKPR/L08 20 16 9.5 160 27 15 6° CP..0802.. M3 6 Q08 V A12M-SCKPR/L09 16 12 8 150 20 11 8° CP..0903.. M3.5 7 Q15 V A16N-SCKPR/L09 20 16 9.5 160 27 15 6° CP..0903.. M3.5 7 Q15 V A20Q-SCKPR/L09 24 20 11.5 180 34 18 4° CP..0903.. M3.5 7 Q15 V Suitable: DEREK Insert
