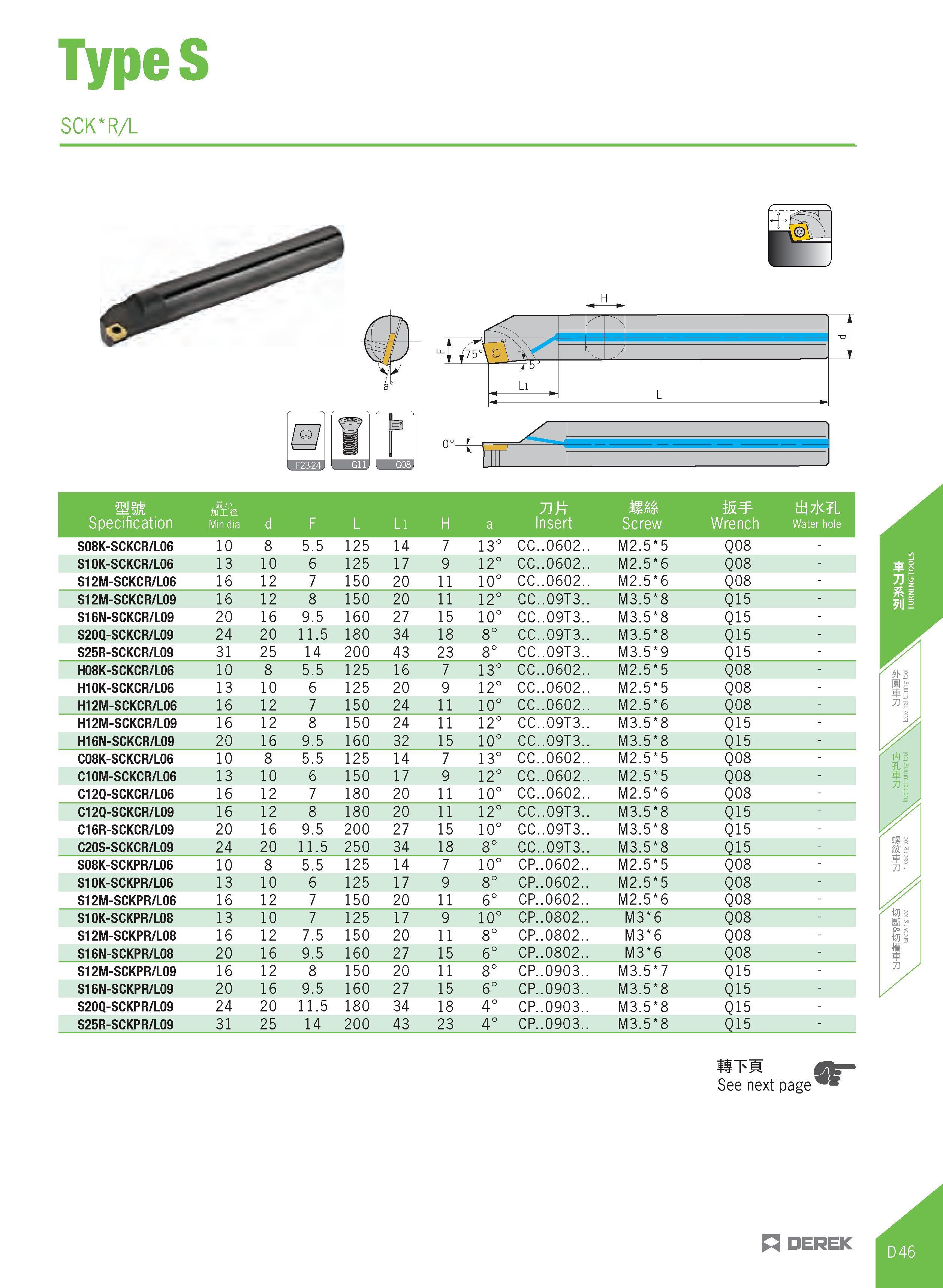

TypeS SCK R/L mm Specification .H'J) Jmis Min dia d F L Li H a 71 Insert Screw Wrench ttS7K L Water hole S08K-SCKCR/L06 10 8 5.5 125 14 7 13° CC..0602.. M2.5 5 Q08 - S10K-SCKCR/L06 13 10 6 125 17 9 12° CC..0602.. M2.5 6 Q08 - S12M-SCKCR/L06 16 12 7 150 20 11 10° CC..0602.. M2.5 6 Q08 - S12M-SCKCR/L09 16 12 8 150 20 11 12° CC..09T3.. M3.5 8 Q15 - S16N-SCKCR/L09 20 16 9.5 160 27 15 10° CC..09T3.. M3.5 8 Q15 S20Q-SCKCR/L09 24 20 11.5 180 34 18 8° CC..09T3.. M3.5 8 Q15 S25R-SCKCR/L09 31 25 14 200 43 23 8° CC..09T3.. M3.5 9 Q15 H08K-SCKCR/L06 10 8 5.5 125 16 7 13° CC..0602.. M2.5 5 Q08 H10K-SCKCR/L06 13 10 6 125 20 9 12° CC..0602.. M2.5 5 Q08 H12M-SCKCR/L06 16 12 7 150 24 11 10° CC..0602.. M2.5 6 Q08 H12M-SCKCR/L09 16 12 8 150 24 11 12° CC..09T3.. M3.5 8 Q15 H16N-SCKCR/L09 20 16 9.5 160 32 15 10° CC..09T3.. M3.5 8 Q15 C08K-SCKCR/L06 10 8 5.5 125 14 7 13° CC..0602.. M2.5 5 Q08 C10M-SCKCR/L06 13 10 6 150 17 9 12° CC..0602.. M2.5 5 Q08 C12Q-SCKCR/L06 16 12 7 180 20 11 10° CC..0602.. M2.5 6 Q08 C12Q-SCKCR/L09 16 12 8 180 20 11 12° CC..09T3.. M3.5 8 Q15 C16R-SCKCR/L09 20 16 9.5 200 27 15 10° CC..09T3.. M3.5 8 Q15 C20S-SCKCR/L09 24 20 11.5 250 34 18 8° CC..09T3.. M3.5 8 Q15 S08K-SCKPR/L06 10 8 5.5 125 14 7 10° CP..0602.. M2.5 5 Q08 S10K-SCKPR/L06 13 10 6 125 17 9 8° CP..0602.. M2.5 5 Q08 S12M-SCKPR/L06 16 12 7 150 20 11 6° CP..0602.. M2.5 6 Q08 S10K-SCKPR/L08 13 10 7 125 17 9 10° CP..0802.. M3 6 Q08 S12M-SCKPR/L08 16 12 7.5 150 20 11 8° CP..0802.. M3 6 Q08 S16N-SCKPR/L08 20 16 9.5 160 27 15 6° CP..0802.. M3 6 Q08 S12M-SCKPR/L09 16 12 8 150 20 11 8° CP..0903.. M3.5 7 Q15 S16N-SCKPR/L09 20 16 9.5 160 27 15 6° CP..0903.. M3.5 8 Q15 S20Q-SCKPR/L09 24 20 11.5 180 34 18 4° CP..0903.. M3.5 8 Q15 S25R-SCKPR/L09 31 25 14 200 43 23 4° CP..0903.. M3.5 8 Q15 nTM fflr- See next page = H DEREK
