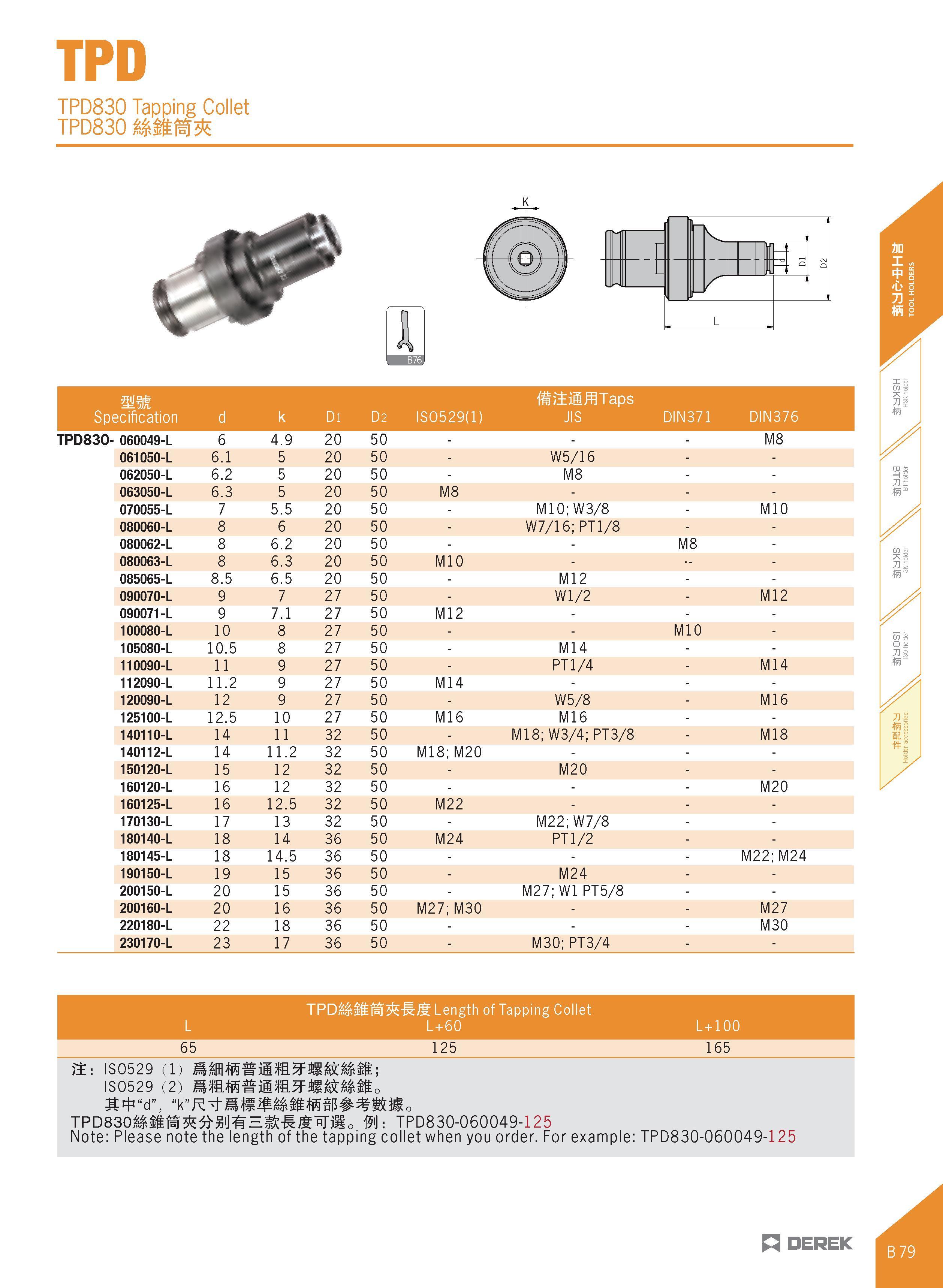

TPD TPD830 Tapping Collet tpd83o %mn i mm Specification d k Di D2 IS0529(1) fitj±iIfflTaps JIS DIN371 DIN376 TPD830- 060049-L 6 4.9 20 50 - M8 061050-L 6.1 5 20 50 - W5/16 062050-L 6.2 5 20 50 - M8 063050-L 6.3 5 20 50 M8 - 070055-L 7 5.5 20 50 - M10; W3/8 - M10 080060-L 8 6 20 50 - W7/16; PT1/8 080062-L 8 6.2 20 50 M8 - 080063-L 8 6.3 20 50 M10 - 085065-L 8.5 6.5 20 50 - M12 090070-L 9 7 27 50 - Wl/2 - M12 090071-L 9 7.1 27 50 M12 - 100080-L 10 8 27 50 M10 - 105080-L 10.5 8 27 50 - M14 110090-L 11 9 27 50 - PT1/4 - M14 112090-L 11.2 9 27 50 M14 - 120090-L 12 9 27 50 - W5/8 - M16 125100-L 12.5 10 27 50 M16 M16 140110-L 14 11 32 50 - Ml8; W3/4; PT3/8 - M18 140112-L 14 11.2 32 50 M18; M20 - 150120-L 15 12 32 50 - M20 160120-L 16 12 32 50 - M20 160125-L 16 12.5 32 50 M22 - 170130-L 17 13 32 50 - M22; W7/8 180140-L 18 14 36 50 M24 PT1/2 180145-L 18 14.5 36 50 - M22; M24 190150-L 19 15 36 50 - M24 200150-L 20 15 36 50 - M27; WI PT5/8 200160-L 20 16 36 50 M27; M30 M27 220180-L 22 18 36 50 - M30 230170-L 23 17 36 50 - M30; PT3/4 A TPD&Mf Length of Tapping Collet L L+60 L+100 65 125 165 j±: IS0529 (1) ; IS0529 (2) TPD83OMiiM& 30W = mjtnT3llo M: TPD830-060049-125 Note: Please note the length of the tapping collet when you order. For example: TPD830-060049-125 nDEREK
