189 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B77

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B77 0189 Lab2u

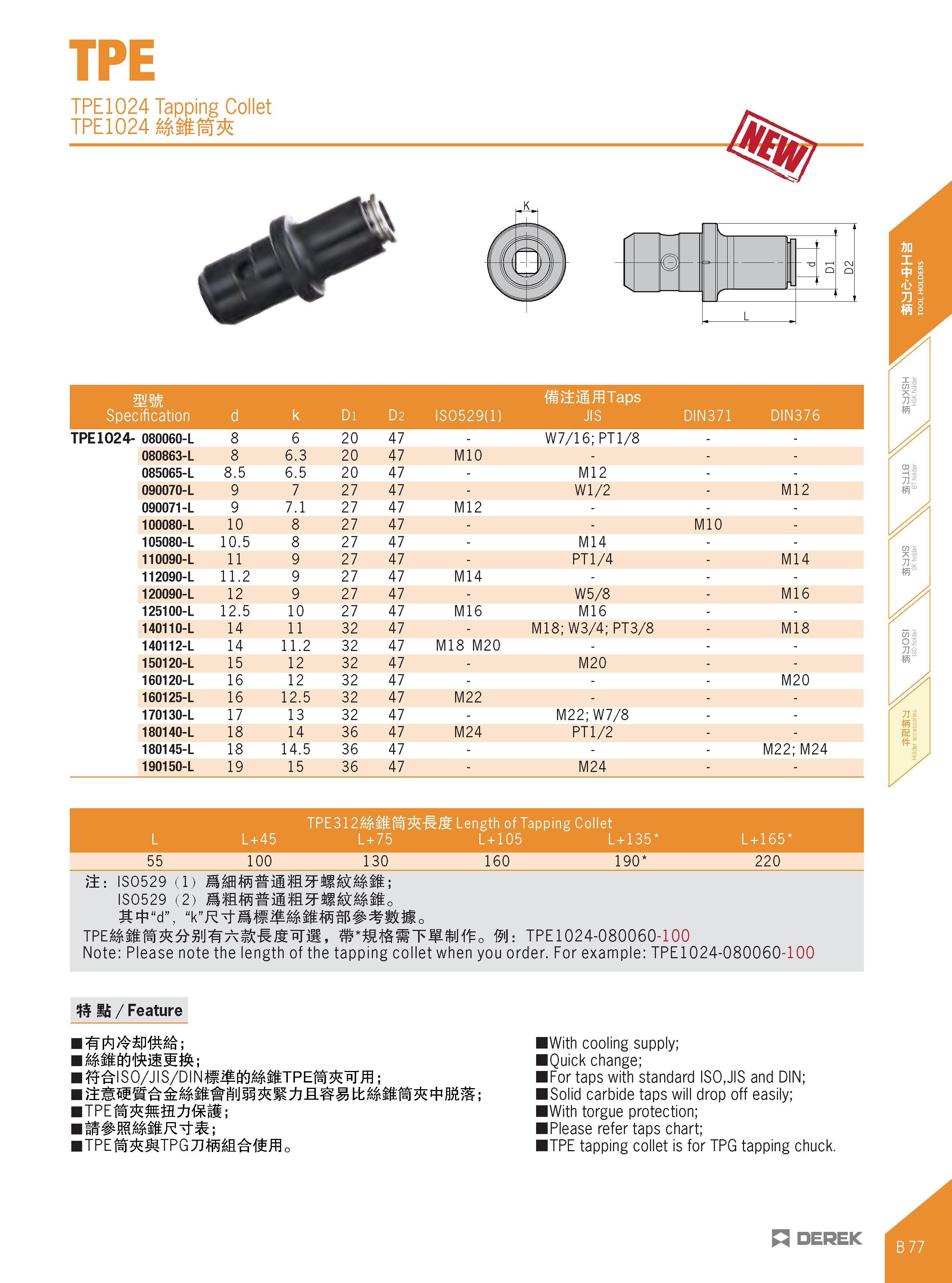

TPE TPE1024 Tapping Collet TPE1024 &ffm + ,k n - TD J O D2 „ L mm Specification d k Di D2 IS0529(1) fitj±iifflTaps JIS DIN371 DIN376 TPE 1024- 080060-L 8 6 20 47 - W7/16; PT1/8 080863-L 8 6.3 20 47 M10 - 085065-L 8.5 6.5 20 47 - M12 090070-L 9 7 27 47 - Wl/2 - M12 090071-L 9 7.1 27 47 M12 - 100080-L 10 8 27 47 M10 - 105080-L 10.5 8 27 47 - M14 110090-L 11 9 27 47 - PT1/4 - M14 112090-L 11.2 9 27 47 M14 - 120090-L 12 9 27 47 - W5/8 - M16 125100-L 12.5 10 27 47 M16 M16 140110-L 14 11 32 47 - M18; W3/4; PT3/8 - M18 140112-L 14 11.2 32 47 M18 M20 - 150120-L 15 12 32 47 - M20 160120-L 16 12 32 47 - M20 160125-L 16 12.5 32 47 M22 - 170130-L 17 13 32 47 - M22; W7/8 180140-L 18 14 36 47 M24 PT1/2 180145-L 18 14.5 36 47 - M22; M24 190150-L 19 15 36 47 - M24 TPE312&MILength of Tapping Collet L L+45 L+75 L+105 L+135 L+165 55 100 130 160 190 220 it: 1S0529 cl) mmmmmmifmmM; IS0529 (2) TPEMiiM& yWAMJtnTji, m-. TPE 1024-080060-100 Note: Please note the length of the tapping collet when you order. For example: TPE 1024-080060-100 S li / Feature IWith cooling supply; IQuick change; IFor taps with standard IS0,JIS and DIN; ISolid carbide taps will drop off easily; IWith torgue protection; I Please refer taps chart; ITPE tapping collet is for TPG tapping chuck. ZZ DEPEK
