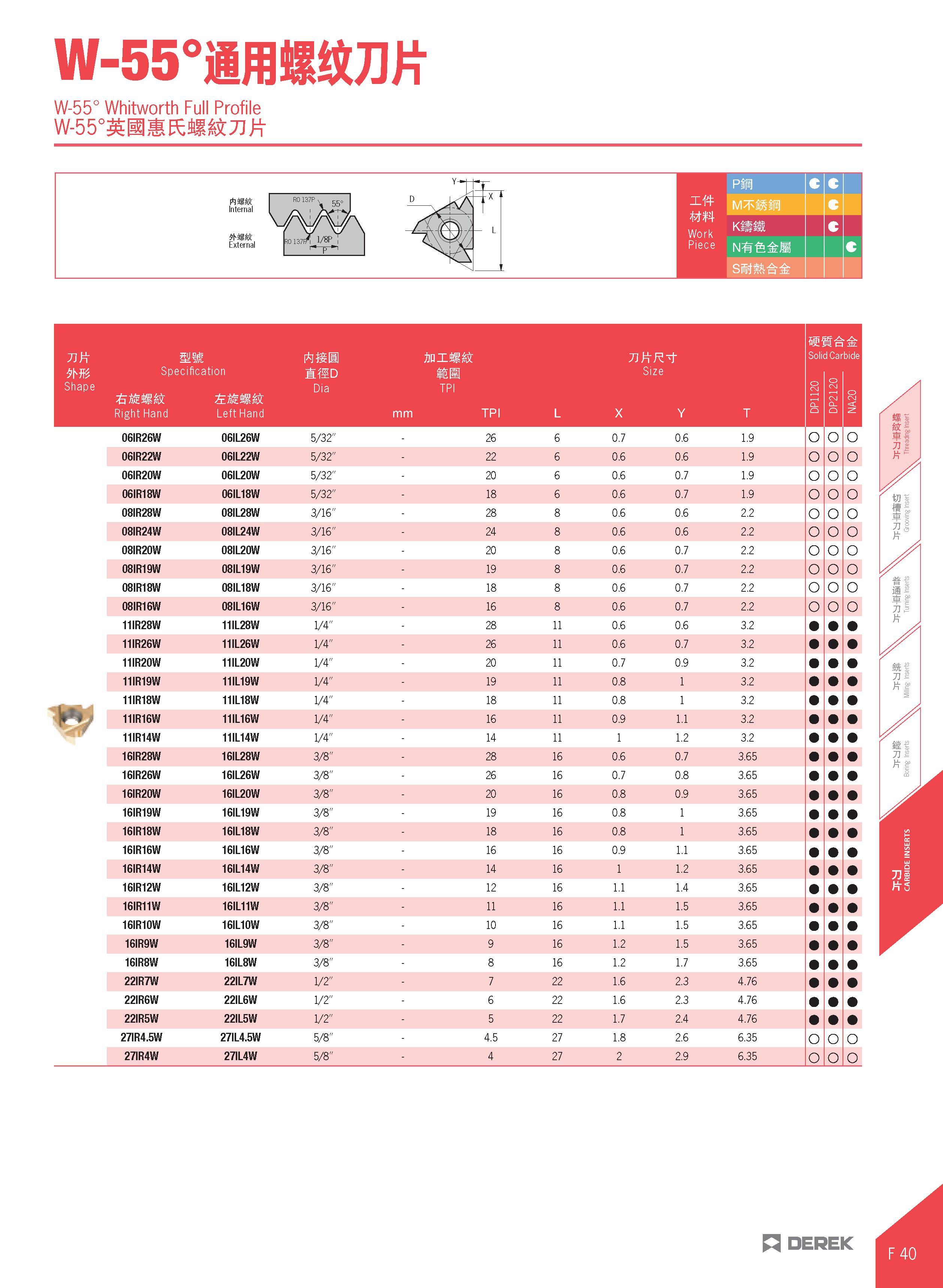

457 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.F40

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. F40 0457 Lab2u

W-55° f g 7 W-55° Whitworth Full Profile Myitis Work Piece NWfefeS MM Specification Si jraiifSt ffill TPI Size Right Hand Left Hand mm TPI L X Y T 06IR26W 06IL26W 5/32" 26 6 0.7 0.6 1.9 o 06IR22W 06IL22W 5/32" 22 6 0.6 0.6 1.9 o 06IR20W 06IL20W 5/32" 20 6 0.6 0.7 1.9 o 06IR18W 06IL18W 5/32" 18 6 0.6 0.7 1.9 o 08IR28W 08IL28W 3/16" 28 8 0.6 0.6 2.2 o 08IR24W 08IL24W 3/16" 24 8 0.6 0.6 2.2 o 08IR20W 08IL20W 3/16" 20 8 0.6 0.7 2.2 o 08IR19W 08IL19W 3/16" 19 8 0.6 0.7 2.2 o 08IR18W 08IL18W 3/16" 18 8 0.6 0.7 2.2 o 08IR16W 08IL16W 3/16" 16 8 0.6 0.7 2.2 o 11IR28W 11IL28W 1/4" 28 11 0.6 0.6 3.2 11IR26W 11IL26W 1/4" 26 11 0.6 0.7 3.2 11IR20W 11IL20W 1/4" 20 11 0.7 0.9 3.2 11IR19W 11IL19W 1/4" 19 11 0.8 1 3.2 11IR18W 11IL18W 1/4" 18 11 0.8 1 3.2 11IR16W 11IL16W 1/4" 16 11 0.9 1.1 3.2 11IR14W 11IL14W 1/4" 14 11 1 1.2 3.2 16IR28W 16IL28W 3/8" 28 16 0.6 0.7 3.65 16IR26W 16IL26W 3/8" 26 16 0.7 0.8 3.65 16IR20W 16IL20W 3/8" 20 16 0.8 0.9 3.65 16IR19W 16IL19W 3/8" 19 16 0.8 1 3.65 16IR18W 16IL18W 3/8" 18 16 0.8 1 3.65 16IR16W 16IL16W 3/8" 16 16 0.9 1.1 3.65 16IR14W 16IL14W 3/8" 14 16 1 1.2 3.65 16IR12W 16IL12W 3/8" 12 16 1.1 1.4 3.65 16IR11W 16IL11W 3/8" 11 16 1.1 1.5 3.65 16IR10W 16IL10W 3/8" 10 16 1.1 1.5 3.65 16IR9W 16IL9W 3/8" 9 16 1.2 1.5 3.65 16IR8W 16IL8W 3/8" 8 16 1.2 1.7 3.65 22IR7W 22IL7W 1/2" 7 22 1.6 2.3 4.76 22IR6W 22IL6W 1/2" 6 22 1.6 2.3 4.76 22IR5W 22IL5W 1/2" 5 22 1.7 2.4 4.76 27IR4.5W 27IL4.5W 5/8" 4.5 27 1.8 2.6 6.35 o 27IR4W 27IL4W 5/8" 4 27 2 2.9 6.35 o H DEREK
