455 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.F38

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. F38 0455 Lab2u

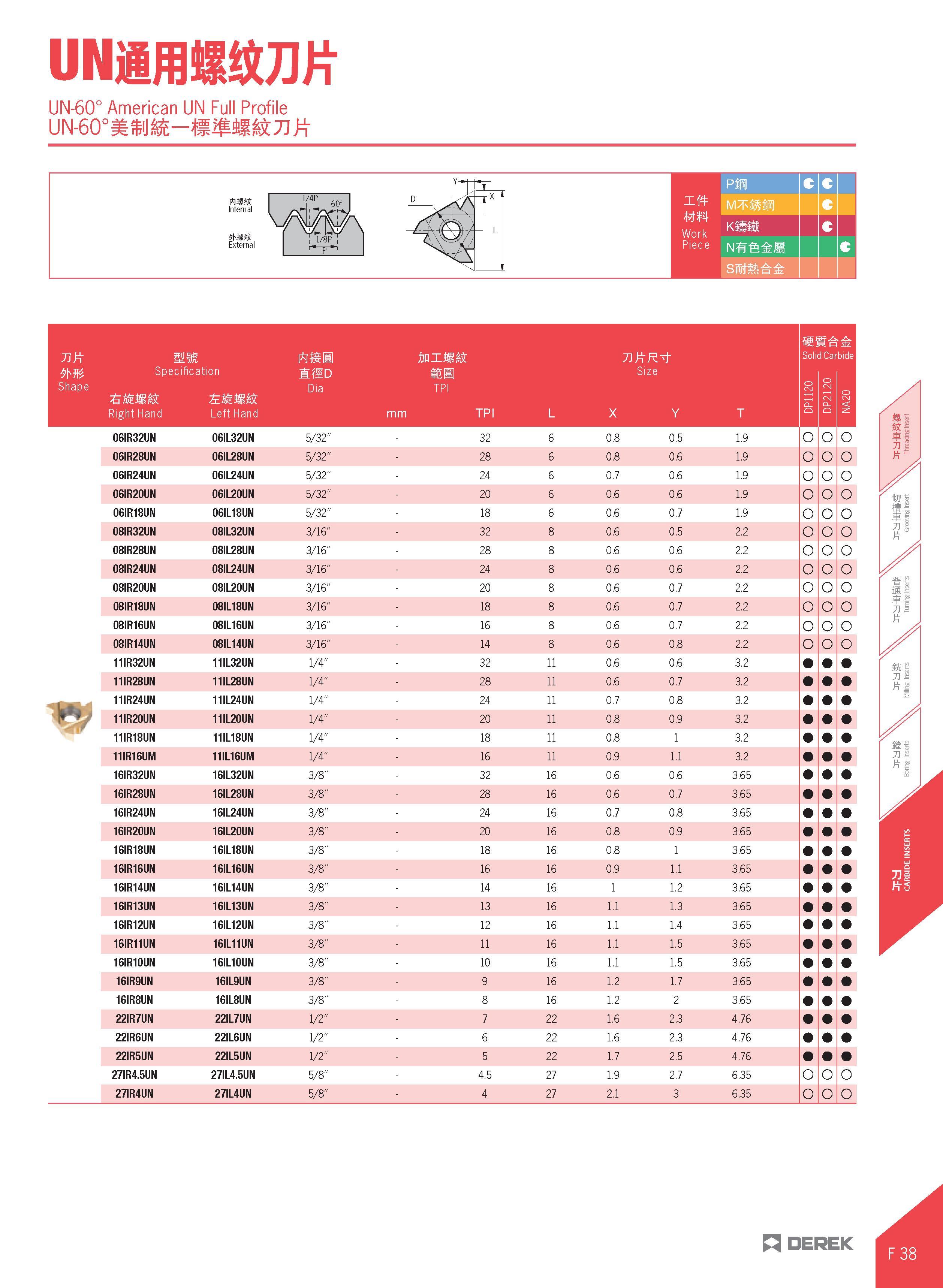

UNIfflHSOIK UN-60° American UN Full Profile PiB M MiB mm MM Specification Size w Right Hand Left Hand mm TPI L X Y T 06IR32UN 06IL32UN 5/32" 32 6 0.8 0.5 1.9 o 06IR28UN 06IL28UN 5/32" 28 6 0.8 0.6 1.9 o 06IR24UN 06IL24UN 5/32" 24 6 0.7 0.6 1.9 o 06IR20UN 06IL20UN 5/32" 20 6 0.6 0.6 1.9 o 06IR18UN 06IL18UN 5/32" 18 6 0.6 0.7 1.9 o 08IR32UN 08IL32UN 3/16" 32 8 0.6 0.5 2.2 o 08IR28UN 08IL28UN 3/16" 28 8 0.6 0.6 2.2 o 08IR24UN 08IL24UN 3/16" 24 8 0.6 0.6 2.2 o 08IR20UN 08IL20UN 3/16" 20 8 0.6 0.7 2.2 o 08IR18UN 08IL18UN 3/16" 18 8 0.6 0.7 2.2 o 08IR16UN 08IL16UN 3/16" 16 8 0.6 0.7 2.2 o 08IR14UN 08IL14UN 3/16" 14 8 0.6 0.8 2.2 o 11IR32UN 11IL32UN 1/4" 32 11 0.6 0.6 3.2 11IR28UN 11IL28UN 1/4" 28 11 0.6 0.7 3.2 11IR24UN 11IL24UN 1/4" 24 11 0.7 0.8 3.2 11IR20UN 11IL20UN 1/4" 20 11 0.8 0.9 3.2 11IR18UN 11IL18UN 1/4" 18 11 0.8 1 3.2 11IR16UM 11IL16UM 1/4" 16 11 0.9 1.1 3.2 16IR32UN 16IL32UN 3/8" 32 16 0.6 0.6 3.65 16IR28UN 16IL28UN 3/8" 28 16 0.6 0.7 3.65 16IR24UN 16IL24UN 3/8" 24 16 0.7 0.8 3.65 16IR20UN 16IL20UN 3/8" 20 16 0.8 0.9 3.65 16IR18UN 16IL18UN 3/8" 18 16 0.8 1 3.65 16IR16UN 16IL16UN 3/8" 16 16 0.9 1.1 3.65 16IR14UN 16IL14UN 3/8" 14 16 1 1.2 3.65 16IR13UN 16IL13UN 3/8" 13 16 1.1 1.3 3.65 16IR12UN 16IL12UN 3/8" 12 16 1.1 1.4 3.65 16IR11UN 16IL11UN 3/8" 11 16 1.1 1.5 3.65 16IR10UN 16IL10UN 3/8" 10 16 1.1 1.5 3.65 16IR9UN 16IL9UN 3/8" 9 16 1.2 1.7 3.65 16IR8UN 16IL8UN 3/8" 8 16 1.2 2 3.65 22IR7UN 22IL7UN 1/2" 7 22 1.6 2.3 4.76 22IR6UN 22IL6UN 1/2" 6 22 1.6 2.3 4.76 22IR5UN 22IL5UN 1/2" 5 22 1.7 2.5 4.76 27IR4.5UN 27IL4.5UN 5/8" 4.5 27 1.9 2.7 6.35 o 27IR4UN 27IL4UN 5/8" 4 27 2.1 3 6.35 o H DEREK
