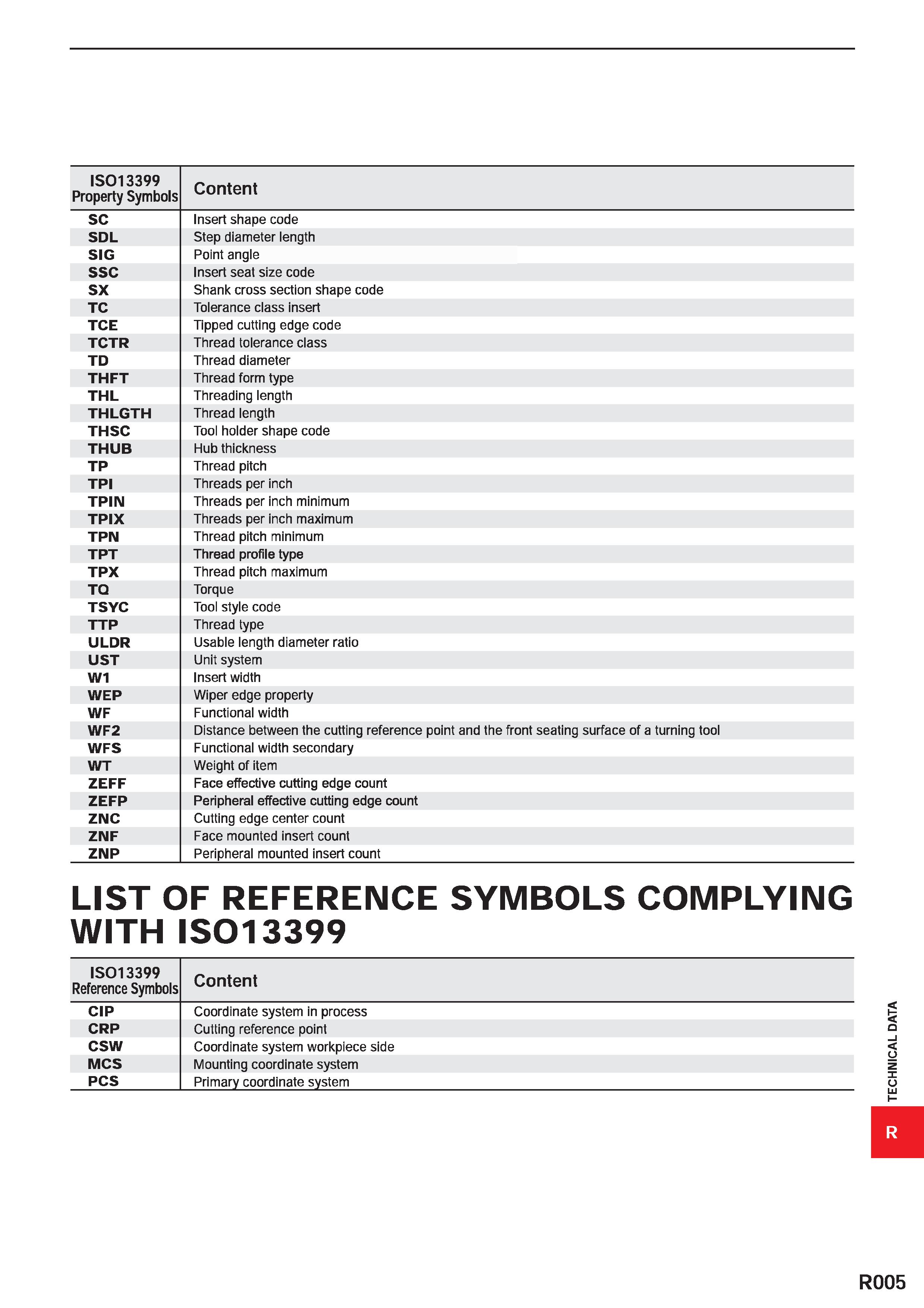

IS013399 Property Symbols Content SC Insert shape code SDL Step diameter length SIG Point angle SSC Insert seat size code SX Shank cross section shape code TC Tolerance class insert TCE Tipped cutting edge code TCTR Thread tolerance class TD Thread diameter THFT Thread form type THL Threading length THLGTH Thread length THSC Tool holder shape code THUB Hub thickness TP Thread pitch TPI Threads per inch TPIN Threads per inch minimum TPIX Threads per inch maximum TPN Thread pitch minimum TPT Thread profile type TPX Thread pitch maximum TQ Torque TSYC Tool style code TTP Thread type ULDR Usable length diameter ratio UST Unit system W1 Insert width WEP Wiper edge property WF Functional width WF2 Distance between the cutting reference point and the front seating surface of a turning tool WFS Functional width secondary WT Weight of item ZEFF Face effective cutting edge count ZEFP Peripheral effective cutting edge count ZNC Cutting edge center count ZNF Face mounted insert count ZNP Peripheral mounted insert count LIST OF REFERENCE SYMBOLS COMPLYING WITH IS013399 IS013399 Reference Symbols Content CIP Coordinate system in process CRP Cutting reference point CSW Coordinate system workpiece side MCS Mounting coordinate system PCS Primary coordinate system R R005 TECHNICAL DATA
