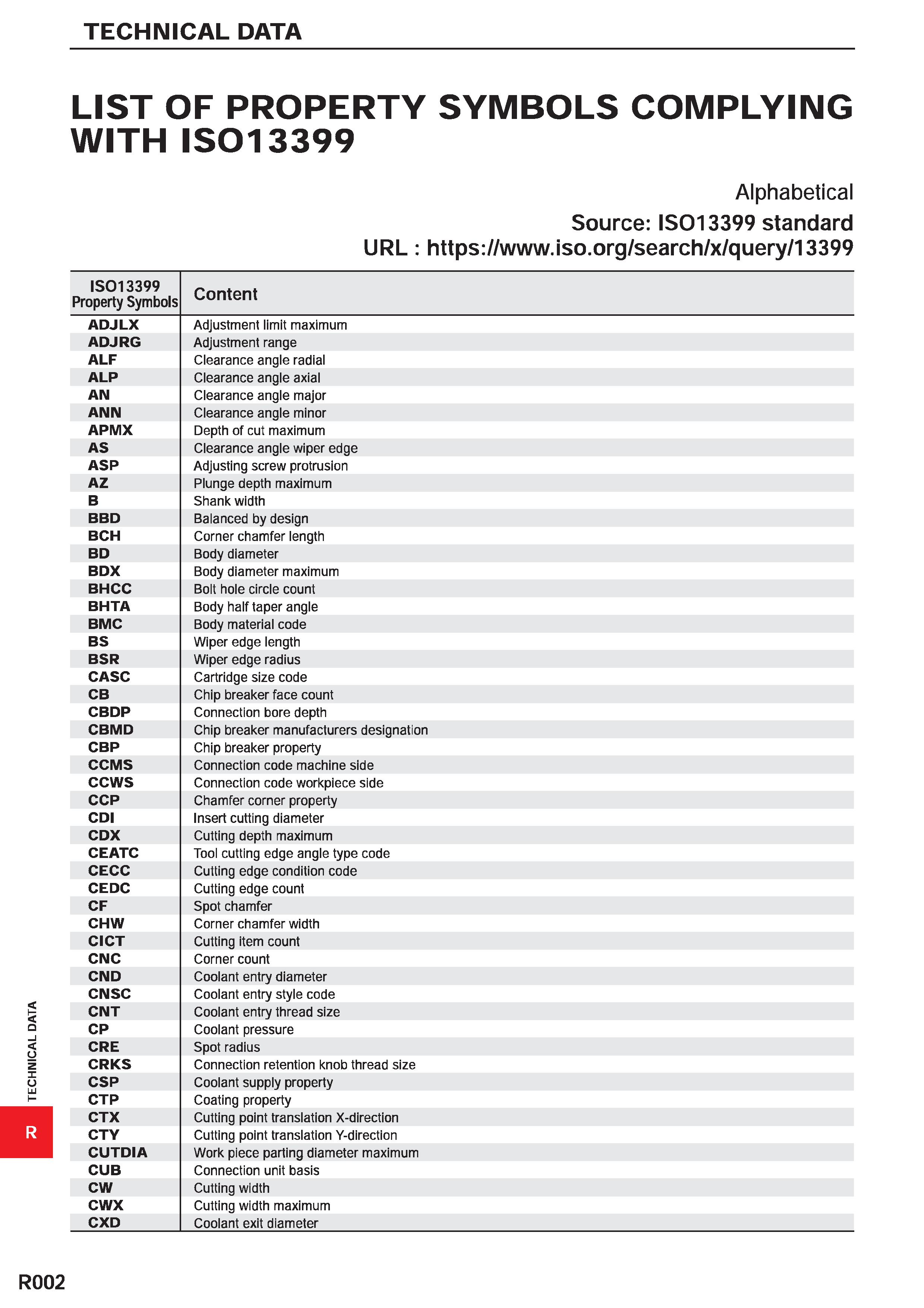

TECHNICAL DATA LIST OF PROPERTY SYMBOLS COMPLYING WITH IS013399 Alphabetical Source: IS013399 standard URL: https://www.iso.Org/search/x/query/13399 IS013399 Property Symbols Content ADJLX Adjustment limit maximum ADJRG Adjustment range ALF Clearance angle radial ALP Clearance angle axial AN Clearance angle major ANN Clearance angle minor APMX Depth of cut maximum AS Clearance angle wiper edge ASP Adjusting screw protrusion AZ Plunge depth maximum B Shank width BBD Balanced by design BCH Corner chamfer length BD Body diameter BDX Body diameter maximum BHCC Bolt hole circle count BHTA Body half taper angle BMC Body material code BS Wiper edge length BSR Wiper edge radius CASC Cartridge size code CB Chip breaker face count CBDP Connection bore depth CBMD Chip breaker manufacturers designation CBP Chip breaker property CCMS Connection code machine side CCWS Connection code workpiece side CCP Chamfer corner property CDI Insert cutting diameter CDX Cutting depth maximum CEATC Tool cutting edge angle type code CECC Cutting edge condition code CEDC Cutting edge count CF Spot chamfer CHW Corner chamfer width CICT Cutting item count CNC Corner count CND Coolant entry diameter CNSC Coolant entry style code CNT Coolant entry thread size CP Coolant pressure CRE Spot radius CRKS Connection retention knob thread size CSP Coolant supply property CTP Coating property CTX Cutting point translation X-direction CTY Cutting point translation Y-direction CUTDIA Work piece parting diameter maximum CUB Connection unit basis CW Cutting width CWX Cutting width maximum CXD Coolant exit diameter R002
