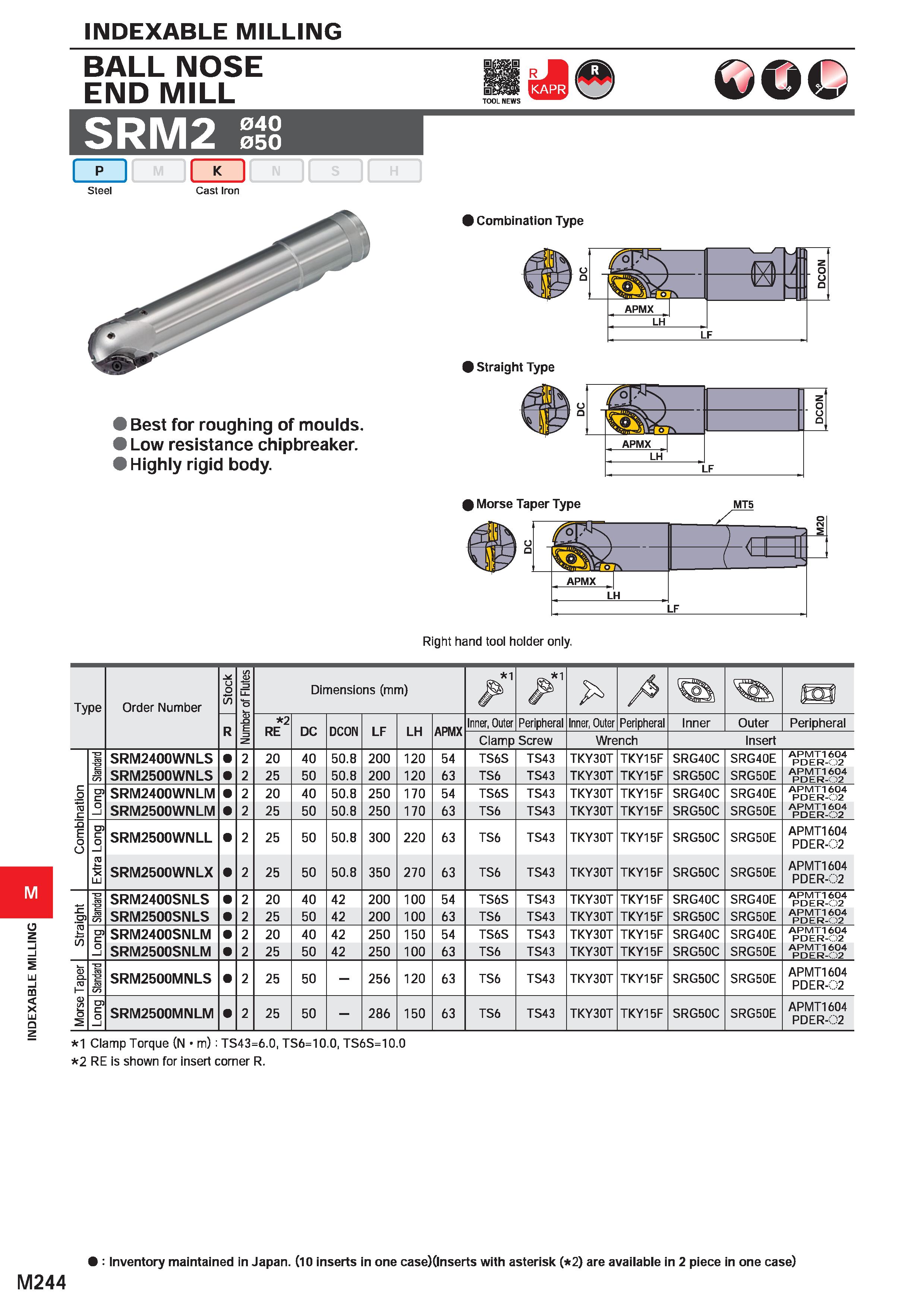

INDEXABLE MILLING INDEXABLE MILLING BALL NOSE END MILL SRM2 S£ co Steel Cast Iron Best for roughing of moulds. > Low resistance chipbreaker. 'Highly rigid body. 9 Combination Type 9 Straight Type IJ r J \ IV\ / z . Q \A) APMX LH LF z Q APMX LH LF Right hand tool holder only. Type Order Number Stock Number of Flutes Dimensions (mm) J -l P A R 2 RE DC DCON LF LH APMX Inner, Outer Peripheral Inner, Outer Peripheral Inner Outer Peripheral Clamp Screw Wrench Insert SRM2400WNLS 2 20 40 50.8 200 120 54 TS6S TS43 TKY30T TKY15F SRG40C SRG40E APMT1 604 PDER-02 c o 75 SRM2500WIMLS 2 25 50 50.8 200 120 63 TS6 TS43 TKY30T TKY15F SRG50C SRG50E APMT1 604 PDER-02 03 SRM2400WNLM 2 20 40 50.8 250 170 54 TS6S TS43 TKY30T TKY15F SRG40C SRG40E APMT1 604 PDER-02 TO c -Q £ O l SRM2500WNLM 2 25 50 50.8 250 170 63 TS6 TS43 TKY30T TKY15F SRG50C SRG50E APMT1 604 PDER-02 03 C o J SRM2500WNLL 2 25 50 50.8 300 220 63 TS6 TS43 TKY30T TKY15F SRG50C SRG50E APMT1604 PDER-02 CO t X LU SRM2500WNLX 2 25 50 50.8 350 270 63 TS6 TS43 TKY30T TKY15F SRG50C SRG50E APMT1604 PDER-02 SRM2400SNLS 2 20 40 42 200 100 54 TS6S TS43 TKY30T TKY15F SRG40C SRG40E APMT1 604 PDER-02 Straigh 75 SRM2500SNLS 2 25 50 42 200 100 63 TS6 TS43 TKY30T TKY15F SRG50C SRG50E APMT1 604 PDER-02 03 C SRM2400SNLM 2 20 40 42 250 150 54 TS6S TS43 TKY30T TKY15F SRG40C SRG40E APMT1 604 PDER-02 a i SRM2500SNLM 2 25 50 42 250 100 63 TS6 TS43 TKY30T TKY15F SRG50C SRG50E APMT1 604 PDER-02 Morse Taper Standard SRM2500MNLS 2 25 50 - 256 120 63 TS6 TS43 TKY30T TKY15F SRG50C SRG50E APMT1604 PDER-02 I Long SRM2500MNLM 2 25 50 - 286 150 63 TS6 TS43 TKY30T TKY15F SRG50C SRG50E APMT1604 PDER-02 1 Clamp Torque (N m): TS43=6.0, TS6=10.0, TS6S=10.0 2 RE is shown for insert corner R. : Inventory maintained in Japan. (10 inserts in one case)(lnserts with asterisk ( 2) are available in 2 piece in one case) M244
