1398 Каталог MITSUBISHI 2020 Режущий инструмент Фрезы Резцы Сверла Пластины Стр.M242

Каталог MITSUBISHI 2020 Режущий инструмент для станков Стр. M242 1398 Lab2u

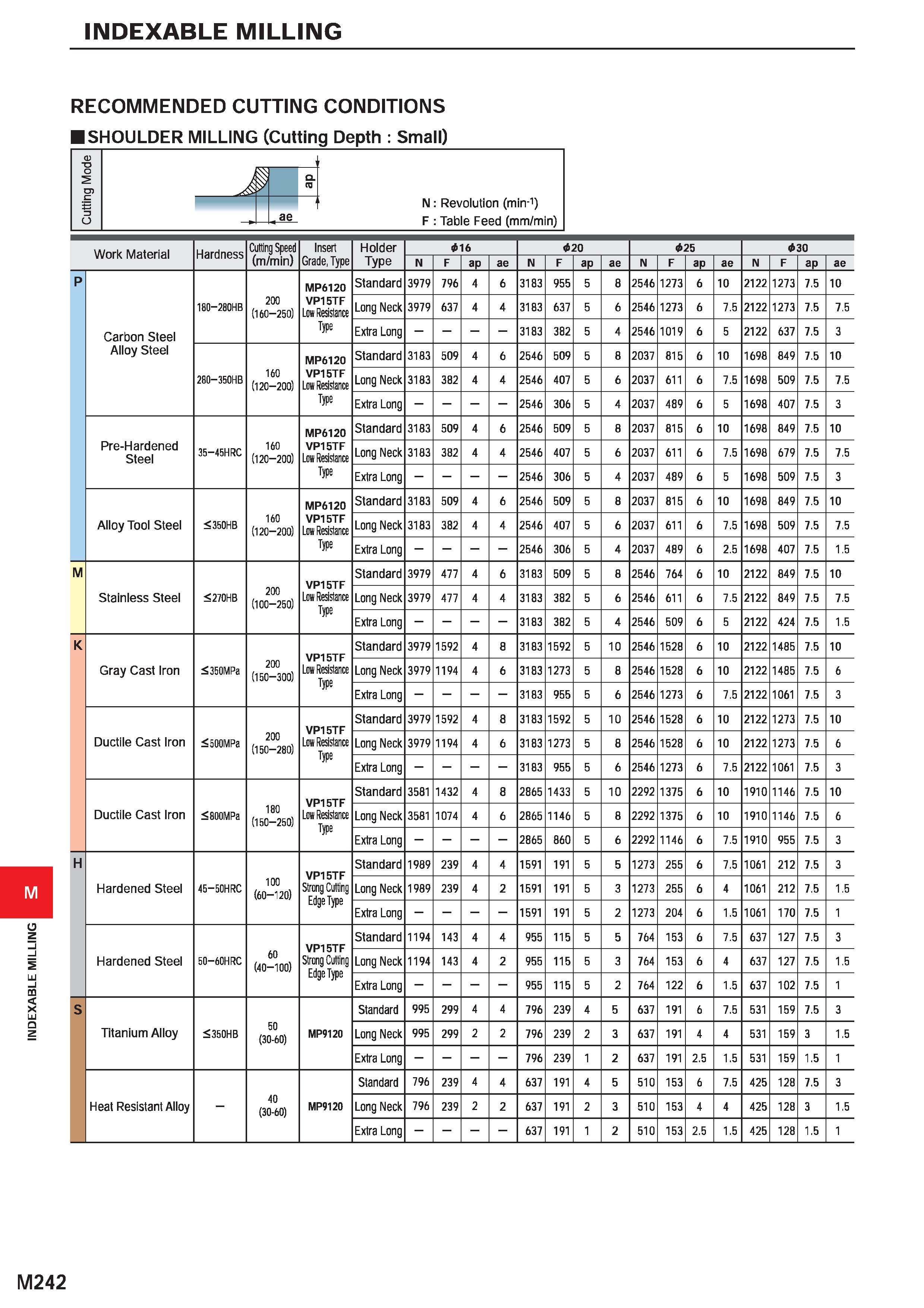

INDEXABLE MILLING INDEXABLE MILLING RECOMMENDED CUTTING CONDITIONS SHOULDER MILLING (Cutting Depth : Small) D O cn j Q. TO N: Revolution (mirr1) O - ae F : Table Feed (mm/min) INDEXABLE MILLING Work Material Hardness Cutting Speed (m/min) Insert Grade, Type Holder Type 16 420 625 430 N F ap ae N F ap ae N F ap ae N F ap ae P Carbon Steel Alloy Steel 180 280HB 200 (160-250) MP6120 VP15TF Low Resistance Type Standard 3979 796 4 6 3183 955 5 8 2546 1273 6 10 2122 1273 7.5 10 Long Neck 3979 637 4 4 3183 637 5 6 2546 1273 6 7.5 2122 1273 7.5 7.5 Extra Long 3183 382 5 4 2546 1019 6 5 2122 637 7.5 3 280-350HB 160 (120-200) MP6120 VP15TF Low Resistance Type Standard 3183 509 4 6 2546 509 5 8 2037 815 6 10 1698 849 7.5 10 Long Neck 3183 382 4 4 2546 407 5 6 2037 611 6 7.5 1698 509 7.5 7.5 Extra Long 2546 306 5 4 2037 489 6 5 1698 407 7.5 3 Pre-Hardened Steel 35-45HRC 160 (120-200) MP6120 VP15TF Low Resistance Type Standard 3183 509 4 6 2546 509 5 8 2037 815 6 10 1698 849 7.5 10 Long Neck 3183 382 4 4 2546 407 5 6 2037 611 6 7.5 1698 679 7.5 7.5 Extra Long 2546 306 5 4 2037 489 6 5 1698 509 7.5 3 Alloy Tool Steel 350HB 160 (120-200) MP6120 VP15TF Low Resistance Type Standard 3183 509 4 6 2546 509 5 8 2037 815 6 10 1698 849 7.5 10 Long Neck 3183 382 4 4 2546 407 5 6 2037 611 6 7.5 1698 509 7.5 7.5 Extra Long 2546 306 5 4 2037 489 6 2.5 1698 407 7.5 1.5 M Stainless Steel 270HB 200 (100-250) VP15TF Low Resistance Type Standard 3979 477 4 6 3183 509 5 8 2546 764 6 10 2122 849 7.5 10 Long Neck 3979 477 4 4 3183 382 5 6 2546 611 6 7.5 2122 849 7.5 7.5 Extra Long 3183 382 5 4 2546 509 6 5 2122 424 7.5 1.5 K Gray Cast Iron 350MPa 200 (150-300) VP15TF Low Resistance Type Standard 3979 1592 4 8 3183 1592 5 10 2546 1528 6 10 2122 1485 7.5 10 Long Neck 3979 1194 4 6 3183 1273 5 8 2546 1528 6 10 2122 1485 7.5 6 Extra Long 3183 955 5 6 2546 1273 6 7.5 2122 1061 7.5 3 Ductile Cast Iron 500MPa 200 (150-280) VP15TF Low Resistance Type Standard 3979 1592 4 8 3183 1592 5 10 2546 1528 6 10 2122 1273 7.5 10 Long Neck 3979 1194 4 6 3183 1273 5 8 2546 1528 6 10 2122 1273 7.5 6 Extra Long 3183 955 5 6 2546 1273 6 7.5 2122 1061 7.5 3 Ductile Cast Iron 800MPa 180 (150-250) VP15TF Low Resistance Type Standard 3581 1432 4 8 2865 1433 5 10 2292 1375 6 10 1910 1146 7.5 10 Long Neck 3581 1074 4 6 2865 1146 5 8 2292 1375 6 10 1910 1146 7.5 6 Extra Long 2865 860 5 6 2292 1146 6 7.5 1910 955 7.5 3 H Hardened Steel 45-50HRC 100 (60-120) VP15TF Strong Cutting Edge Type Standard 1989 239 4 4 1591 191 5 5 1273 255 6 7.5 1061 212 7.5 3 Long Neck 1989 239 4 2 1591 191 5 3 1273 255 6 4 1061 212 7.5 1.5 Extra Long 1591 191 5 2 1273 204 6 1.5 1061 170 7.5 1 Hardened Steel 50-60HRC 60 (40-100) VP15TF Strong Cutting Edge Type Standard 1194 143 4 4 955 115 5 5 764 153 6 7.5 637 127 7.5 3 Long Neck 1194 143 4 2 955 115 5 3 764 153 6 4 637 127 7.5 1.5 Extra Long 955 115 5 2 764 122 6 1.5 637 102 7.5 1 S Titanium Alloy 350HB 50 (30-60) MP9120 Standard 995 299 4 4 796 239 4 5 637 191 6 7.5 531 159 7.5 3 Long Neck 995 299 2 2 796 239 2 3 637 191 4 4 531 159 3 1.5 Extra Long 796 239 1 2 637 191 2.5 1.5 531 159 1.5 1 Heat Resistant Alloy - 40 (30-60) MP9120 Standard 796 239 4 4 637 191 4 5 510 153 6 7.5 425 128 7.5 3 Long Neck 796 239 2 2 637 191 2 3 510 153 4 4 425 128 3 1.5 Extra Long 637 191 1 2 510 153 2.5 1.5 425 128 1.5 1 M242
