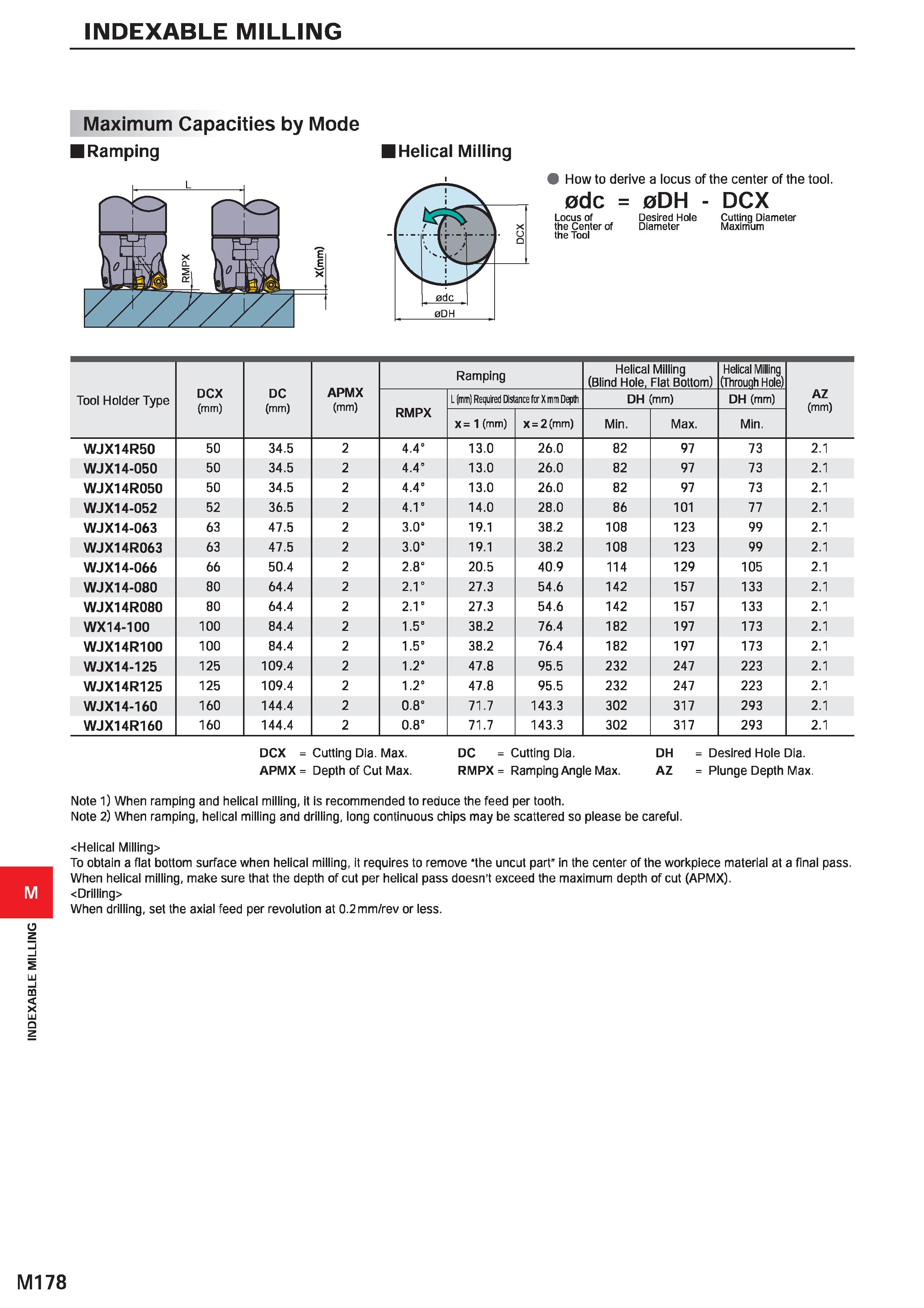

INDEXABLE MILLING INDEXABLE MILLING Maximum Capacities by Mode IRamping Helical Milling .... 'f I-1 ; \ V j - DCX i 0dc 0DH How to derive a locus of the center of the tool. 0dc = 0DH - DCX Locus of Desired Hole Cutting Diameter the Center of Diameter Maximum the Tool Tool Holder Type DCX (mm) DC (mm) APMX (mm) Ramping Helical Milling (Blind Hole, Flat Bottom) Helical Milling (Throuqh Hole) AZ (mm) RMPX L (mm) Required Distance for X mm Depth DH (mm) DH (mm) X = 1 (mm) X = 2 (mm) Min. Max. Min. WJX14R50 50 34.5 2 4.4° 13.0 26.0 82 97 73 2.1 WJX14-050 50 34.5 2 4.4” 13.0 26.0 82 97 73 2.1 WJX14R050 50 34.5 2 4.4° 13.0 26.0 82 97 73 2.1 WJX14-052 52 36.5 2 4.1° 14.0 28.0 86 101 77 2.1 WJX14-063 63 47.5 2 3.0° 19.1 38.2 108 123 99 2.1 WJX14R063 63 47.5 2 3.0° 19.1 38.2 108 123 99 2.1 WJX14-066 66 50.4 2 2.8° 20.5 40.9 114 129 105 2.1 WJX14-080 80 64.4 2 2.1° 27.3 54.6 142 157 133 2.1 WJX14R080 80 64.4 2 2.1° 27.3 54.6 142 157 133 2.1 WX14-100 100 84.4 2 1.5° 38.2 76.4 182 197 173 2.1 WJX14R100 100 84.4 2 1.5° 38.2 76.4 182 197 173 2.1 WJX14-125 125 109.4 2 1.2° 47.8 95.5 232 247 223 2.1 WJX14R125 125 109.4 2 1.2° 47.8 95.5 232 247 223 2.1 WJX14-160 160 144.4 2 0.8° 71.7 143.3 302 317 293 2.1 WJX14R160 160 144.4 2 0.8° 71.7 143.3 302 317 293 2.1 DCX = Cutting Dia. Max. DC = Cutting Dia. DH = Desired Hole Dia. APMX = Depth of Cut Max. RMPX= Ramping Angle Max. AZ = Plunge Depth Max. Note 1) When ramping and helical milling, it is recommended to reduce the feed per tooth. Note 2) When ramping, helical milling and drilling, long continuous chips may be scattered so please be careful. Helical Milling> DTo obtain a flat bottom surface when helical milling, it requires to remove "the uncut part” in the center of the workpiece material at a final pass. When helical milling, make sure that the depth of cut per helical pass doesn't exceed the maximum depth of cut (APMX). Drilling> When drilling, set the axial feed per revolution at 0.2 mm/rev or less. M178
