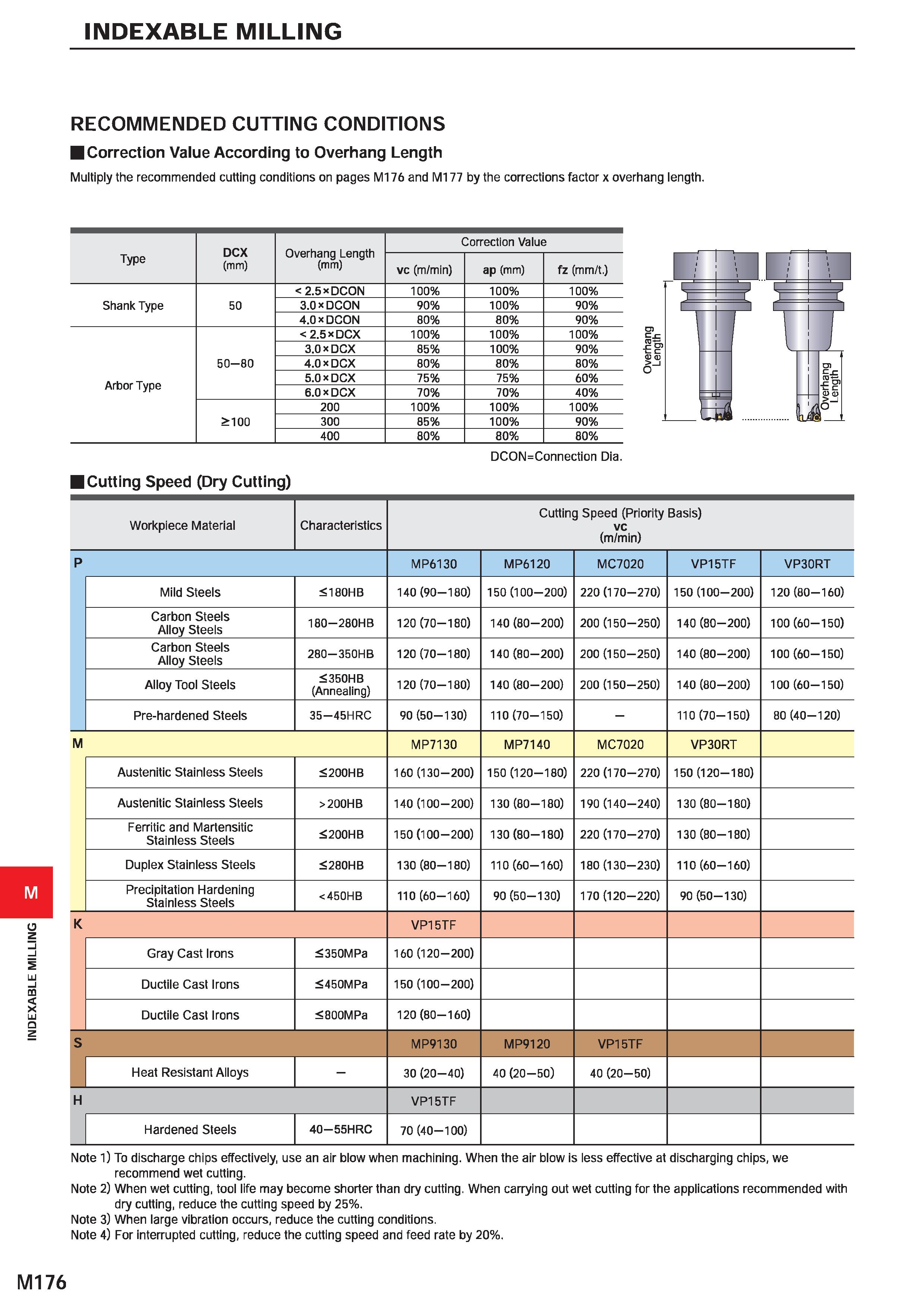

INDEXABLE MILLING INDEXABLE MILLING RECOMMENDED CUTTING CONDITIONS Correction Value According to Overhang Length Multiply the recommended cutting conditions on pages Ml 76 and Ml 77 by the corrections factor x overhang length. Type DCX (mm) Overhang Length (mm) Correction Value vc (m/min) ap (mm) fz (mm/t.) Shank Type 50 2.5 x DCON 100% 100% 100% 3.0 x DCON 90% 100% 90% 4.0 x DCON 80% 80% 90% Arbor Type 50-80 2.5 x DCX 100% 100% 100% 3.0 x DCX 85% 100% 90% 4.0 x DCX 80% 80% 80% 5.0 x DCX 75% 75% 60% 6.0 x DCX 70% 70% 40% >100 200 100% 100% 100% 300 85% 100% 90% 400 80% 80% 80% n b= f I CD 1 J ...L "E c a> d Jt- DCON=Connection Dia. I Cutting Speed (Dry Cutting) Workpiece Material Characteristics Cutting Speed (Priority Basis) vc (m/min) P MP6130 MP6120 MC7020 VP15TF VP30RT Mild Steels 180HB 140 (90-180) 150 (100-200) 220 (170-270) 150 (100-200) 120(80-160) Carbon Steels Alloy Steels 180 280HB 120(70-180) 140(80-200) 200 (150-250) 140(80-200) 100(60-150) Carbon Steels Alloy Steels 280 350HB 120 (70-180) 140 (80-200) 200 (150-250) 140 (80-200) 100 (60-150) Alloy Tool Steels 350HB (Annealing) 120 (70-180) 140 (80-200) 200 (150-250) 140 (80-200) 100 (60-150) Pre-hardened Steels 35 45HRC 90 (50-130) 110 (70-150) - 110 (70-150) 80 (40-120) M MP7130 MP7140 MC7020 VP30RT Austenitic Stainless Steels 200HB 160 (130-200) 150 (120-180) 220 (170-270) 150 (120-180) Austenitic Stainless Steels >200HB 140 (100-200) 130 (80-180) 190 (140-240) 130 (80-180) Ferritic and Martensitic Stainless Steels 200HB 150 (100-200) 130(80-180) 220 (170-270) 130(80-180) Duplex Stainless Steels 280HB 130 (80-180) 110(60-160) 180 (130-230) 110(60-160) Precipitation Hardening Stainless Steels 450HB 110 (60-160) 90(50-130) 170 (120-220) 90 (50-130) K VP15TF Gray Cast Irons 350MPa 160 (120-200) Ductile Cast Irons 450MPa 150 (100-200) Ductile Cast Irons 800MPa 120(80-160) S MP9130 MP9120 VP15TF Heat Resistant Alloys - 30 (20-40) 40 (20-50) 40 (20-50) H VP15TF Hardened Steels 40 55HRC 70(40-100) Note 1) To discharge chips effectively, use an air blow when machining. When the air blow is less effective at discharging chips, we recommend wet cutting. Note 2) When wet cutting, tool life may become shorter than dry cutting. When carrying out wet cutting for the applications recommended with dry cutting, reduce the cutting speed by 25%. Note 3) When large vibration occurs, reduce the cutting conditions. Note 4) For interrupted cutting, reduce the cutting speed and feed rate by 20%. M176
