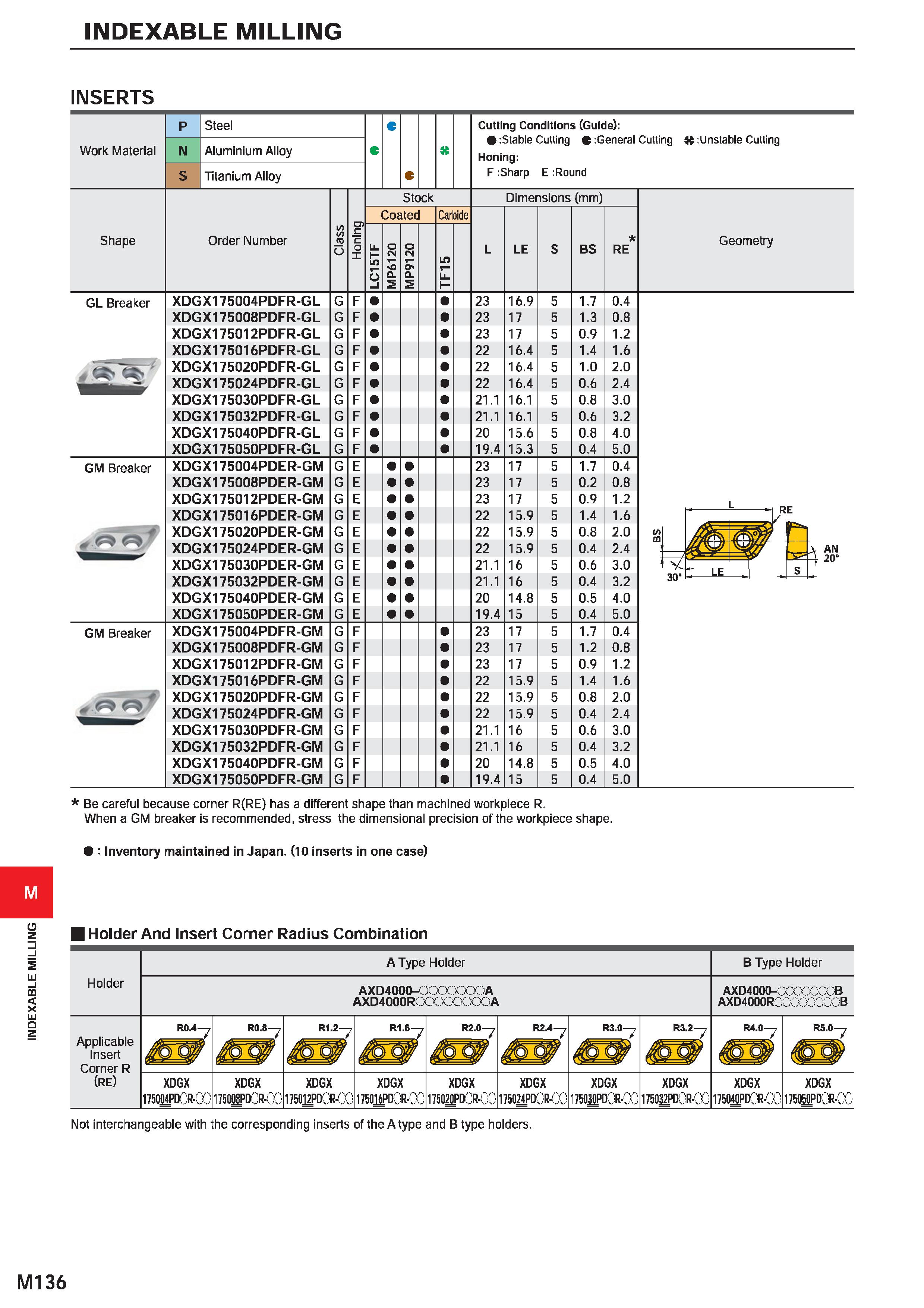

INDEXABLE MILLING INDEXABLE MILLING INSERTS Work Material N S Steel Aluminium Alloy Titanium Alloy Stock Dimensions (mm) Coated Carbide Shape Order Number Class Honinc LC15TF MP6120 MP9120 TF15 L LE S BS RE GL Breaker XDGX175004PDFR-GL G F 23 16.9 5 1.7 0.4 XDGX175008PDFR-GL G F 23 17 5 1.3 0.8 XDGX175012PDFR-GL G F 23 17 5 0.9 1.2 XDGX175016PDFR-GL G F 22 16.4 5 1.4 1.6 XDGX175020PDFR-GL G F 22 16.4 5 1.0 2.0 XDGX175024PDFR-GL G F 22 16.4 5 0.6 2.4 XDGX175030PDFR-GL G F 21.1 16.1 5 0.8 3.0 XDGX175032PDFR-GL G F 21.1 16.1 5 0.6 3.2 XDGX175040PDFR-GL G F 20 15.6 5 0.8 4.0 XDGX175050PDFR-GL G F 19.4 15.3 5 0.4 5.0 GM Breaker XDGX175004PDER-GM G E 23 17 5 1.7 0.4 XDGX175008PDER-GM G E 23 17 5 0.2 0.8 XDGX175012PDER-GM G E 23 17 5 0.9 1.2 XDGX175016PDER-GM G E 22 15.9 5 1.4 1.6 XDGX175020PDER-GM G E 22 15.9 5 0.8 2.0 XDGX175024PDER-GM G E 22 15.9 5 0.4 2.4 XDGX175030PDER-GM G E 21.1 16 5 0.6 3.0 XDGX175032PDER-GM G E 21.1 16 5 0.4 3.2 XDGX175040PDER-GM G E 20 14.8 5 0.5 4.0 XDGX175050PDER-GM G E 19.4 15 5 0.4 5.0 GM Breaker XDGX175004PDFR-GM G F 23 17 5 1.7 0.4 XDGX175008PDFR-GM G F 23 17 5 1.2 0.8 XDGX175012PDFR-GM G F 23 17 5 0.9 1.2 XDGX175016PDFR-GM G F 22 15.9 5 1.4 1.6 XDGX175020PDFR-GM G F 22 15.9 5 0.8 2.0 XDGX175024PDFR-GM G F 22 15.9 5 0.4 2.4 XDGX175030PDFR-GM G F 21.1 16 5 0.6 3.0 XDGX175032PDFR-GM G F 21.1 16 5 0.4 3.2 XDGX175040PDFR-GM G F 20 14.8 5 0.5 4.0 XDGX175050PDFR-GM G F 19.4 15 5 0.4 5.0 Cutting Conditions (Guide): :Stable Cutting C :General Cutting Honing: F :Sharp E :Round :Unstabie Cutting Geometry Be careful because corner R(RE) has a different shape than machined workpiece R. When a GM breaker is recommended, stress the dimensional precision of the workpiece shape. : Inventory maintained in Japan. (10 inserts in one case) I Holder And Insert Corner Radius Combination Holder A Type Holder B Type Holder AXD4000- A AXD4000RCOCOOOOGA AXD4000R B Applicable Insert Corner R (re) R0.4-J R0.8 J R1'2 7 R1,s 7 R2.Q ji R2.4 7 R3.0 R3.2 71 R4.0 7 R5.0 r A f A Y A f A r 1 i XDGX 1750J4POOR-O.J XDGX 175DfflfiPDOR-CX) XDGX 1750J2PDOR-CX) XDGX 1750JiPDOR-OO XDGX 17502flPD’.:R- . XDGX 175024PD...: R- . XDGX 1750MPDOR-OO XDGX 175032PDOR-OO XDGX 175(WflPD0R-00 XDGX 1750MPDOR-OO Not interchangeable with the corresponding inserts of the A type and B type holders. M136
