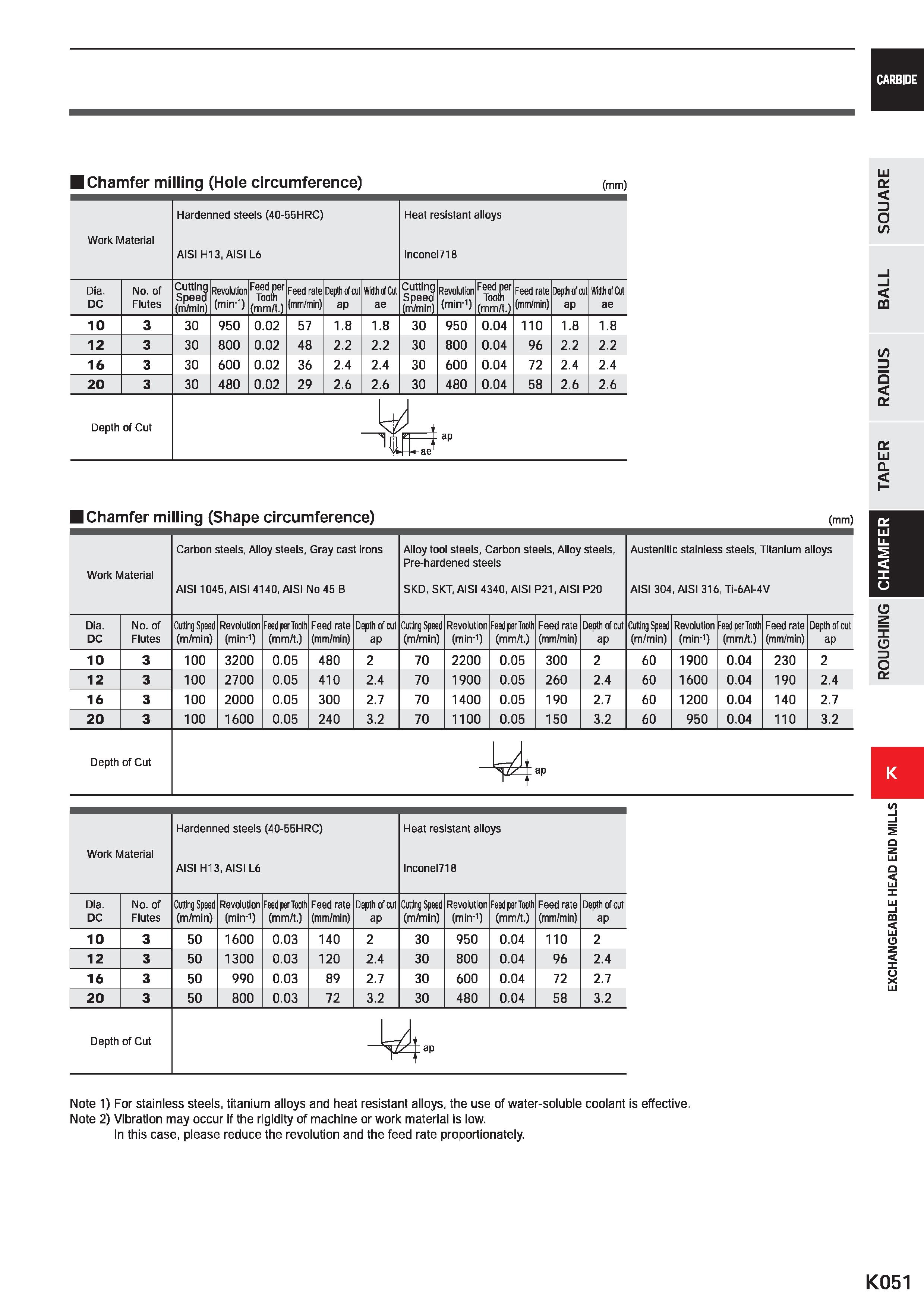

CARBIDE I Chamfer milling (Hole circumference) (mm) Work Material Hardenned steels (40-55HRC) AISI H13, AISI L6 Heat resistant alloys lncone 718 Dia. DC No. of Flutes Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 10 3 30 950 0.02 57 1.8 1.8 30 950 0.04 110 1.8 1.8 12 3 30 800 0.02 48 2.2 2.2 30 800 0.04 96 2.2 2.2 16 3 30 600 0.02 36 2.4 2.4 30 600 0.04 72 2.4 2.4 20 3 30 480 0.02 29 2.6 2.6 30 480 0.04 58 2.6 2.6 Depth of Cut & ap LU D o CO m n 2 Q ct. cc lu a. I Chamfer milling (Shape circumference) (mm) Work Material Carbon steels, Alloy steels, Gray cast irons AISI 1045, AISI 4140, AISI No 45 B Alloy tool steels, Carbon steels, Alloy steels, Pre-hardened steels SKD, SKT, AISI 4340, AISI P21, AISI P20 Austenitic stainless steels, Titanium alloys AISI 304, AISI 316, Ti-6AI-4V LU LJ 5 I o cd Dia. DC No. of Flutes Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap z I CD 10 3 100 3200 0.05 480 2 70 2200 0.05 300 2 60 1900 0.04 230 2 3 o 12 3 100 2700 0.05 410 2.4 70 1900 0.05 260 2.4 60 1600 0.04 190 2.4 DC 16 3 100 2000 0.05 300 2.7 70 1400 0.05 190 2.7 60 1200 0.04 140 2.7 20 3 100 1600 0.05 240 3.2 70 1100 0.05 150 3.2 60 950 0.04 110 3.2 Depth of Cut ap Work Material Hardenned steels (40-55HRC) AISI H13, AISI L6 Heat resistant alloys incone 718 Dia. No. of Cutting Speed Revolution Feed per Tooth Feed rate Depth of cut Cutting Speed Revolution Feed per Tooth Feed rate Depth of cut DC Flutes (m/min) (min-1) (mm/t.) (mm/min) ap (m/min) (min-1) (mm/t.) (mm/min) ap 10 3 50 1600 0.03 140 2 30 950 0.04 110 2 12 3 50 1300 0.03 120 2.4 30 800 0.04 96 2.4 16 3 50 990 0.03 89 2.7 30 600 0.04 72 2.7 20 3 50 800 0.03 72 3.2 30 480 0.04 58 3.2 Depth of Cut a m ap Note 1) For stainless steels, titanium alloys and heat resistant alloys, the use of water-soluble coolant is effective. Note 2) Vibration may occur if the rigidity of machine or work material is low. In this case, please reduce the revolution and the feed rate proportionately. K051
