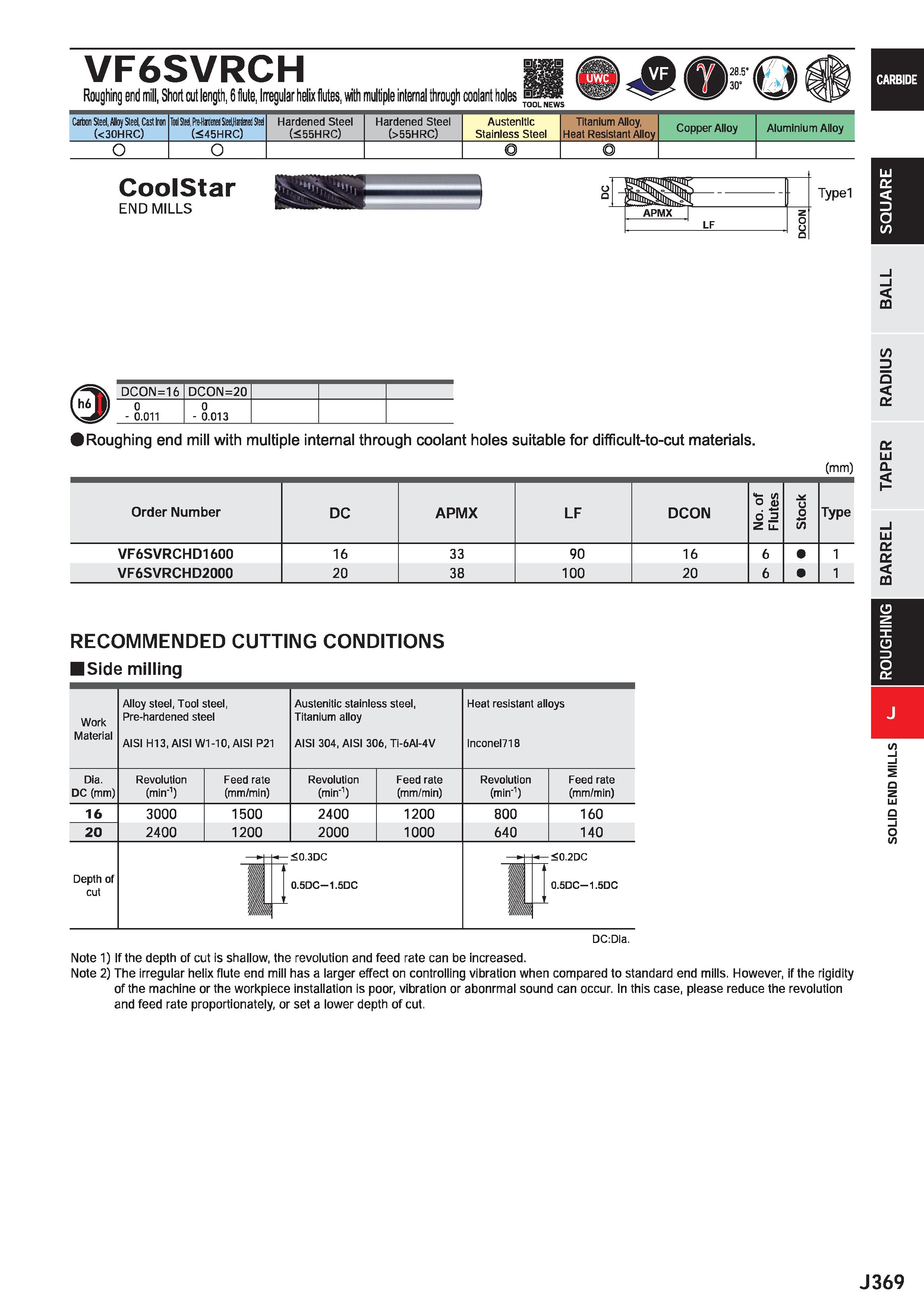

VF6SVRCH Roughing end mill, Short cut length, 6 flute, Irregular helix flutes, with multiple internal through coolant holes SfS S TOOL NEWS Carbon Steel, Alloy Steel, Cast iron (<30HRC) Tool Steel, Pre-Hjrdeneil Sieei.HarilenedSteel (<45HRC) Hardened Steel (<55HRC) Hardened Steel (>55HRC) Austenitic Stainless Steel Titanium Alloy, Heat Resistant Alloy Copper Alloy Aluminium Alloy CoolStar END MILLS APMX LF z a Typel m DCON=16 DCON=20 0 - 0.011 0 - 0.013 I Roughing end mill with multiple internal through coolant holes suitable for difficult-to-cut materials. (mm) Order Number DC APMX LF DCON O u O = Z U. + i/> Type VF6SVRCHD1600 16 33 90 16 6 1 VF6SVRCHD2000 20 38 100 20 6 1 /> 2 Q CC CC LlI a. RECOMMENDED CUTTING CONDITIONS Side milling Work Material Alloy steel, Tool steel, Pre-hardened steel AISI H13.AISI W1-10, AISI P21 Austenitic stainless steel, Titanium alloy AISI 304, AISI 306, Ti-6AI-4V Heat resistant alloys lnconel718 Dia. DC (mm) Revolution (min'1) Feed rate (mm/min) 16 3000 1500 2400 1200 800 160 20 2400 1200 2000 1000 640 140 Depth of cut ( 0.3DC h 0.2DC 1 0.50C 1.5DC Wm 0.5DC 1.5DC DC:Dla. Note 1) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 2) The irregular helix flute end mill has a larger effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abonrmal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut, o in J369
