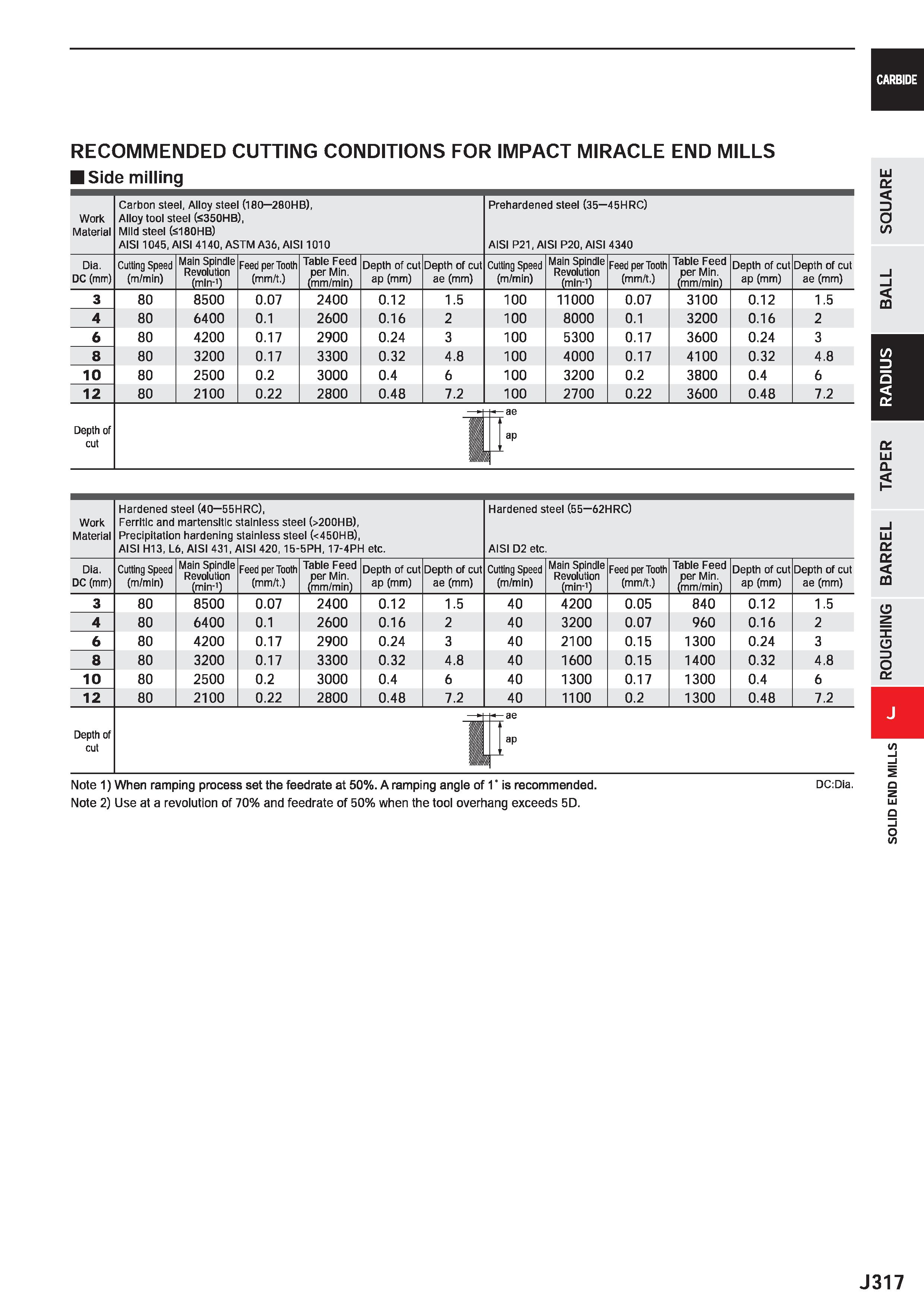

CARBIDE RECOMMENDED CUTTING CONDITIONS FOR IMPACT MIRACLE END MILLS I Side milling Work Material Carbon steel, Alloy steel (180 280HB), Alloy tool steel (<350HB), Mild steel (S180HB) AISI 1045, AISI 4140, ASTM A36, AIS11010 Prehardened steel (35 45HRC) AISI P21, AISI P20, AISI 4340 Dia. DC (mm) Cutting Speed (m/min) Main Spindle Revolution (min-1) Feed per Tooth (mm/t.) Table Feed per Min. (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting Speed (m/min) Main Spindle Revolution (min-1) Feed per Tooth (mm/t.) Table Feed per Min. (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) 3 80 8500 0.07 2400 0.12 1.5 100 11000 0.07 3100 0.12 1.5 4 80 6400 0.1 2600 0.16 2 100 8000 0.1 3200 0.16 2 6 80 4200 0.17 2900 0.24 3 100 5300 0.17 3600 0.24 3 8 80 3200 0.17 3300 0.32 4.8 100 4000 0.17 4100 0.32 4.8 10 80 2500 0.2 3000 0.4 6 100 3200 0.2 3800 0.4 6 12 80 2100 0.22 2800 0.48 7.2 100 2700 0.22 3600 0.48 7.2 Depth of cut -h ae ap LU CC D o 10 m cc LU a. LU cc cc m cd CD 3 o DC Work Material Hardened steel (40-55HRC), Ferritic and martensitic stainless steel (>200HB), Precipitation hardening stainless steel (<450HB), AISI H13, L6, AISI 431, AISI 420, 15-5PH, 17-4PH etc. Hardened steel (55-62HRC) AISI D2 etc. Dia. DC (mm) Cutting Speed (m/mln) Main Spindle Revolution (min-1) Feed per Tooth (mm/t.) Table Feed per Min. (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) Cutting Speed (m/mln) Main Spindle Revolution (min-1) Feed per Tooth (mm/t.) Table Feed per Min. (mm/min) Depth of cut ap (mm) Depth of cut ae (mm) 3 80 8500 0.07 2400 0.12 1.5 40 4200 0.05 840 0.12 1.5 4 80 6400 0.1 2600 0.16 2 40 3200 0.07 960 0.16 2 6 80 4200 0.17 2900 0.24 3 40 2100 0.15 1300 0.24 3 8 80 3200 0.17 3300 0.32 4.8 40 1600 0.15 1400 0.32 4.8 10 80 2500 0.2 3000 0.4 6 40 1300 0.17 1300 0.4 6 12 80 2100 0.22 2800 0.48 7.2 40 1100 0.2 1300 0.48 7.2 Depth of cut 1 -+ ae ap Note 1) When ramping process set the feedrate at 50%. A ramping angle of 1' is recommended. Note 2) Use at a revolution of 70% and feedrate of 50% when the tool overhang exceeds 5D. DC: Dia. O in J317
