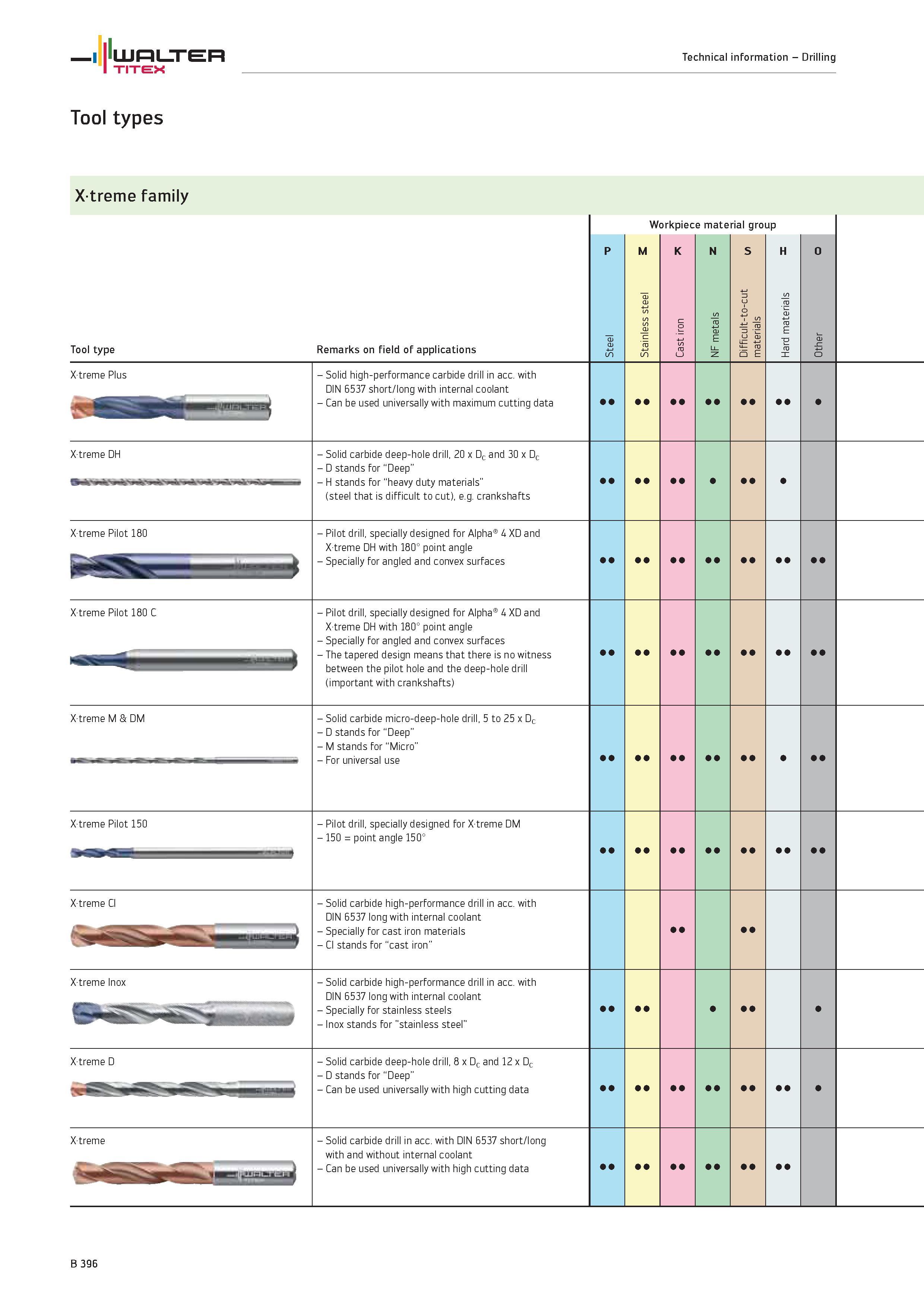

Drilling TITEX Tool types Xtreme family Tool type Remarks on field of applications Workpiece material group Xtreme Plus Solid high-performance carbide drill in acc. with DIN 6537 short/long with internal coolant Can be used universally with maximum cutting data Xtreme DH Solid carbide deep-hole drill, 20 x Dc and 30 x Dc D stands for “Deep H stands for “heavy duty materials (steel that is difficult to cut), e.g. crankshafts Xtreme Pilot 180 Pilot drill, specially designed for Alpha 4 XD and Xtreme DH with 180° point angle Specially for angled and convex surfaces Xtreme Pilot 180 C Pilot drill, specially designed for Alpha 4 XD and Xtreme DH with 180° point angle Specially for angled and convex surfaces The tapered design means that there is no witness between the pilot hole and the deep-hole drill (important with crankshafts) Xtreme M DM Solid carbide micro-deep-hole drill, 5 to 25 x Dc D stands for “Deep M stands for “Micro For universal use Xtreme Pilot 150 Pilot drill, specially designed for Xtreme DM 150 point angle 150° Xtreme CI Solid carbide high-performance drill in acc. with DIN 6537 long with internal coolant Specially for cast iron materials CI stands for “cast iron X treme Inox Solid carbide high-performance drill in acc. with DIN 6537 long with internal coolant Specially for stainless steels Inox stands for "stainless steel" Xtreme D Solid carbide deep-hole drill, 8 x Dc and 12 x Dc D stands for “Deep Can be used universally with high cutting data Xtreme Solid carbide drill in acc. with DIN 6537 short/long with and without internal coolant Can be used universally with high cutting data K N S H O B 396 WALTER Technical information
