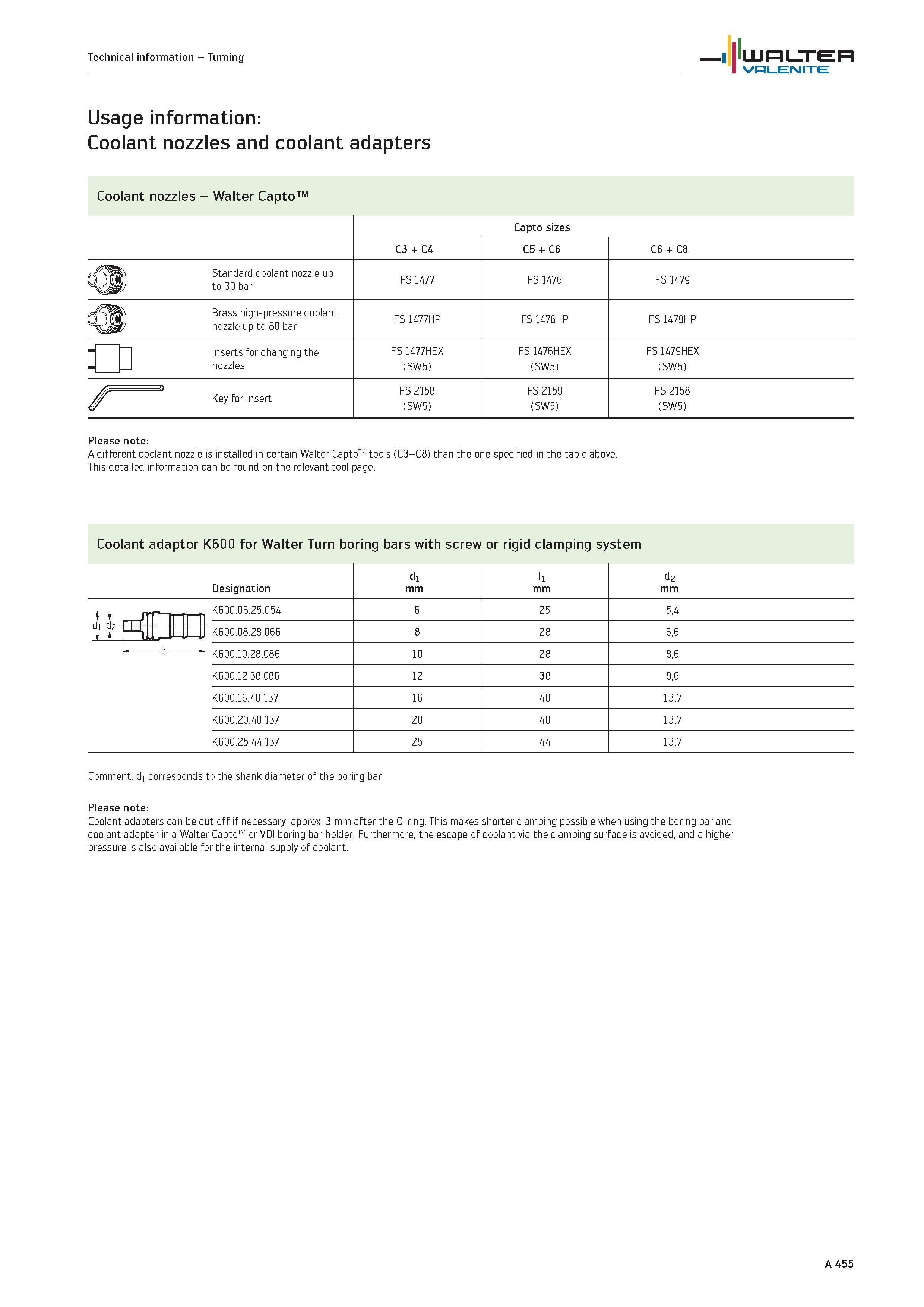

Coolant nozzles Walter Capto C3 C4 Capto sizes C5 C6 C6 C8 a 13 Standard coolant nozzle up to 30 bar FS 1477 FS 1476 FS 1479 a E Brass high-pressure coolant nozzle up to 80 bar FS 1477HP FS 1476HP FS 1479HP D Inserts for changing the nozzles FS 1477HEX (SW5) FS 1476HEX (SW5) FS 1479HEX (SW5) Key for insert FS 2158 (SW5) FS 2158 (SW5) FS 2158 (SW5) Please note A different coolant nozzle is installed in certain Walter CaptoTM tools (C3-C8) than the one specified in the table above. This detailed information can be found on the relevant tool page. Coolant adaptor K600 for Walter Turn boring bars with screw or rigid clamping system Designation di mm li mm d2 mm "‘nrm K600.06.25.054 6 25 5,4 d1 d -M K600.08.28.066 8 28 6,6 L 11 K600.10.28.086 10 28 8,6 K600.12.38.086 12 38 8,6 K600.16.40.137 16 40 13,7 K600.20.40.137 20 40 13,7 K600.25.44.137 25 44 13,7 Comment di corresponds to the shank diameter of the boring bar. Please note Coolant adapters can be cut off if necessary, approx. 3 mm after the O-ring. This makes shorter clamping possible when using the boring bar and coolant adapter in a Walter CaptoTM or VDI boring bar holder. Furthermore, the escape of coolant via the clamping surface is avoided, and a higher pressure is also available for the internal supply of coolant. A 455 Technical information Turning WALTER Valenite Usage information Coolant nozzles and coolant adapters
