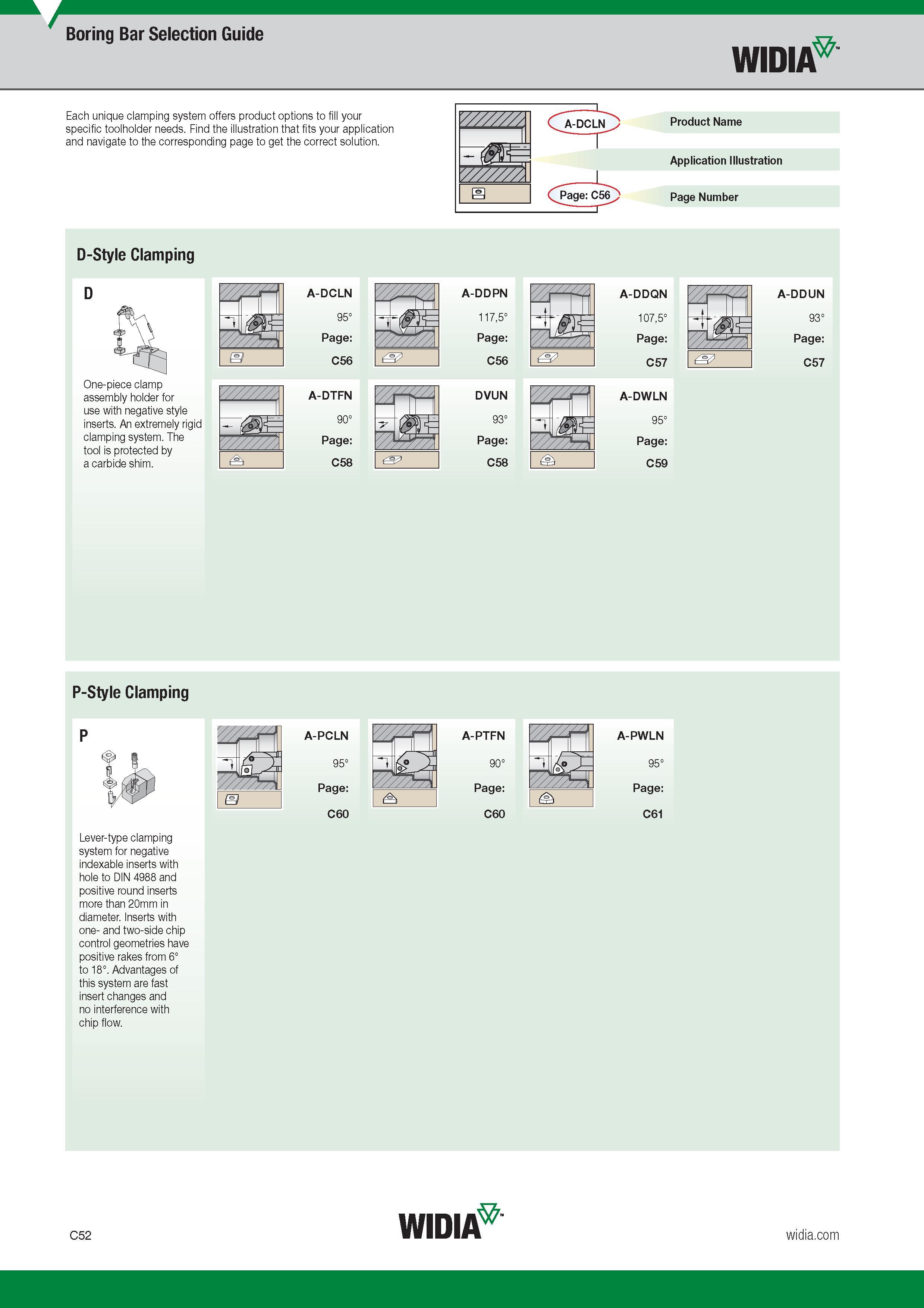

Boring Bar Selection Guide Widia Each unique clamping system offers product options to fill your specific toolholder needs. Find the illustration that fits your application and navigate to the corresponding page to get the correct solution. a Page C56 Product Name Application Illustration Page Number D-Style Clamping D One-piece clamp assembly holder for use with negative style inserts. An extremely rigid clamping system. The tool is protected by a carbide shim. A-DCLN 95° Page C56 A-DTFN 90° Page C58 A-DDPN 117,5° Page C56 DVUN 93° Page C58 A-DDQN 107,5° Page C57 A-DWLN 95° Page C59 -l PC n tw1 A-DDUN 93° Page C57 P-Style Clamping P Lever-type clamping system for negative indexable inserts with hole to DIN 4988 and positive round inserts more than 20mm in diameter. Inserts with one- and two-side chip control geometries have positive rakes from 6° to 18°. Advantages of this system are fast insert changes and no interference with chip flow. A-PCLN 95° Page C60 A-PTFN 90° Page C60 A-PWLN 95° Page C61
