Boring Bar Selection Guide Widia C-Style Clamping C Top clamping system for negative and positive indexable inserts to DIN 4968 This universal clam

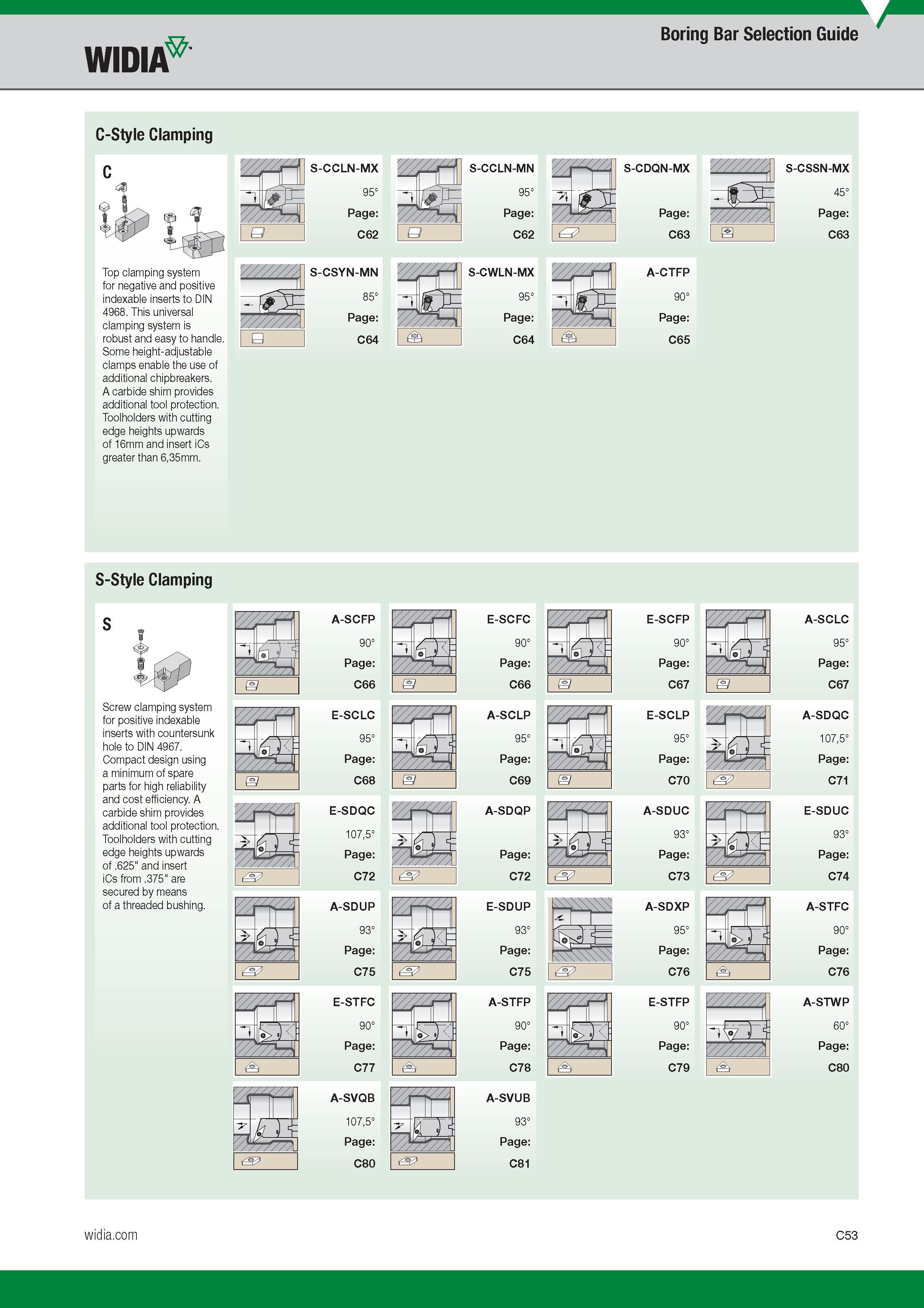

Boring Bar Selection Guide Widia C-Style Clamping C Top clamping system for negative and positive indexable inserts to DIN 4968. This universal clamping system is robust and easy to handle. Some height-adjustable clamps enable the use of additional chipbreakers. A carbide shim provides additional tool protection. Toolholders with cutting edge heights upwards of 16mm and insert iCs greater than 6,35mm. B S-CCLN-MX 95° Page C62 S-CSYN-MN 85° Page C64 a S-CCLN-MN 95° Page C62 S-CWLN-MX 95° Page C64 S-CDQN-MX Page C63 A-CTFP 90° Page C65 a S-CSSN-MX 45° Page C63 S-Style Clamping S Screw clamping system for positive indexable inserts with countersunk hole to DIN 4967. Compact design using a minimum of spare parts for high reliability and cost efficiency. A carbide shim provides additional tool protection. Toolholders with cutting edge heights upwards of .625" and insert iCs from .375" are secured by means of a threaded bushing. A-SCFP 90° Page C66 E-SCLC 95° Page C68 E-SDQC 107,5° Page C72 A-SDUP 93° Page C75 A-SVQB 107,5° Page C80 E-SCFC 90° Page C66 A-SCLP 95° Page C69 A-SDQP Page C72 E-SDUP 93° Page C75 A-SVUB 93° Page C81 E-SCFP 90° Page C67 E-SCLP 95° Page C70 A-SDUC 93° Page C73 Page C79 A-SCLC 95° Page C67 A-SDQC 107,5° Page C71 E-SDUC 93° Page C74 A-STWP 60° Page C80
