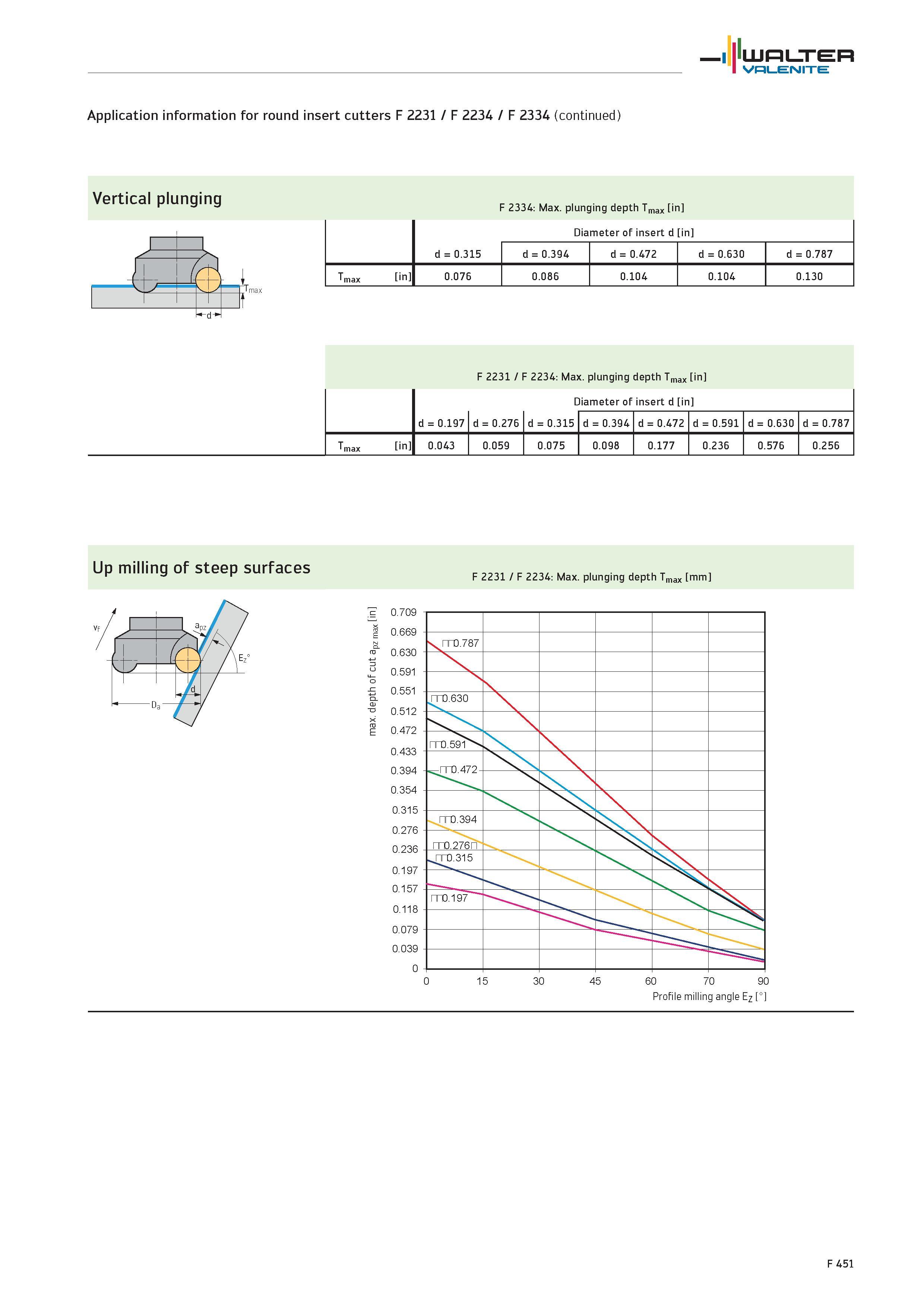

Application information for round insert cutters F 2231 / F 2234 / F 2334 Vertical plunging F 2334 Max plunging depth Tmax in Diameter of insert

Application information for round insert cutters F 2231 / F 2234 / F 2334 Vertical plunging F 2334 Max. plunging depth Tmax in Diameter of insert d in d 0.315 d 0.394 d 0.472 d 0.630 d 0.787 Tmax in 0.076 0.086 0.104 0.104 0.130 F 2231 / F 2234 Max. plunging depth Tmax in Diameter of insert d in d 0.197 d 0.276 d 0.315 d 0.394 d 0.472 d 0.591 d 0.630 d 0.787 Tmax in 0.043 0.059 0.075 0.098 0.177 0.236 0.576 0.256 Up milling of steep surfaces F 2231 / F 2234 Max. plunging depth Tmax mm Profile milling angle Ez T max F 451 WALTER Valenite
