NORGAU | Каталог NORGAU 2015 Инструмент (Всего 832 стр.) |
|||||
|
803 Каталог NORGAU 2014 Инструменты Оборудование Стр.787 |
|||||

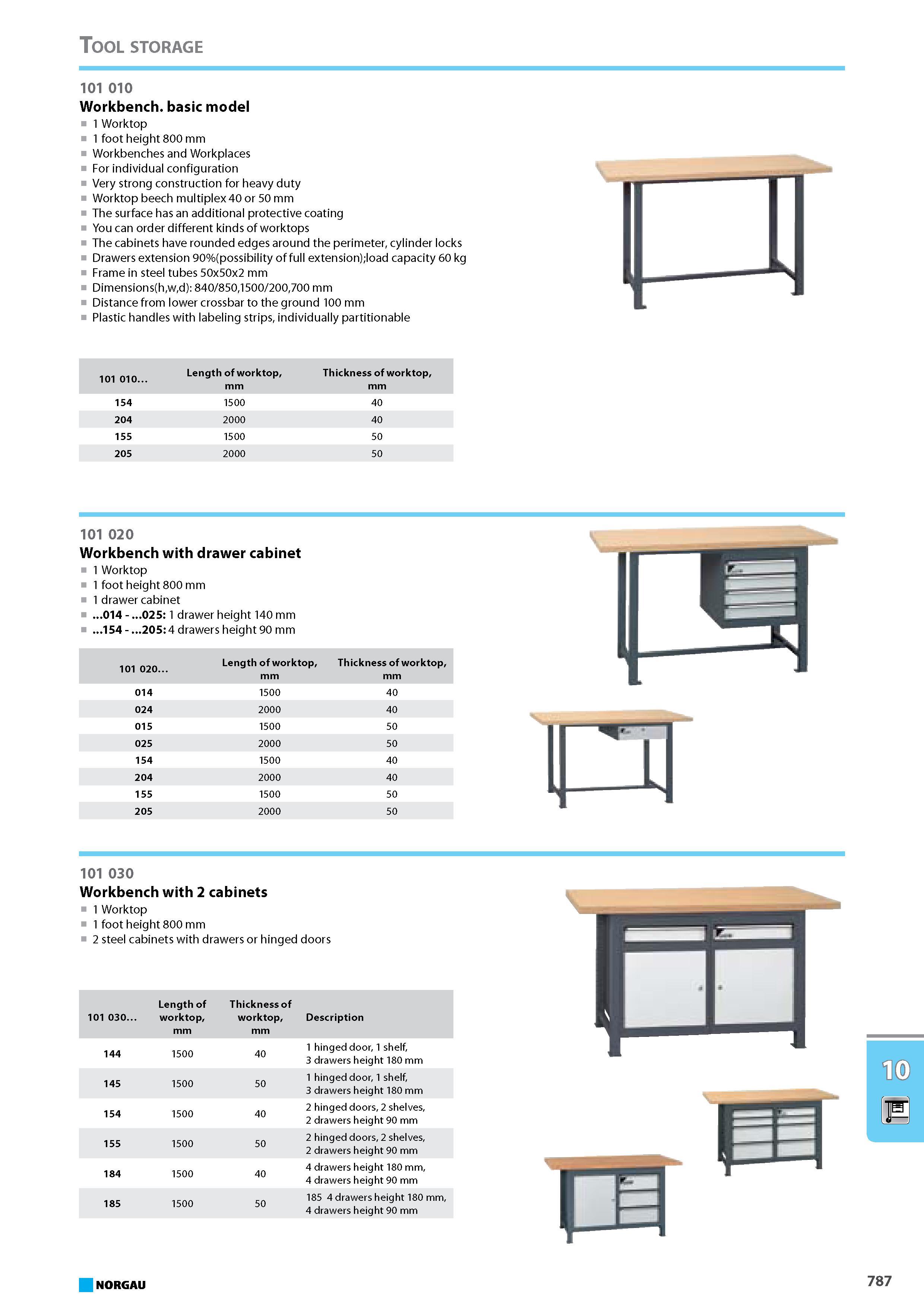

Workbenches and Workplaces For individual configuration Very strong construction for heavy duty Worktop beech multiplex 40 or 50 mm The surface has an additional proteWorkbenches and Workplaces For individual configuration Very strong construction for heavy duty Worktop beech multiplex 40 or 50 mm The surface has an additional protective coating You can order different kinds of worktops The cabinets have rounded edges around the perimeter cylinder locks Drawers extension 90%(possibility of full extension);load capacity 60 kg Frame in steel tubes 50x50x2 mm Dimensions(hwd) 840 8501500 200700 mm Distance from lower crossbar to the ground 100 mm Plastic handles with labeling strips individually partitionable 101 010. Length of worktop mm Thickness of worktop mm 154 1500 40 204 2000 40 155 1500 50 205 2000 50 101 020 Workbench with drawer cabinet 1 Worktop 1 foot height 800 mm 1 drawer cabinet 014 - 025 1 drawer height 140 mm 154 - 205 4 drawers height 90 mm 101 020. Length of worktop mm Thickness of worktop mm 014 1500 40 024 2000 40 015 1500 50 025 2000 50 154 1500 40 204 2000 40 155 1500 50 205 2000 50 101 030 Workbench with 2 cabinets 1 Worktop 1 foot height 800 mm 2 steel cabinets with drawers or hinged doors 101 030. Length of worktop mm Thickness of worktop mm Description 144 1500 40 1 hinged door 1 shelf 3 drawers height 180 mm 145 1500 50 1 hinged door 1 shelf 3 drawers height 180 mm 154 1500 40 2 hinged doors 2 shelves 2 drawers height 90 mm 155 1500 50 2 hinged doors 2 shelves 2 drawers height 90 mm 184 1500 40 4 drawers height 180 mm 4 drawers height 90 mm 185 1500 50 185 4 drawers height 180 mm 4 drawers height 90 mm 10 NORGAU 787 Tool storage 101 010 Workbench basic model 1 Worktop 1 foot height 800 mm |
|||||
