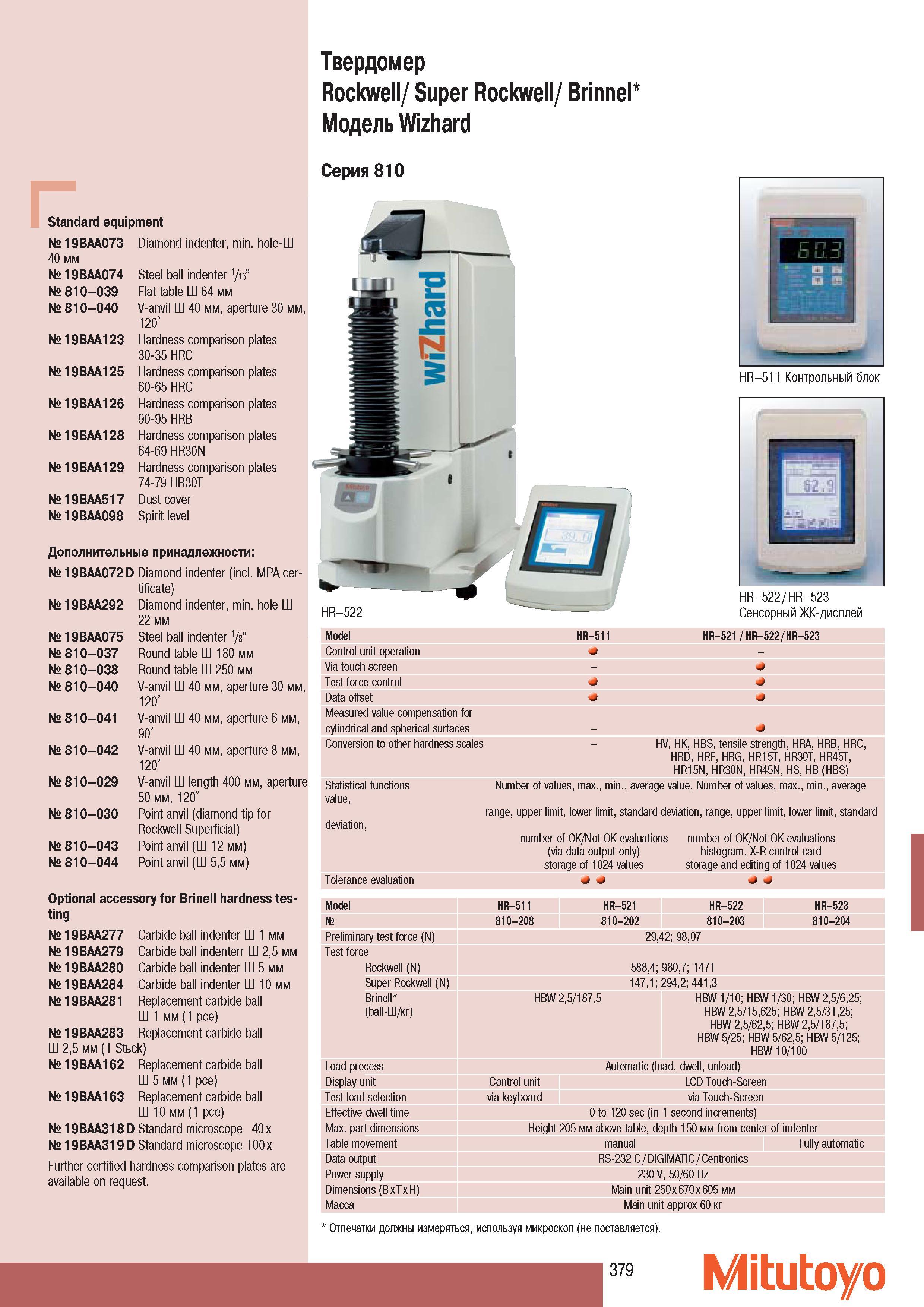

Твердомер Mitutoyo Super Rockwell Brinnel Модель Wizhard Cерия 810 Diamond indenter min. hole-Ш Steel ball indenter 1 i6 Flat table 64 мм V-anvil 40 мм aperture 30 мм 120 Hardness comparison plates 30-35 HRC Hardness comparison plates 60-65 HRC Hardness comparison plates 90-95 HRB Hardness comparison plates 64-69 HR30N Hardness comparison plates 74-79 HR30T Dust cover Spirit level Дополнительные принадлежности 19BAA072 D Diamond indenter (incl. MPA cer- tificate) 19BAA292 Diamond indenter min. hole 22 мм 19BAA075 Steel ball indenter 1 s 810-037 Round table 180 мм 810-038 Round table 250 мм 810-040 V-anvil 40 мм aperture 30 мм 120 810-041 V-anvil 40 мм aperture 6 мм 90 810-042 V-anvil 40 мм aperture 8 мм 120 810-029 V-anvil length 400 мм aperture 50 мм 120 810-030 Point anvil (diamond tip for Rockwell Superficial) 810-043 Point anvil (Ш 12 мм) 810-044 Point anvil (Ш 55 мм) Optional accessory for Brinell hardness testing 19BAA277 Carbide ball indenter 1 мм 19BAA279 Carbide ball indenterr 25 мм 19BAA280 Carbide ball indenter 5 мм 19BAA284 Carbide ball indenter 10 мм 19BAA281 Replacement carbide ball 1 мм (1 pce) 19BAA283 Replacement carbide ball 25 мм (1 Stbck) 19BAA162 Replacement carbide ball 5 мм (1 pce) 19BAA163 Replacement carbide ball 10 мм (1 pce) 19BAA318 D Standard microscope 40 x 19BAA319 D Standard microscope 100x Further certified hardness comparison plates are available on request. HR-511 Контрольный блок HR-522 Сенсорный ЖК-дисплей Model HR-511 HR-521 HR-522 HR-523 Control unit operation Via touch screen Test force control Data offset Measured value compensation for cylindrical and spherical surfaces Conversion to other hardness scales HV HK HBS tensile strength HRA HRB HRC Statistical functions value deviation Tolerance evaluation HRD HRF HRG HR15T HR30T HR45T HR15N HR30N HR45N HS HB (HBS) Number of values max. min. average value Number of values max. min. average range upper limit lower limit standard deviation range upper limit lower limit standard number of OK Not OK evaluations (via data output only) storage of 1024 values number of OK Not OK evaluations histogram X-R control card storage and editing of 1024 values Model HR-511 HR-521 HR-522 HR-523 810-208 810-202 810-203 810-204 Preliminary test force (N) Test force 2942; 9807 Rockwell (N) 5884; 9807; 1471 Super Rockwell (N) 1471; 2942; 4413 Brinell HBW 25 1875 HBW 1 10; HBW 1 30; HBW 25 625; (ball-Ш кг) HBW 25 15625; HBW 25 3125; HBW 25 625; HBW 25 1875; HBW 5 25; HBW 5 625; HBW 5 125; HBW 10 100 Load process Automatic (load dwell unload) Display unit Control unit LCD Touch-Screen Test load selection via keyboard via Touch-Screen Effective dwell time 0 to 120 sec (in 1 second increments) Max. part dimensions Height 205 мм above table depth 150 мм from center of indenter Table movement manual Fully automatic Data output RS-232 C DIGIMATIC Centronics Power supply 230 V 50 60 Hz Dimensions (BxTxH) Main unit 250x670x605 мм Масса Main unit approx 60 кг Отпечатки должны измеряться используя микроскоп (не поставляется). 379 Mitutoyo Rockwell Standard equipment 19BAA073 40 мм 19BAA074 810-039 810-040 19BAA123 19BAA125 19BAA126 19BAA128 19BAA129 19BAA517 19BAA098
