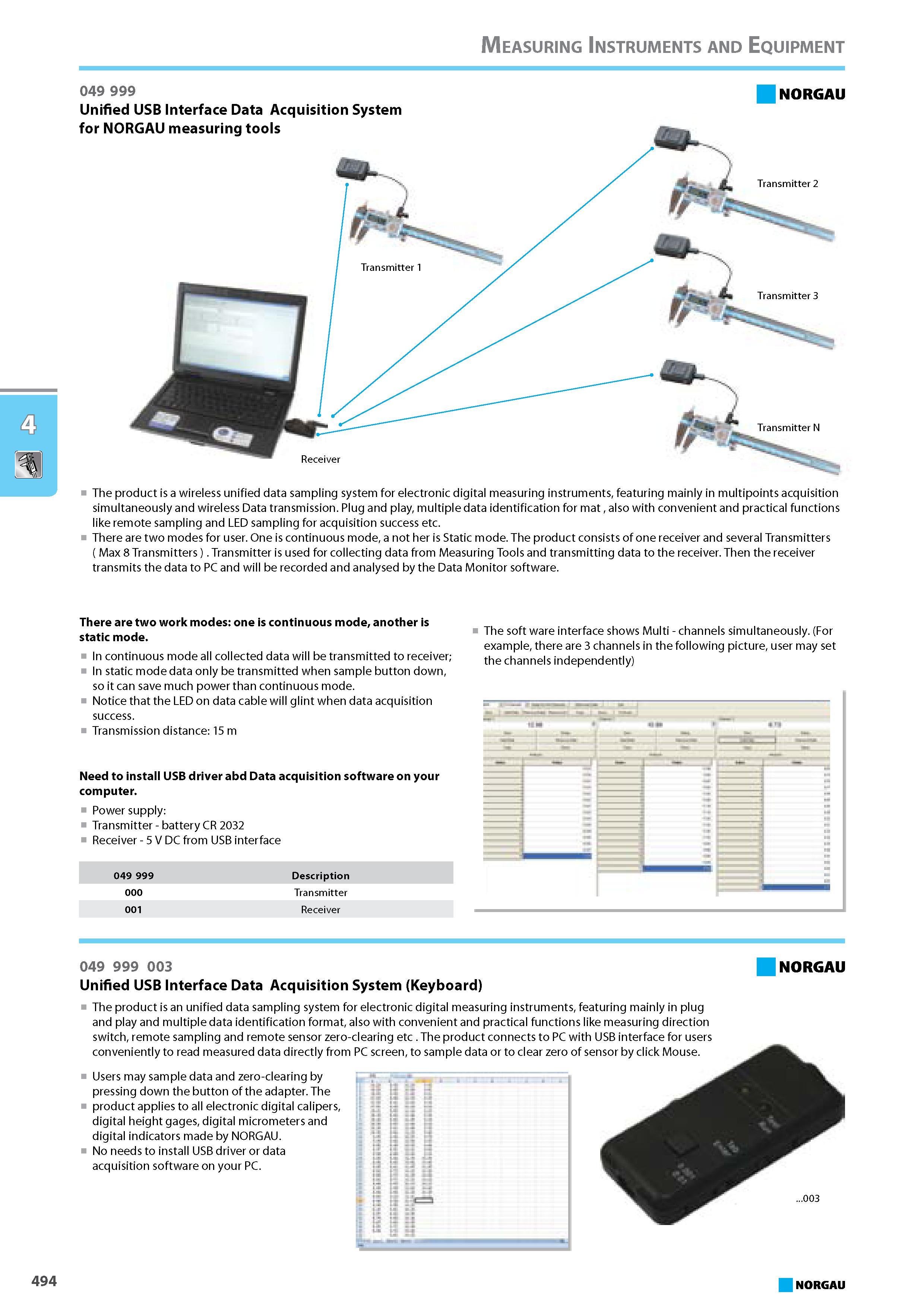

Unified USB Interface Data Acquisition System for NORGAU measuring tools Transmitter 2 Transmitter 3 11 Transmitter N Receiver NORGAU The product is a wireless unified data sampling system for electronic digital measuring instruments featuring mainly in multipoints acquisition simultaneously and wireless Data transmission. Plug and play multiple data identification for mat also with convenient and practical functions like remote sampling and LED sampling for acquisition success etc. There are two modes for user. One is continuous mode a not her is Static mode. The product consists of one receiver and several Transmitters ( Max 8 Transmitters ) Transmitter is used for collecting data from Measuring Tools and transmitting data to the receiver. Then the receiver transmits the data to PC and will be recorded and analysed by the Data Monitor software. There are two work modes one is continuous mode another is static mode. In continuous mode all collected data will be transmitted to receiver In static mode data only be transmitted when sample button down so it can save much power than continuous mode. Notice that the LED on data cable will glint when data acquisition success. Transmission distance 15 m Need to install USB driver abd Data acquisition software on your computer. Power supply Transmitter - battery CR 2032 Receiver - 5 V DC from USB interface 049 999 Description 000 Transmitter 001 Receiver The soft ware interface shows Multi - channels simultaneously. (For example there are 3 channels in the following picture user may set the channels independently) ttli -r -r - T J. n 049 999 003 Unified USB Interface Data Acquisition System (Keyboard) NORGAU 003 The product is an unified data sampling system for electronic digital measuring instruments featuring mainly in plug and play and multiple data identification format also with convenient and practical functions like measuring direction switch remote sampling and remote sensor zero-clearing etc The product connects to PC with USB interface for users conveniently to read measured data directly from PC screen to sample data or to clear zero of sensor by click Mouse. Users may sample data and zero-clearing by pressing down the button of the adapter. The product applies to all electronic digital calipers digital height gages digital micrometers and digital indicators made by NORGAU. No needs to install USB driver or data acquisition software on your PC. NORGAU Measuring Instruments and Equipment 494 049 999
