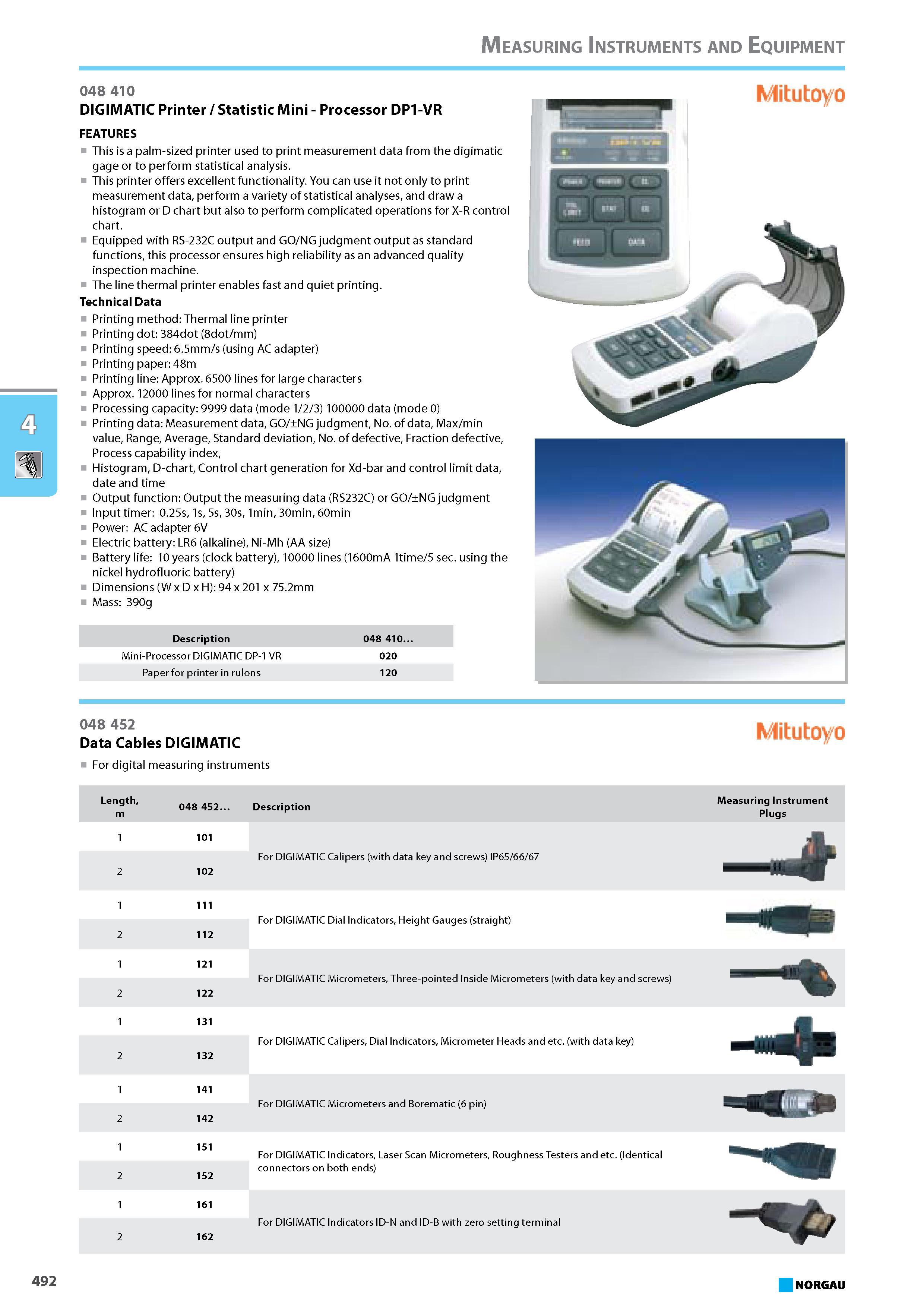

Printer Statistic Mini - Processor DP1-VR FEATURES This is a palm-sized printer used to print measurement data from the digimatic gage or to perform statistical analysis. This printer offers excellent functionality. You can use it not only to print measurement data perform a variety of statistical analyses and draw a histogram or D chart but also to perform complicated operations for X-R control chart. Equipped with RS-232C output and GO NG judgment output as standard functions this processor ensures high reliability as an advanced quality inspection machine. The line thermal printer enables fast and quiet printing. Technical Data Printing method Thermal line printer Printing dot 384dot (8dot mm) Printing speed 6.5mm s (using AC adapter) Printing paper 48m Printing line Approx. 6500 lines for large characters Approx. 12000 lines for normal characters Processing capacity 9999 data (mode 1 2 3) 100000 data (mode 0) Printing data Measurement data GO NG judgment No. of data Max min value Range Average Standard deviation No. of defective Fraction defective Process capability index Histogram D-chart Control chart generation for Xd-bar and control limit data date and time Output function Output the measuring data (RS232C) or GO NG judgment Input timer 0.25s 1s 5s 30s 1min 30min 60min Power AC adapter 6V Electric battery LR6 (alkaline) Ni-Mh (AA size) Battery life 10 years (clock battery) 10000 lines (1600mA 1time 5 sec. using the nickel hydrofluoric battery) Dimensions (W x D x H) 94 x 201 x 75.2mm Mass 390g Description 048 410. Mini-Processor DIGIMATIC DP-1 VR 020 Paper for printer in rulons 120 048 452 Data Cables DIGIMATIC For digital measuring instruments Length m 048 452. Description 1 101 2 102 For DIGIMATIC Calipers (with data key and screws) IP65 66 67 1 111 For DIGIMATIC Dial Indicators Height Gauges (straight) 2 112 1 121 For DIGIMATIC Micrometers Three-pointed Inside Micrometers (with data key and 2 122 1 131 2 132 For DIGIMATIC Calipers Dial Indicators Micrometer Heads and etc. (with data key) 1 141 For DIGIMATIC Micrometers and Borematic (6 pin) 2 142 1 151 For DIGIMATIC Indicators Laser Scan Micrometers Roughness Testers and etc. (Idei 2 152 connectors on both ends) 1 161 For DIGIMATIC Indicators ID-N and ID-B with zero setting terminal 2 162 Measuring Instrument Plugs Measuring Instruments and Equipment 492 048 410 DIGIMATIC
