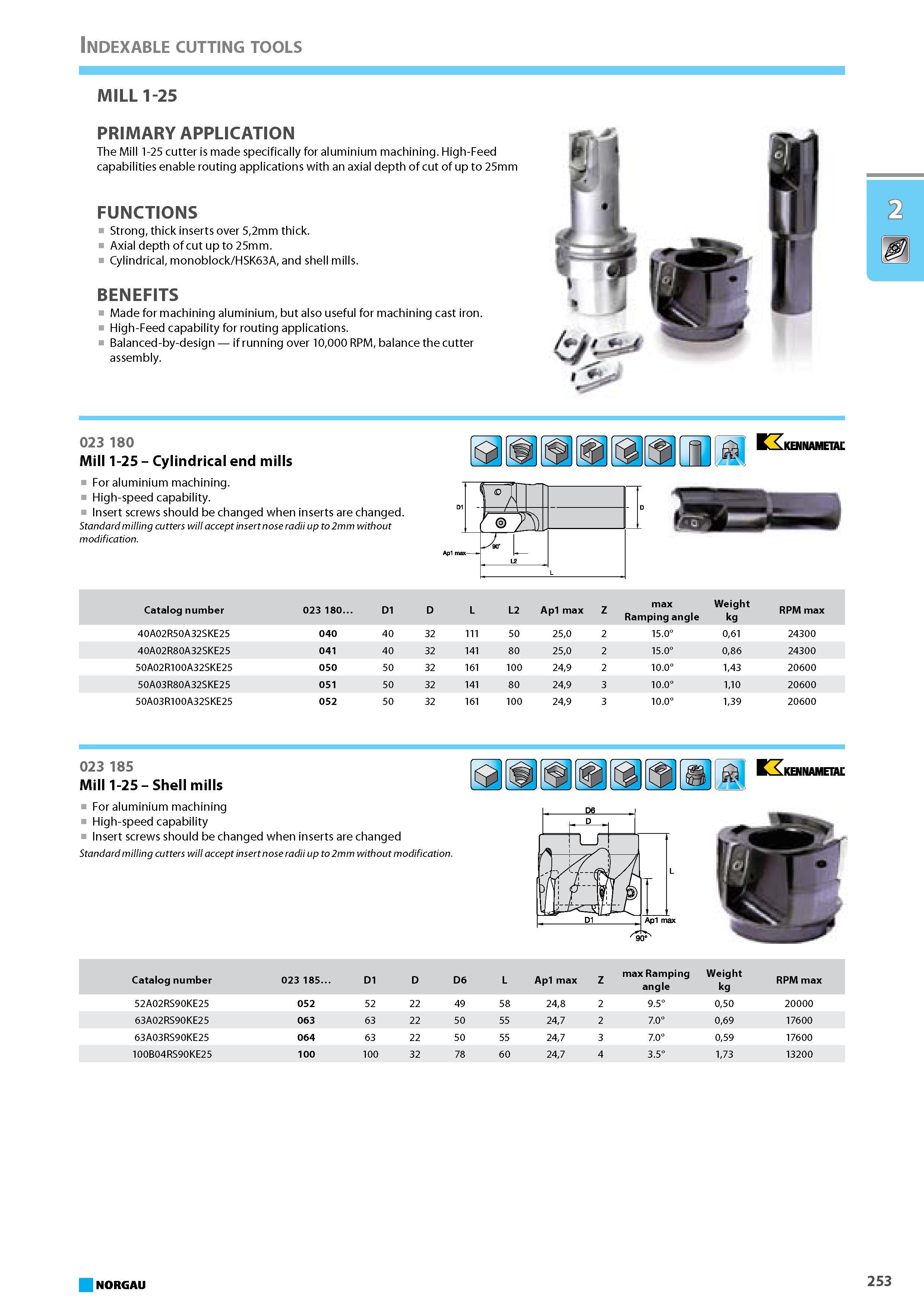

The Mill 1-25 cutter is made specifically for aluminium machining. High-Feed capabilities enable routing applications with an axial depth of cut of up to 25mm FUNCTION

The Mill 1-25 cutter is made specifically for aluminium machining. High-Feed capabilities enable routing applications with an axial depth of cut of up to 25mm FUNCTIONS Strong thick inserts over 52mm thick. Axial depth of cut up to 25mm. Cylindrical monoblock HSK63A and shell mills. BENEFITS Made for machining aluminium but also useful for machining cast iron. High-Feed capability for routing applications. Balanced-by-design if running over 10000 RPM balance the cutter assembly. r - 023 180 Mill 1-25 - Cylindrical end mills For aluminium machining. High-speed capability. Insert screws should be changed when inserts are changed. Standard milling cutters will accept insert nose radii up to 2mm without modification. Catalog number 023 180. D1 D L L2 Ap1 max Z max Ramping angle Weight kg RPM max 40A02R50A32SKE25 040 40 32 111 50 250 2 15.0 061 24300 40A02R80A32SKE25 041 40 32 141 80 250 2 15.0 086 24300 50A02R100A32SKE25 050 50 32 161 100 249 2 10.0 143 20600 50A03R80A32SKE25 051 50 32 141 80 249 3 10.0 110 20600 50A03R100A32SKE25 052 50 32 161 100 249 3 10.0 139 20600 023 185 Mill 1-25 - Shell mills For aluminium machining High-speed capability Insert screws should be changed when inserts are changed Standard milling cutters will accept insert nose radii up to 2mm without modification Catalog number 023 185. D1 D D6 L Ap1 max Z max Ramping angle Weight kg RPM max 52A02RS90KE25 052 52 22 49 58 248 2 9.5 050 20000 63A02RS90KE25 063 63 22 50 55 247 2 7.0 069 17600 63A03RS90KE25 064 63 22 50 55 247 3 7.0 059 17600 100B04RS90KE25 100 100 32 78 60 247 4 3.5 173 13200 NORGAU 253 Indexable cutting tools MILL 1-25 PRIMARY APPLICATION
