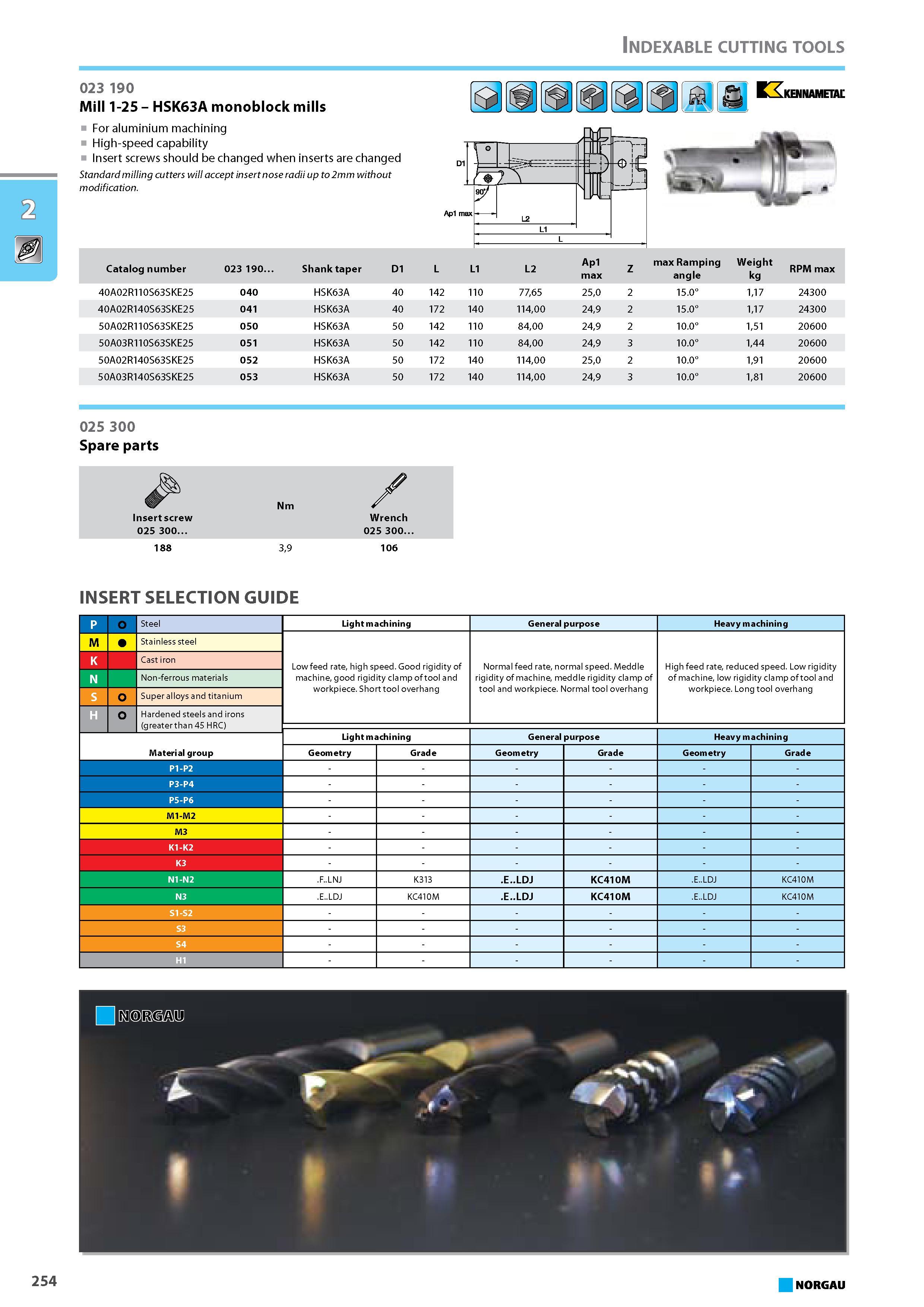

Mill HSK63A monoblock mills For aluminium machining High-speed capability Insert screws should be changed when inserts are changed Standard milling cutters will accept insert nose radii up to 2mm without modification. Catalog number 023 190. Shank taper D1 KENNAMETAE s L L1 L2 max Ramping Weight Z K a a RPM max max angle kg 40A02R110S63SKE25 040 HSK63A 40 142 110 7765 250 2 15.0 117 24300 40A02R140S63SKE25 041 HSK63A 40 172 140 11400 249 2 15.0 117 24300 50A02R110S63SKE25 050 HSK63A 50 142 110 8400 249 2 10.0 151 20600 50A03R110S63SKE25 051 HSK63A 50 142 110 8400 249 3 10.0 144 20600 50A02R140S63SKE25 052 HSK63A 50 172 140 11400 250 2 10.0 191 20600 50A03R140S63SKE25 053 HSK63A 50 172 140 11400 249 3 10.0 181 20600 025 300 Spare parts Insert screw 025 300. Wrench 025 300. 188 39 106 INSERT SELECTION GUIDE p Steel Light machining General purpose Heavy machining j Stainless steel Low feed rate high speed. Good rigidity of machine good rigidity clamp of tool and workpiece. Short tool overhang Normal feed rate normal speed. Meddle rigidity of machine meddle rigidity clamp of tool and workpiece. Normal tool overhang High feed rate reduced speed. Low rigidity of machine low rigidity clamp of tool and workpiece. Long tool overhang K Cast iron N Non-ferrous materials Super alloys and titanium Hardened steels and irons (greater than 45 HRC) Light machining General purpose Heavy machining Material group Geometry Grade Geometry Grade Geometry Grade P1-P2 P3-P4 P5-P6 M1-M2 M3 K1-K2 K3 N1-N2 .F..LNJ K313 .E..LDJ KC410M .E..LDJ KC410M N3 .E..LDJ KC410M .E..LDJ KC410M .E..LDJ KC410M S1-S2 S3 S4 H1 z - A-f - t 254 NORGAU Indexable cutting tools 023 190
