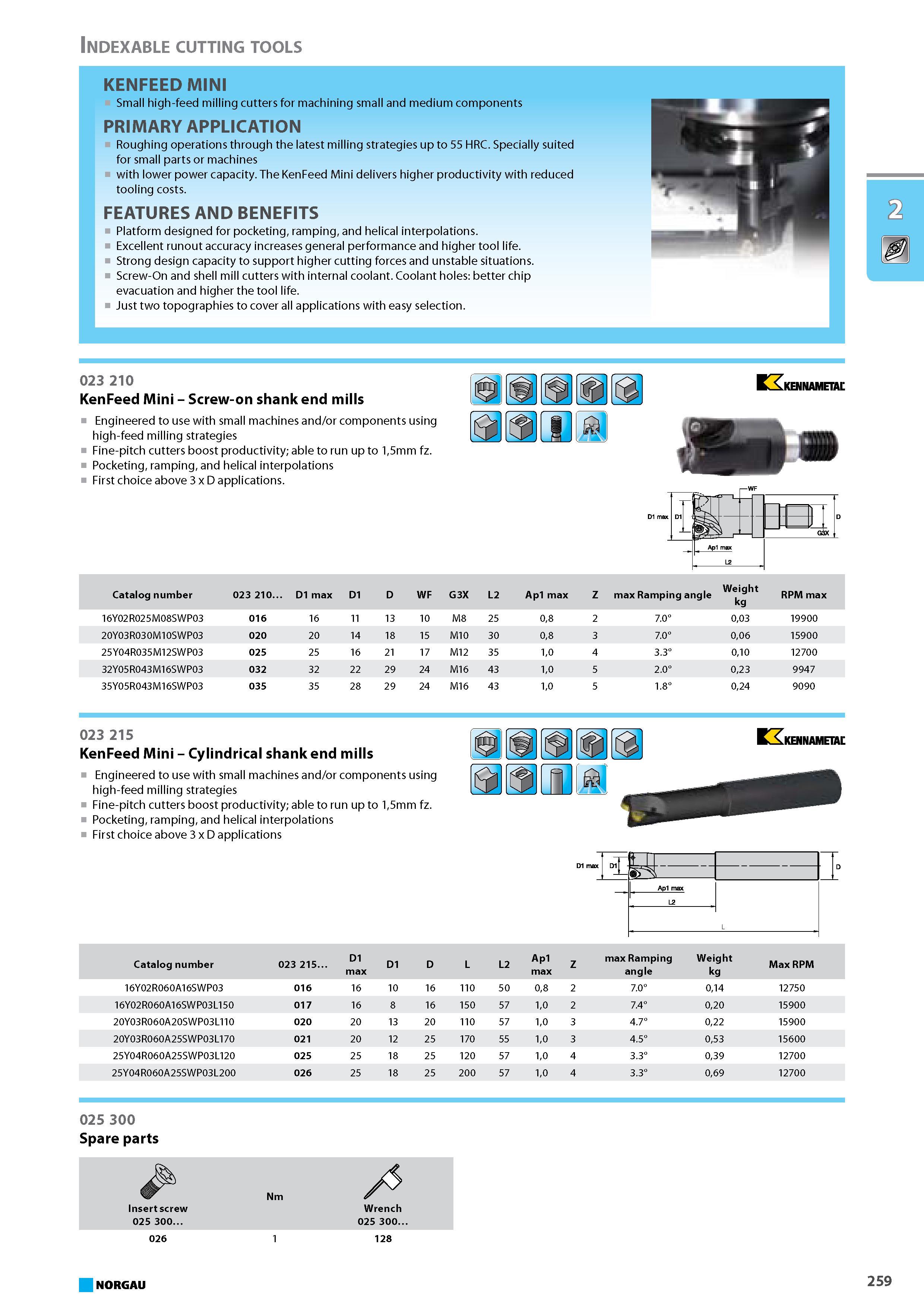

Small high-feed milling cutters for machining small and medium components PRIMARY APPLICATION Roughing operations through the latest milling strategies up to 55 HRC. Specially suited for small parts or machines with lower power capacity. The KenFeed Mini delivers higher productivity with reduced tooling costs. FEATURES AND BENEFITS Platform designed for pocketing ramping and helical interpolations. Excellent runout accuracy increases general performance and higher tool life. Strong design capacity to support higher cutting forces and unstable situations. Screw-On and shell mill cutters with internal coolant. Coolant holes better chip evacuation and higher the tool life. Just two topographies to cover all applications with easy selection. 023 210 KenFeed Mini - Screw-on shank end mills Engineered to use with small machines and or components using high-feed milling strategies Fine-pitch cutters boost productivity able to run up to 15mm fz. Pocketing ramping and helical interpolations First choice above 3 x D applications. Catalog number 023 210. D1 max D1 D WF G3X L2 Ap1 max Z max Ramping angle Weight kg RPM max 16Y02 R025M08SWP03 016 16 11 13 10 M8 25 08 2 7.0 003 19900 20Y03R030M10SWP03 020 20 14 18 15 M10 30 08 3 7.0 006 15900 25Y04R035M12SWP03 025 25 16 21 17 M12 35 10 4 3.3 010 12700 32Y05R043M16SWP03 032 32 22 29 24 M16 43 10 5 2.0 023 9947 35Y05R043M16SWP03 035 35 28 29 24 M16 43 10 5 1.8 024 9090 023 215 KenFeed Mini - Cylindrical shank end mills Engineered to use with small machines and or components using high-feed milling strategies Fine-pitch cutters boost productivity able to run up to 15mm fz. Pocketing ramping and helical interpolations First choice above 3 x D applications ax J Dl u Ap1 max L2 Catalog number 023 215. D1 max D1 D L L2 Ap1 max Z max Ramping angle Weight kg Max RPM 16Y02R060A16SWP03 016 16 10 16 110 50 08 2 7.0 014 12750 16Y02 R060A16SW P03 L150 017 16 8 16 150 57 10 2 7.4 020 15900 20Y03R060A20SWP03L110 020 20 13 20 110 57 10 3 4.7 022 15900 20Y03R060A25SWP03L170 021 20 12 25 170 55 10 3 4.5 053 15600 25Y04R060A25SWP03L120 025 25 18 25 120 57 10 4 3.3 039 12700 25Y04R060A25SWP03L200 026 25 18 25 200 57 10 4 3.3 069 12700 025 300 Spare parts Insert screw 025 300. Nm Wrench 025 300. 026 128 NORGAU 259 Indexable cutting tools KENFEED MINI
