Coating Grade description A high-performance TiAlN-PVD-coated carbide grade for milling steel stainless steel and ductile cast iron. The good thermal shock resistance

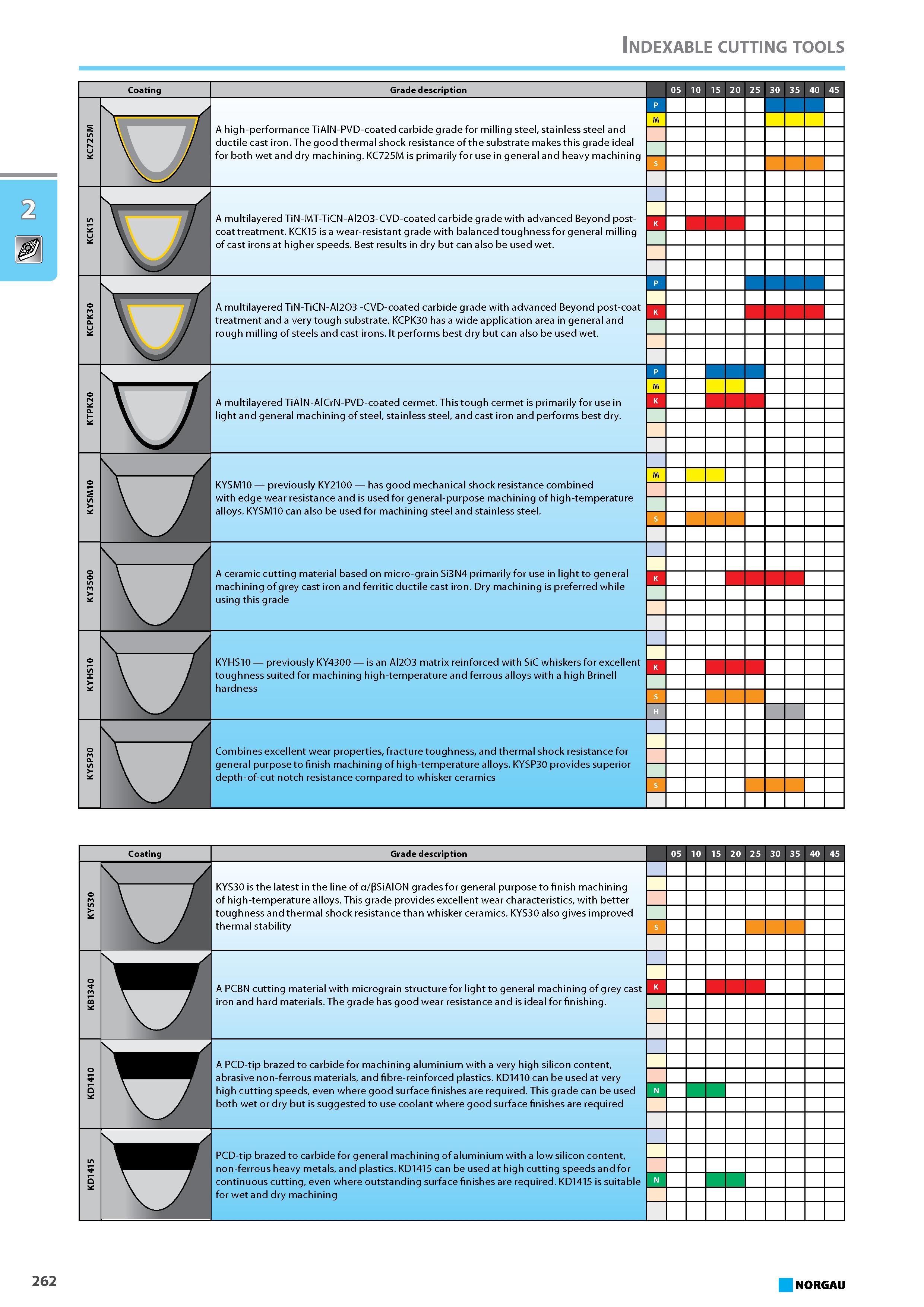

Coating Grade description A high-performance TiAlN-PVD-coated carbide grade for milling steel stainless steel and ductile cast iron. The good thermal shock resistance of the substrate makes this grade ideal for both wet and dry machining. KC725M is primarily for use in general and heavy machining 10 15 20 25 30 35 40 45 XI A multilayered TiN-MT-TiCN-Al2O3-CVD-coated carbide grade with advanced Beyond postcoat treatment. KCK15 is a wear-resistant grade with balanced toughness for general milling of cast irons at higher speeds. Best results in dry but can also be used wet. XI A multilayered TiN-TiCN-Al2O3 -CVD-coated carbide grade with advanced Beyond post-coat treatment and a very tough substrate. KCPK30 has a wide application area in general and rough milling of steels and cast irons. It performs best dry but can also be used wet. X7 A multilayered TiAlN-AlCrN-PVD-coated cermet. This tough cermet is primarily for use in light and general machining of steel stainless steel and cast iron and performs best dry. KYSM10 previously KY2100 has good mechanical shock resistance combined with edge wear resistance and is used for general-purpose machining of high-temperature alloys. KYSM10 can also be used for machining steel and stainless steel. A ceramic cutting material based on micro-grain Si3N4 primarily for use in light to general machining of grey cast iron and ferritic ductile cast iron. Dry machining is preferred while using this grade KYHS10 previously KY4300 is an Al2O3 matrix reinforced with SiC whiskers for excellent toughness suited for machining high-temperature and ferrous alloys with a high Brinell hardness Combines excellent wear properties fracture toughness and thermal shock resistance for general purpose to finish machining of high-temperature alloys. KYSP30 provides superior depth-of-cut notch resistance compared to whisker ceramics M M Coating N Grade description KYS30 is the latest in the line of a pSiAlON grades for general purpose to finish machining of high-temperature alloys. This grade provides excellent wear characteristics with better toughness and thermal shock resistance than whisker ceramics. KYS30 also gives improved thermal stability 10 15 20 25 30 35 40 45 S A PCBN cutting material with micrograin structure for light to general machining of grey cast iron and hard materials. The grade has good wear resistance and is ideal for finishing. A PCD-tip brazed to carbide for machining aluminium with a very high silicon content abrasive non-ferrous materials and fibre-reinforced plastics. KD1410 can be used at very high cutting speeds even where good surface finishes are required. This grade can be used both wet or dry but is suggested to use coolant where good surface finishes are required N PCD-tip brazed to carbide for general machining of aluminium with a low silicon content non-ferrous heavy metals and plastics. KD1415 can be used at high cutting speeds and for continuous cutting even where outstanding surface finishes are required. KD1415 is suitable for wet and dry machining 262 NORGAU Indexable cutting tools
