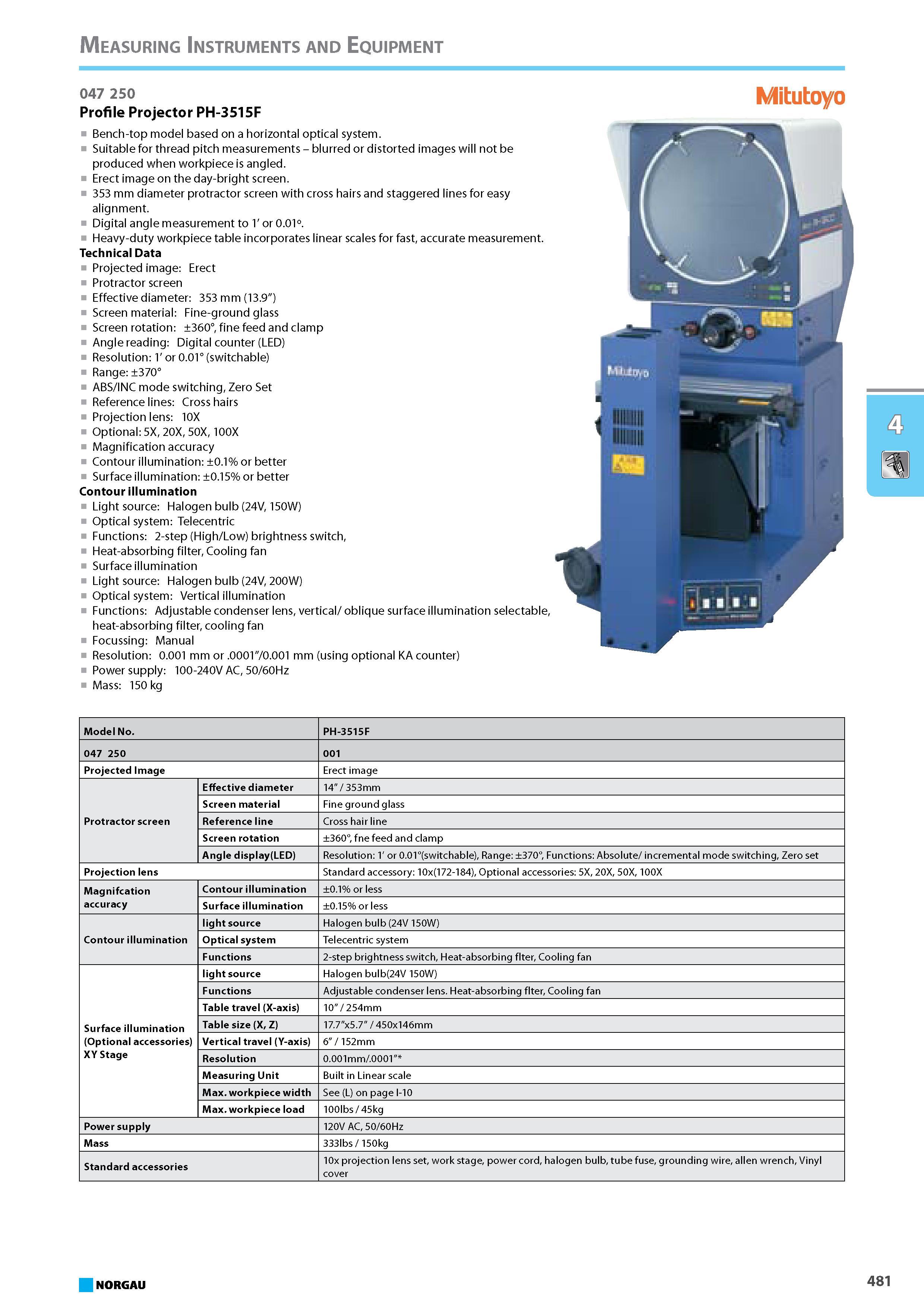

Profile Projector PH-3515F Bench-top model based on a horizontal optical system Suitable for thread pitch measurements - blurred or distorted images will not be produc

Profile Projector PH-3515F Bench-top model based on a horizontal optical system Suitable for thread pitch measurements - blurred or distorted images will not be produced when workpiece is angled. Erect image on the day-bright screen. 353 mm diameter protractor screen with cross hairs and staggered lines for easy alignment. Digital angle measurement to 1' or 0.01. Heavy-duty workpiece table incorporates linear scales for fast accurate measurement. Technical Data Projected image Erect Protractor screen Effective diameter 353 mm (13.9") Screen material Fine-ground glass Screen rotation 360 fine feed and clamp Angle reading Digital counter (LED) Resolution 1'or 0.01 (switchable) Range 370 ABS INC mode switching Zero Set Reference lines Cross hairs Projection lens 10X Optional 5X 20X 50X 100X Magnification accuracy Contour illumination 0.1% or better Surface illumination 0.15% or better Contour illumination Light source Halogen bulb (24V 150W) Optical system Telecentric Functions 2-step (High Low) brightness switch Heat-absorbing filter Cooling fan Surface illumination Light source Halogen bulb (24V 200W) Optical system Vertical illumination Functions Adjustable condenser lens vertical oblique surface illumination selectable heat-absorbing filter cooling fan Focussing Manual Resolution 0.001 mm or .000170.001 mm (using optional KA counter) Power supply 100-240V AC 50 60HZ Mass 150 kg Model No. PH-3515F 047 250 001 Projected Image Erect image Protractor screen Effective diameter 14" 353mm Screen material Fine ground glass Reference line Cross hair line Screen rotation 360 fne feed and clamp Angle display(LED) Resolution 1' or 0.01(switchable) Range 370 Functions Absolute incremental mode switching Zero set Projection lens Standard accessory 10x(172-184) Optional accessories 5X 20X 50X 100X Magnifcation accuracy Contour illumination 0.1% or less Surface illumination 0.15% or less Contour illumination light source Halogen bulb (24V 150W) Optical system Telecentric system Functions 2-step brightness switch Heat-absorbing flter Cooling fan Surface illumination (Optional accessories) XY Stage light source Halogen bulb(24V 150W) Functions Adjustable condenser lens. Heat-absorbing flter Cooling fan Table travel (X-axis) 10" 254mm Table size (X Z) 17.7"x5.7" 450x146mm Vertical travel (Y-axis) 6" 152mm Resolution 0.001mm .0001" Measuring Unit Built in Linear scale Max. workpiece width See (L) on page I-10 Max. workpiece load 100lbs 45kg Power supply 120V AC 50 60Hz Mass 333lbs 150kg Standard accessories 10x projection lens set work stage power cord halogen bulb tube fuse grounding wire allen wrench Vinyl cover NORGAU 481 Measuring Instruments and Equipment 047 250
