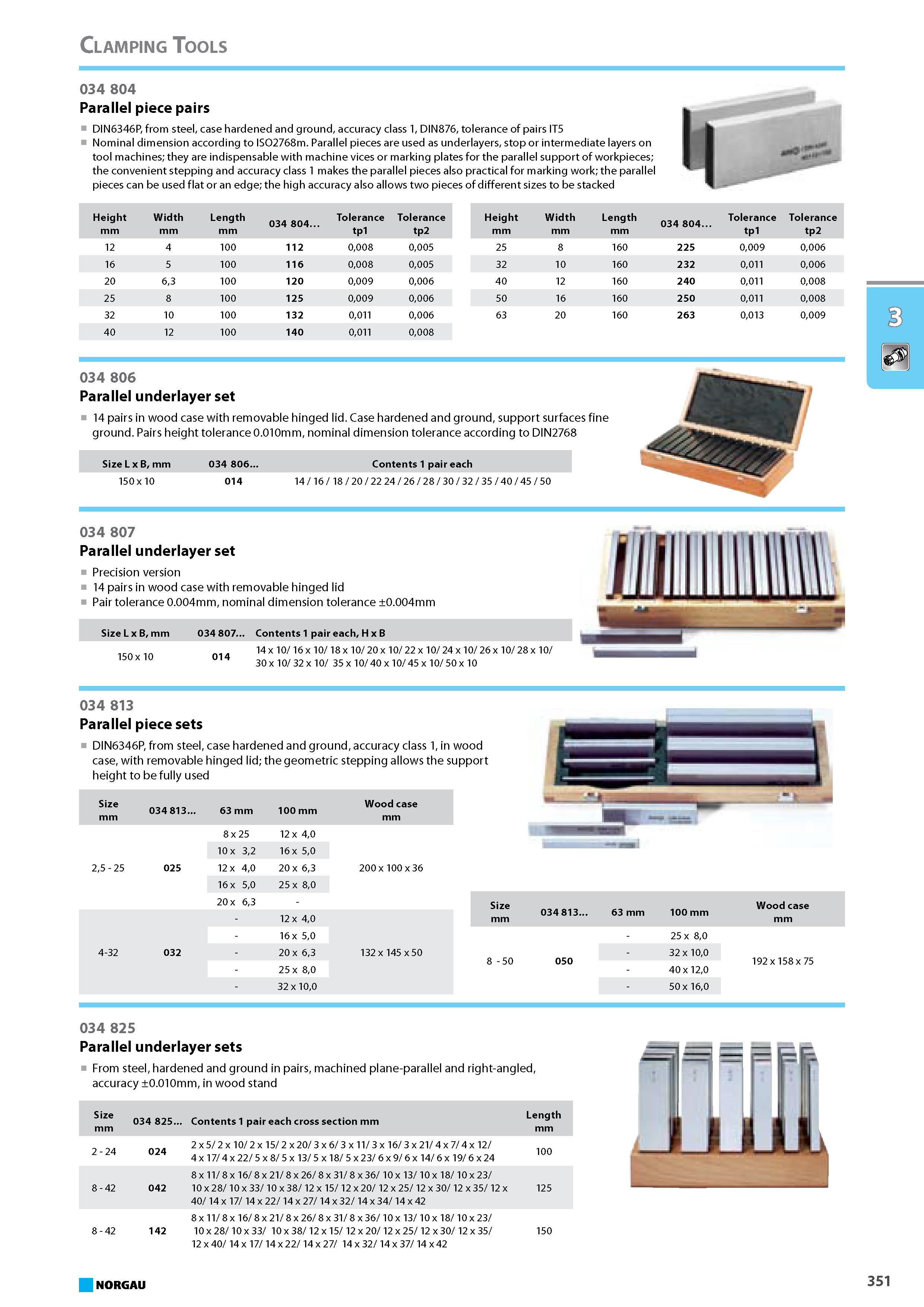

Parallel piece pairs DIN6346P from steel case hardened and ground accuracy class 1 DIN876 tolerance of pairs IT5 Nominal dimension according to ISO2768m. Parallel pieces are used as underlayers stop or intermediate layers on tool machines they are indispensable with machine vices or marking plates for the parallel support of workpieces the convenient stepping and accuracy class 1 makes the parallel pieces also practical for marking work the parallel pieces can be used flat or an edge the high accuracy also allows two pieces of different sizes to be stacked 034 806 Parallel underlayer set 14 pairs in wood case with removable hinged lid. Case hardened and ground support surfaces fine ground. Pairs height tolerance 0.010mm nominal dimension tolerance according to DIN2768 Size L x B mm 034 806 Contents 1 pair each 150 x 10 014 14 16 18 20 22 24 26 28 30 32 35 40 45 50 Height mm Width mm Length mm 034 804. Tolerance tp1 Tolerance tp2 Height mm Width mm Length mm 034 804. Tolerance tp1 Tolerance tp2 12 4 100 112 0008 0005 25 8 160 225 0009 0006 16 5 100 116 0008 0005 32 10 160 232 0011 0006 20 63 100 120 0009 0006 40 12 160 240 0011 0008 25 8 100 125 0009 0006 50 16 160 250 0011 0008 32 10 100 132 0011 0006 63 20 160 263 0013 0009 40 12 100 140 0011 0008 034 807 Parallel underlayer set Precision version 14 pairs in wood case with removable hinged lid Pair tolerance 0.004mm nominal dimension tolerance 0.004mm Size L x B mm 034 807 Contents 1 pair each H x B 14 x 10 16 x 10 18 x 10 20 x 10 22 x 10 24 x 10 26 x 10 28 x 10 30 x 10 32 x 10 35 x 10 40 x 10 45 x 10 50 x 10 034 813 Parallel piece sets DIN6346P from steel case hardened and ground accuracy class 1 in wood case with removable hinged lid the geometric stepping allows the support height to be fully used Size mm 034 813 63 mm 100 mm Wood case mm 8 x 25 12 x 40 10 x 32 16 x 50 25 - 25 025 12 x 40 20 x 63 200 x 100 x 36 16 x 50 25 x 80 20 x 63 12 x 40 - 16 x 50 4-32 032 - 20 x 63 132 x 145 x 50 - 25 x 80 - 32 x 100 Size 034 813 63 mm 100 mm Wood case mm 8 - 50 050 25 x 80 32 x 100 40 x 120 50 x 160 192 x 158 x 75 034 825 Parallel underlayer sets From steel hardened and ground in pairs machined plane-parallel and right-angled accuracy 0.010mm in wood stand Size mm 034 825 Contents 1 pair each cross section mm Length mm 2 - 24 024 2 x 5 2 x 10 2 x 15 2 x 20 3 x 6 3 x 11 3 x 16 3 x 21 4 x 7 4 x 12 100 4 x 17 4 x 22 5 x 8 5 x 13 5 x 18 5 x 23 6 x 9 6 x 14 6 x 19 6 x 24 8 x 11 8 x 16 8 x 21 8 x 26 8 x 31 8 x 36 10 x 13 10 x 18 10 x 23 8 - 42 042 10 x 28 10 x 33 10 x 38 12 x 15 12 x 20 12 x 25 12 x 30 12 x 35 12 x 40 14 x 17 14 x 22 14 x 27 14 x 32 14 x 34 14 x 42 125 8 x 11 8 x 16 8 x 21 8 x 26 8 x 31 8 x 36 10 x 13 10 x 18 10 x 23 8 - 42 142 10 x 28 10 x 33 10 x 38 12 x 15 12 x 20 12 x 25 12 x 30 12 x 35 12 x 40 14 x 17 14 x 22 14 x 27 14 x 32 14 x 37 14 x 42 150 150 x 10 NORGAU 351 Clamping Tools 034 804
