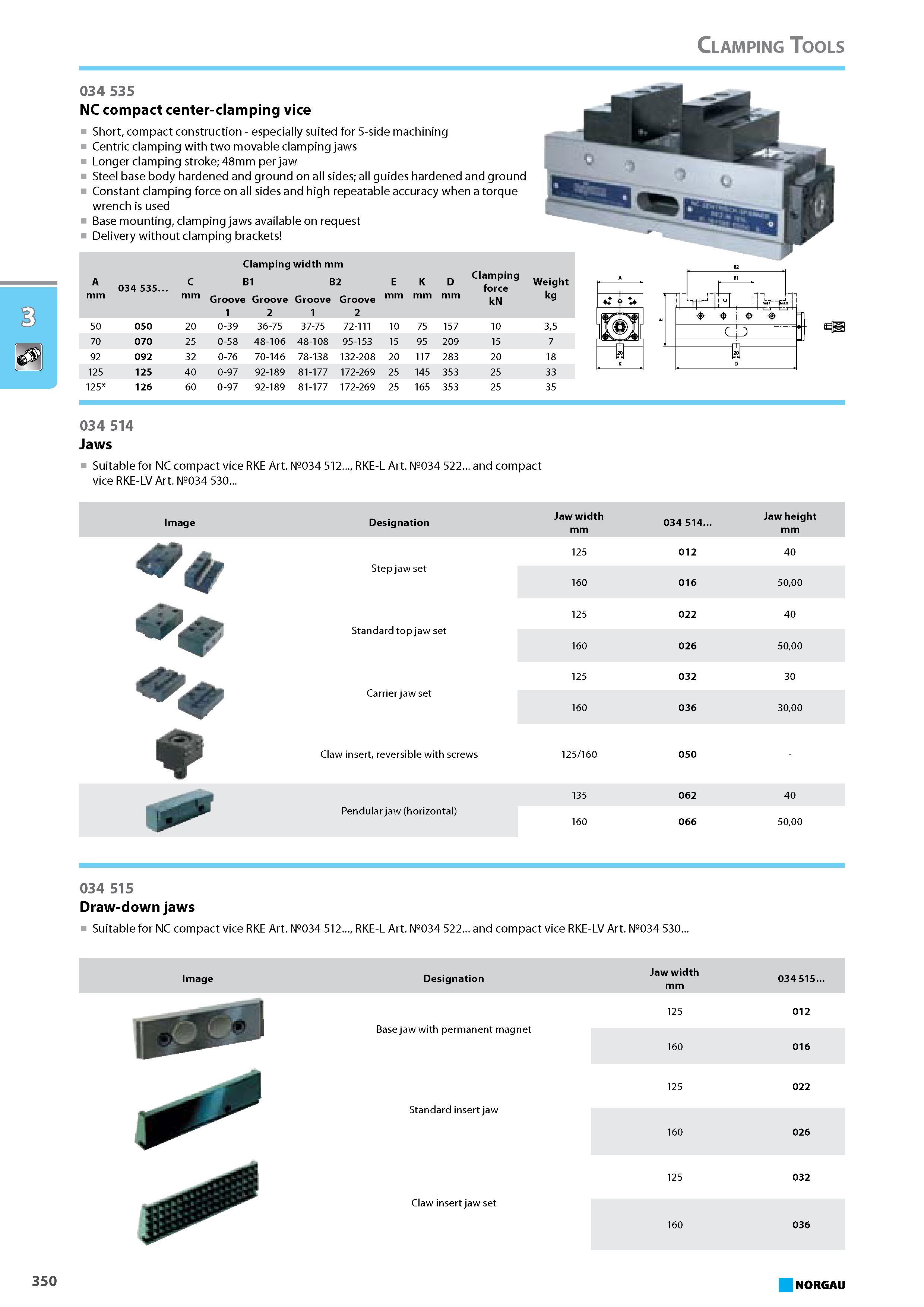

NC compact center-clamping vice Short compact construction especially suited for 5-side machining Centric clamping with two movable clamping jaws Longer clamping stroke 48mm per jaw Steel base body hardened and ground on all sides all guides hardened and ground Constant clamping force on all sides and high repeatable accuracy when a torque wrench is used Base mounting clamping jaws available on request Delivery without clamping brackets Clamping width mm A 034 535. C B1 B2 E K D Clamping force kN Weight mm Groove 1 Groove 2 Groove 1 Groove 2 mm kg 50 050 20 0-39 36-75 37-75 72-111 10 75 157 10 35 70 070 25 0-58 48-106 48-108 95-153 15 95 209 15 7 92 092 32 0-76 70-146 78-138 132-208 20 117 283 20 18 125 125 40 0-97 92-189 81-177 172-269 25 145 353 25 33 125 126 60 0-97 92-189 81-177 172-269 25 165 353 25 35 034 514 Jaws Suitable for NC compact vice RKE Art. N034 512 RKE-L Art. N034 522 and compact vice RKE-LV Art. N034 530 Image Designation Jaw width 034 514 Jaw height mm Step jaw set Standard top jaw set Carrier jaw set Claw insert reversible with screws Pendular jaw (horizontal) 125 160 125 160 125 160 125 160 135 160 012 016 022 026 032 036 40 50.00 40 50.00 30 30.00 062 066 40 5000 034 515 Draw-down jaws Suitable for NC compact vice RKE Art. N034 512 RKE-L Art. N034 522 and compact vice RKE-LV Art. N034 530 050 Jaw width Image Designation 034 515 mm 350 NORGAU Clamping Tools 034 535
