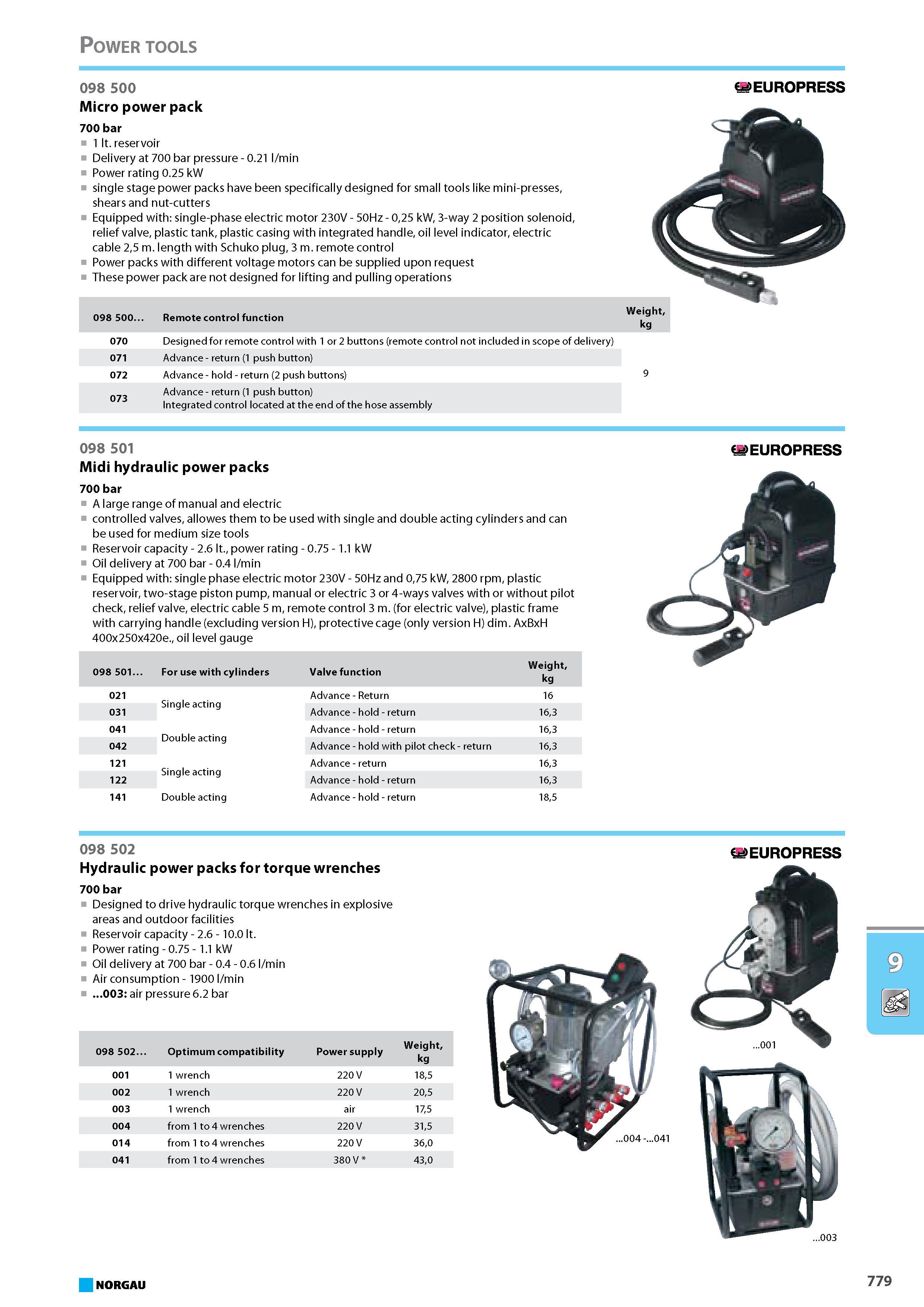

Micro power pack 700 bar 1 It. reservoir Delivery at 700 bar pressure - 0.21 min Power rating 0.25 kW single stage power packs have been specifically designed for small tools like mini-presses shears and nut-cutters Equipped with single-phase electric motor 230V - 50Hz - 025 kW 3-way 2 position solenoid relief valve plastic tank plastic casing with integrated handle oil level indicator electric cable 25 m. length with Schuko plug 3 m. remote control Power packs with different voltage motors can be supplied upon request These power pack are not designed for lifting and pulling operations 098 500 Remote control function Weight kg 070 Designed for remote control with 1 or 2 buttons (remote control not included in scope of delivery) 071 Advance - return (1 push button) 072 Advance - hold - return (2 push buttons) 9 073 Advance - return (1 push button) Integrated control located at the end of the hose assembly 098 501 p Midi hydraulic power packs 700 bar A large range of manual and electric controlled valves allowes them to be used with single and double acting cylinders and can be used for medium size tools Reservoir capacity - 2.6 lt. power rating - 0.75 - 1.1 kW Oil delivery at 700 bar - 0.4 min Equipped with single phase electric motor 230V - 50Hz and 075 kW 2800 rpm plastic reservoir two-stage piston pump manual or electric 3 or 4-ways valves with or without pilot check relief valve electric cable 5 m remote control 3 m. (for electric valve) plastic frame with carrying handle (excluding version H) protective cage (only version H) dim. AxBxH 400x250x420e. oil level gauge 141 Double acting Advance - hold - return 185 098 502 EUROPRESS Hydraulic power packs for torque wrenches 700 bar Designed to drive hydraulic torque wrenches in explosive areas and outdoor facilities Reservoir capacity - 2.6 - 10.0 lt. Power rating - 0.75 - 1.1 kW Oil delivery at 700 bar - 0.4 - 0.6 min Air consumption - 1900 min 003 air pressure 6.2 bar NORGAU 003 779 Power tools 098 500 is EUROPRESS
