Hydraulic power packs are designed to a modular concept to ensure complete interchangeability of components Using this system it is possible to order customized models

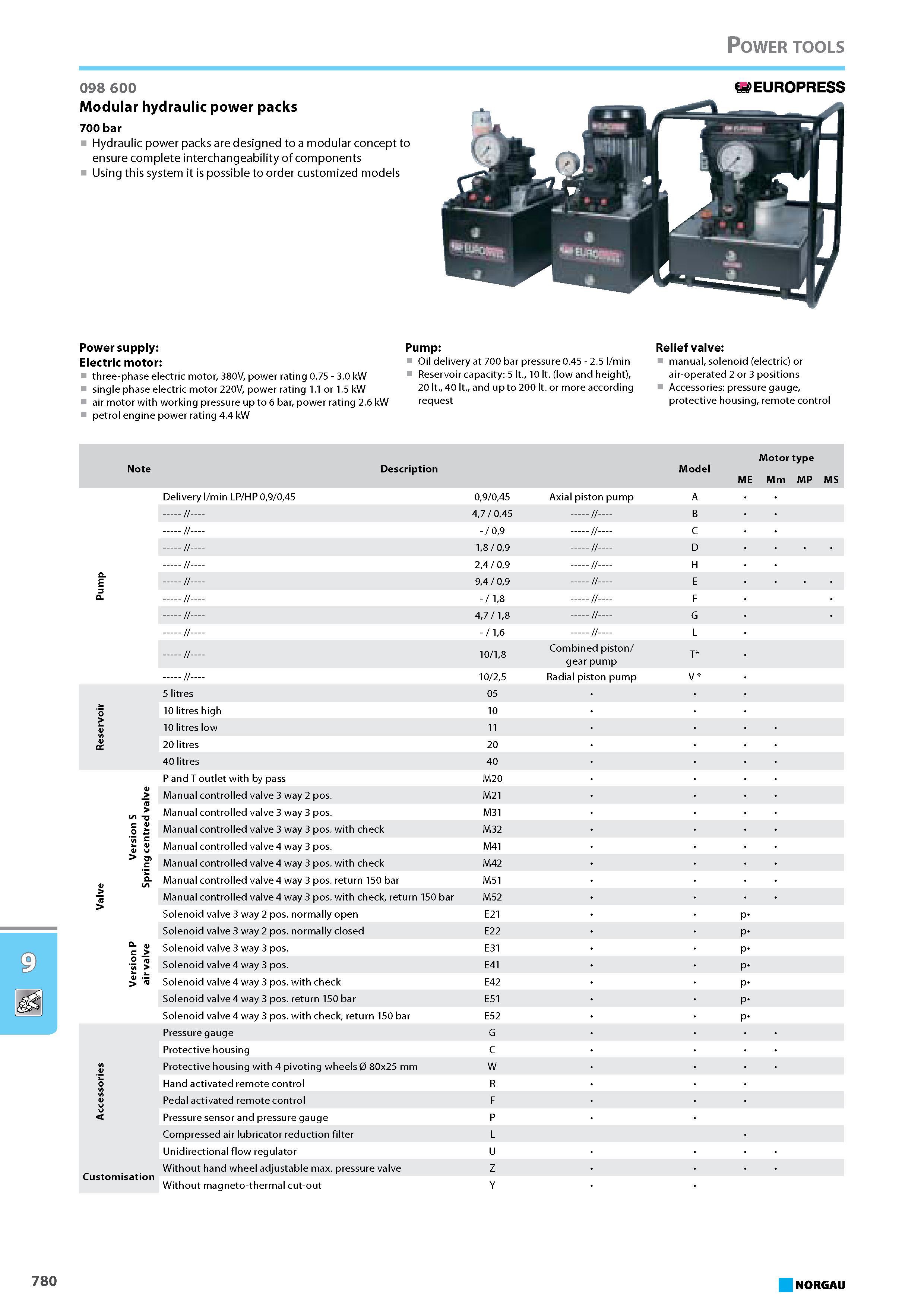

Hydraulic power packs are designed to a modular concept to ensure complete interchangeability of components Using this system it is possible to order customized models G3EUROPRESS Power supply Electric motor three-phase electric motor 380V power rating 0.75 - 3.0 kW single phase electric motor 220V power rating 1.1 or 1.5 kW Pump Oil delivery at 700 bar pressure 0.45 - 2.5 min Reservoir capacity 5 lt. 10 lt. (low and height) 20 lt. 40 lt. and up to 200 lt. or more according Relief valve manual solenoid (electric) or air-operated 2 or 3 positions Accessories pressure gauge air motor with working pressure up to 6 bar power rating 2.6 kW request protective housing remote control petrol engine power rating 4.4 kW Note Description Model Motor type ME Mm MP MS Delivery min LP HP 09 045 09 045 Axial piston pump A 47 045 B - 09 C 18 09 D 24 09 H p m u P 94 09 E - 18 F 47 18 G - 16 L 10 18 Combined piston gear pump T 10 25 Radial piston pump V 5 litres 05 Reservoir 10 litres high 10 10 litres low 11 20 litres 20 40 litres 40 P and T outlet with by pass M20 Valve Version S Spring centred valve Manual controlled valve 3 way 2 pos. M21 Manual controlled valve 3 way 3 pos. M31 Manual controlled valve 3 way 3 pos. with check M32 Manual controlled valve 4 way 3 pos. M41 Manual controlled valve 4 way 3 pos. with check M42 Manual controlled valve 4 way 3 pos. return 150 bar M51 Manual controlled valve 4 way 3 pos. with check return 150 bar M52 Solenoid valve 3 way 2 pos. normally open E21 P Solenoid valve 3 way 2 pos. normally closed E22 P Version P air valve Solenoid valve 3 way 3 pos. E31 P Solenoid valve 4 way 3 pos. E41 P Solenoid valve 4 way 3 pos. with check E42 P Solenoid valve 4 way 3 pos. return 150 bar E51 P Solenoid valve 4 way 3 pos. with check return 150 bar E52 P Pressure gauge G Protective housing C s ei ro s s e u u Protective housing with 4 pivoting wheels 0 80x25 mm W Hand activated remote control R Pedal activated remote control F Pressure sensor and pressure gauge P Compressed air lubricator reduction filter L Unidirectional flow regulator U Customisation Without hand wheel adjustable max. pressure valve Z Without magneto-thermal cut-out Y NORGAU Power tools ED 780 098 600 Modular hydraulic power packs 700 bar
