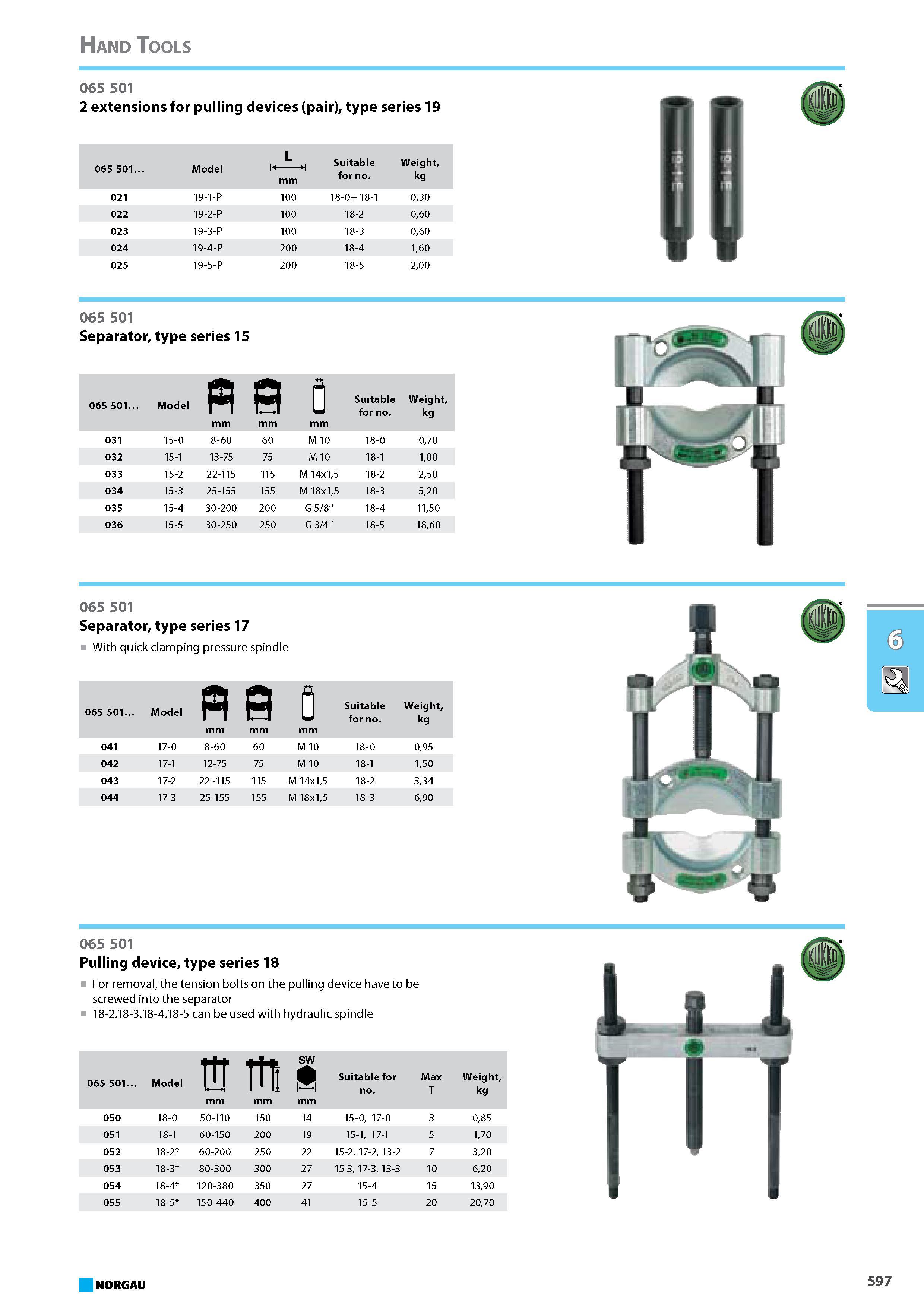

Pulling device type series 18 For removal the tension bolts on the pulling device have to be screwed into the separator 18-2.18-3.18-4.18-5 can be used with hydraulic spindle 065 501. Model m w w mm mi mm SW mm Suitable for no. Max T Weight kg 050 18-0 50-110 150 14 15-0 17-0 3 085 051 18-1 60-150 200 19 15-1 17-1 5 170 052 18-2 60-200 250 22 15-2 17-2 13-2 7 320 053 18-3 80-300 300 27 15 3 17-3 13-3 10 620 054 18-4 120-380 350 27 15-4 15 1390 055 18-5 150-440 400 41 15-5 20 2070 NORGAU 597 Hand Tools 065 501 2 extensions for pulling devices (pair) type series 19 065 501 Model L mm Suitable for no. Weight kg 021 19-1-P 100 18-0+ 18-1 030 022 19-2-P 100 18-2 060 023 19-3-P 100 18-3 060 024 19-4-P 200 18-4 160 025 19-5-P 200 18-5 200 065 501 Separator type series 15 065 501. Model mm s mm Q mm Suitable for no. Weight kg 031 15-0 8-60 60 M 10 18-0 070 032 15-1 13-75 75 M 10 18-1 100 033 15-2 22-115 115 M 14x15 18-2 250 034 15-3 25-155 155 M 18x15 18-3 520 035 15-4 30-200 200 G 5/8'' 18-4 1150 036 15-5 30-250 250 G 3/4'' 18-5 1860 065 501 Separator type series 17 With quick clamping pressure spindle 065 501. Model fl mm a mm 0 mm Suitable for no. Weight kg 041 17-0 8-60 60 M 10 18-0 095 042 17-1 12-75 75 M 10 18-1 150 043 17-2 22 -115 115 M 14x15 18-2 334 044 17-3 25-155 155 M 18x15 18-3 690 El 065 501
