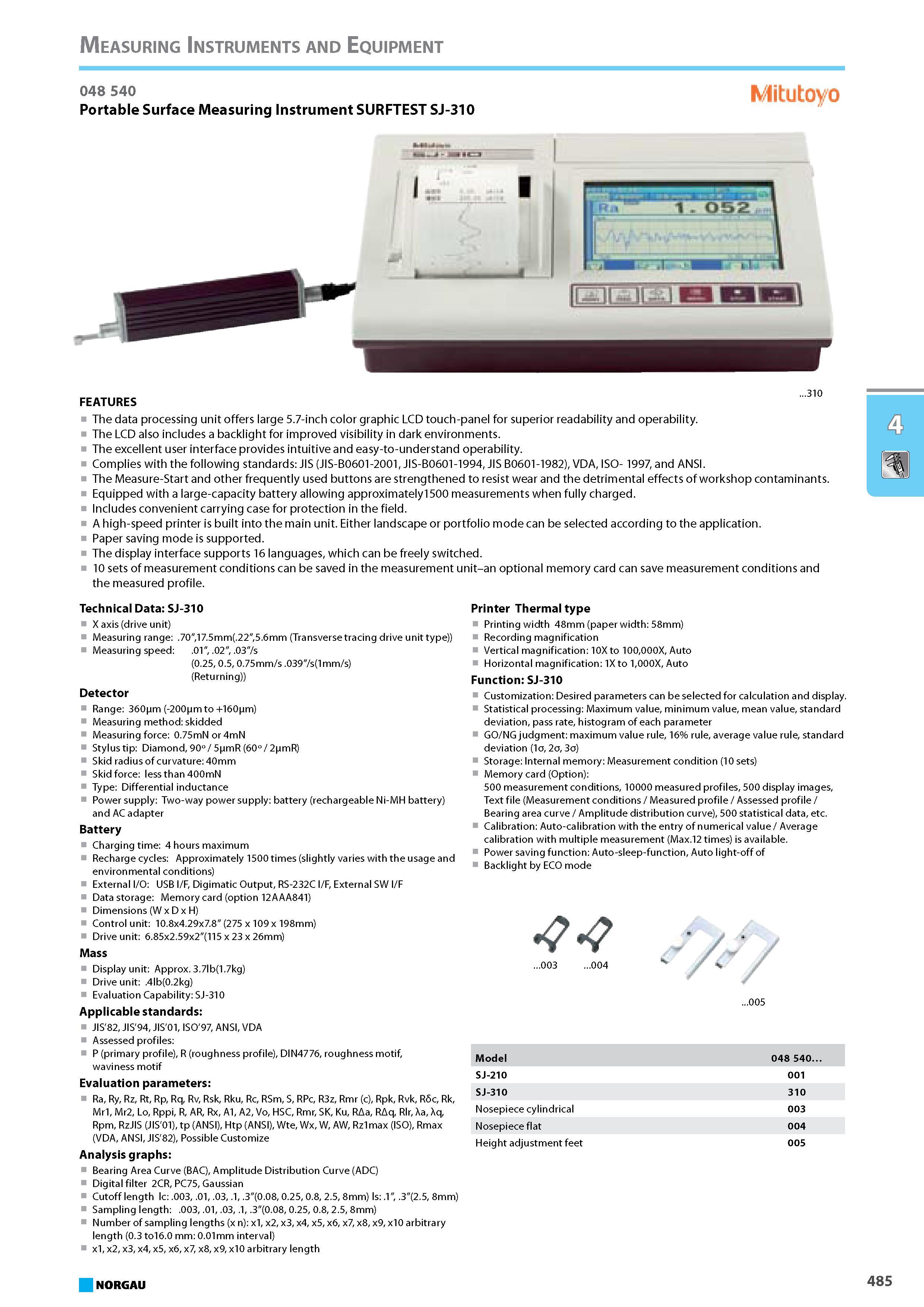

Portable Surface Measuring Instrument SURFTEST SJ-310 Mitutoyo 310 FEATURES The data processing unit offers large 5.7-inch color graphic LCD touch-panel for superior readability and operability. The LCD also includes a backlight for improved visibility in dark environments. The excellent user interface provides intuitive and easy-to-understand operability. Complies with the following standards JIS (JIS-B0601-2001 JIS-B0601-1994 JIS B0601-1982) VDA ISO- 1997 and ANSI. The Measure-Start and other frequently used buttons are strengthened to resist wear and the detrimental effects of workshop contaminants. Equipped with a large-capacity battery allowing approximately1500 measurements when fully charged. Includes convenient carrying case for protection in the field. A high-speed printer is built into the main unit. Either landscape or portfolio mode can be selected according to the application. Paper saving mode is supported. The display interface supports 16 languages which can be freely switched. 10 sets of measurement conditions can be saved in the measurement unit-an optional memory card can save measurement conditions and the measured profile. Technical Data SJ-310 X axis (drive unit) Measuring range .70"(17.5mm(.22"5.6mm (Transverse tracing drive unit type)) Measuring speed .01" .02" .03" s (0.25 0.5 0.75mm s .039" s(1mm s) (Returning)) Detector Range 360pm (-200pm to +160pm) Measuring method skidded Measuring force 0.75mN or 4mN Stylus tip Diamond 90 5pmR (60 2pmR) Skid radius of curvature 40mm Skid force less than 400mN Type Differential inductance Power supply Two-way power supply battery (rechargeable Ni-MH battery) and AC adapter Battery Charging time 4 hours maximum Recharge cycles Approximately 1500 times (slightly varies with the usage and environmental conditions) External O USB F Digimatic Output RS-232C F External SW F Data storage Memory card (option 12AAA841) Dimensions (W x D x H) Control unit 10.8x4.29x7.8" (275 x 109 x 198mm) Drive unit 6.85x2.59x2"(115 x 23 x 26mm) Mass Display unit Approx. 3.7lb(1.7kg) Drive unit .4lb(0.2kg) Evaluation Capability SJ-310 Applicable standards JIS'82 JIS'94 JIS'01 ISO'97 ANSI VDA Assessed profiles P (primary profile) R (roughness profile) DIN4776 roughness motif waviness motif Evaluation parameters Ra Ry Rz Rt Rp Rq Rv Rsk Rku Rc RSm S RPc R3z Rmr (c) Rpk Rvk R6c Rk Mr1 Mr2 Lo Rppi R AR Rx A1 A2 Vo HSC Rmr SK Ku RAa RAq Rlr Aa Aq Rpm RzJIS (JIS'01) tp (ANSI) Htp (ANSI) Wte Wx W AW Rz1 max (ISO) Rmax (VDA ANSI JIS'82) Possible Customize Analysis graphs Bearing Area Curve (BAC) Amplitude Distribution Curve (ADC) Digital filter 2CR PC75 Gaussian Cutoff length lc .003 .01 .03 .1 .3"(0.08 0.25 0.8 2.5 8mm) ls .1" .3"(2.5 8mm) Sampling length .003 .01 .03 .1 .3"(0.08 0.25 0.8 2.5 8mm) Number of sampling lengths (x n) x1 x2 x3 x4 x5 x6 x7 x8 x9 x10 arbitrary length (0.3 to16.0 mm 0.01mm interval) x1 x2 x3 x4 x5 x6 x7 x8 x9 x10 arbitrary length Printer Thermal type Printing width 48mm (paper width 58mm) Recording magnification Vertical magnification 10X to 100000X Auto Horizontal magnification 1X to 1000X Auto Function SJ-310 Customization Desired parameters can be selected for calculation and display. Statistical processing Maximum value minimum value mean value standard deviation pass rate histogram of each parameter GO NG judgment maximum value rule 16% rule average value rule standard deviation (1a 2a 3a) Storage Internal memory Measurement condition (10 sets) Memory card (Option) 500 measurement conditions 10000 measured profiles 500 display images Text file (Measurement conditions Measured profile Assessed profile Bearing area curve Amplitude distribution curve) 500 statistical data etc. Calibration Auto-calibration with the entry of numerical value Average calibration with multiple measurement (Max.12 times) is available. Power saving function Auto-sleep-function Auto light-off of Backlight by ECO mode 003 004 005 Model 048 540. SJ-210 001 SJ-310 310 Nosepiece cylindrical 003 Nosepiece flat 004 Height adjustment feet 005 NORGAU 485 Measuring Instruments and Equipment 048 540
