Versions DIN-69871 A shank without internal cooling DIN-69871 AD with a central hole DIN-69871 AD+B with a central hole and the holes in the flange Fe

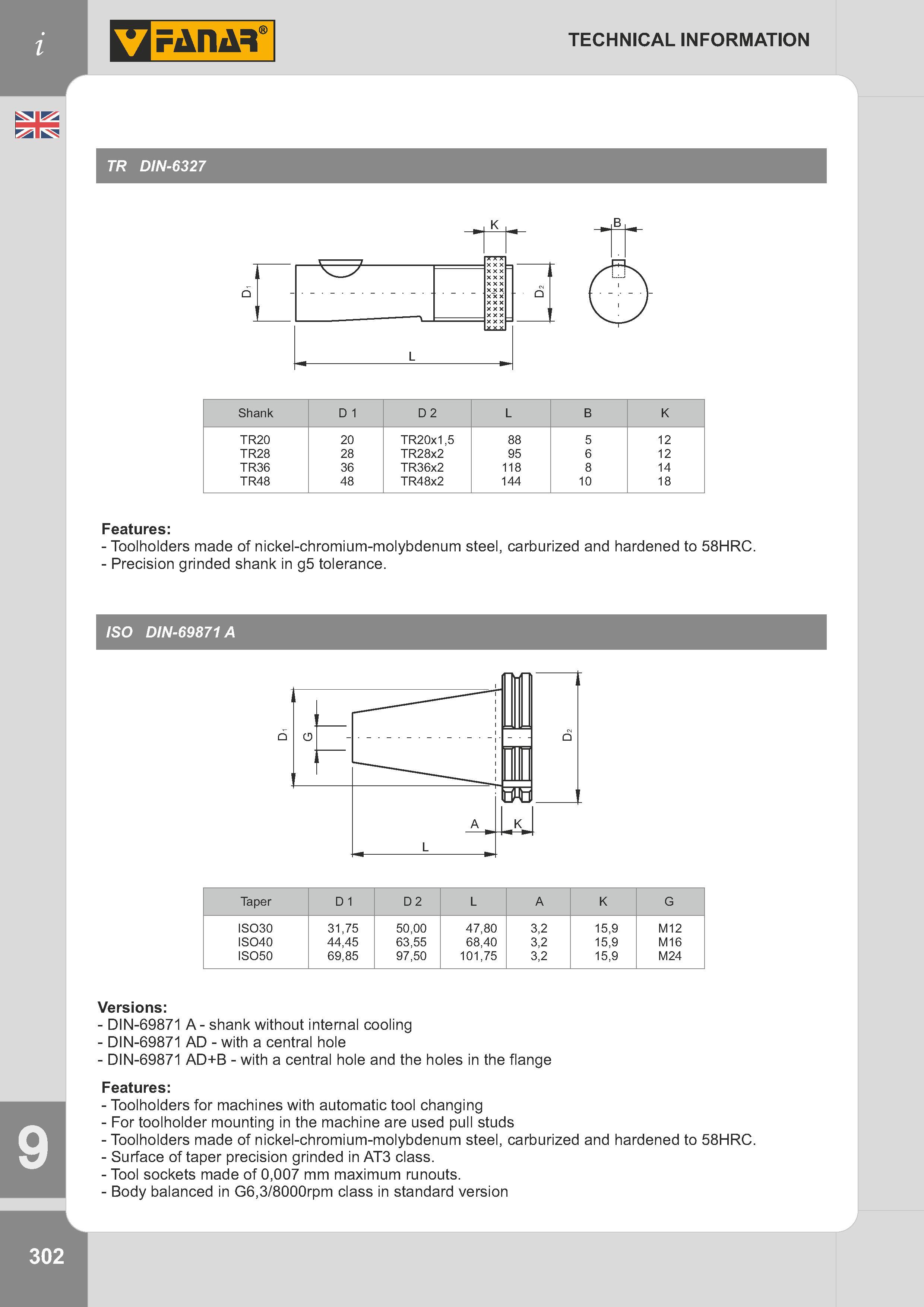

Versions DIN-69871 A shank without internal cooling DIN-69871 AD with a central hole DIN-69871 AD+B with a central hole and the holes in the flange Features Toolholders for machines with automatic tool changing - For toolholder mounting in the machine are used pull studs - Toolholders made of nickel-chromium-molybdenum steel, carburized and hardened to 58HRC. - Surface of taper precision grinded in AT3 class. - Tool sockets made of 0,007 mm maximum runouts. - Body balanced in G6,3/8000rpm class in standard version Q 302 TECHNICAL INFORMATION TR DIN-6327 Shank D 1 D 2 L B K TR20 20 TR20x1,5 88 5 12 TR28 28 TR28x2 95 6 12 TR36 36 TR36x2 118 8 14 TR48 48 TR48x2 144 10 18 Features: - Toolholders made of nickel-chromium-molybdenum steel, carburized and hardened to 58HRC. - Precision grinded shank in g5 tolerance. ISO DIN-69871 A Taper D 1 D 2 L A K G ISÜ30 31,75 50,00 47,80 3,2 15,9 M12 ISO40 44,45 63,55 68,40 3,2 15,9 M16 ISQ50 69,85 97,50 101,75 3,2 15,9 M24
