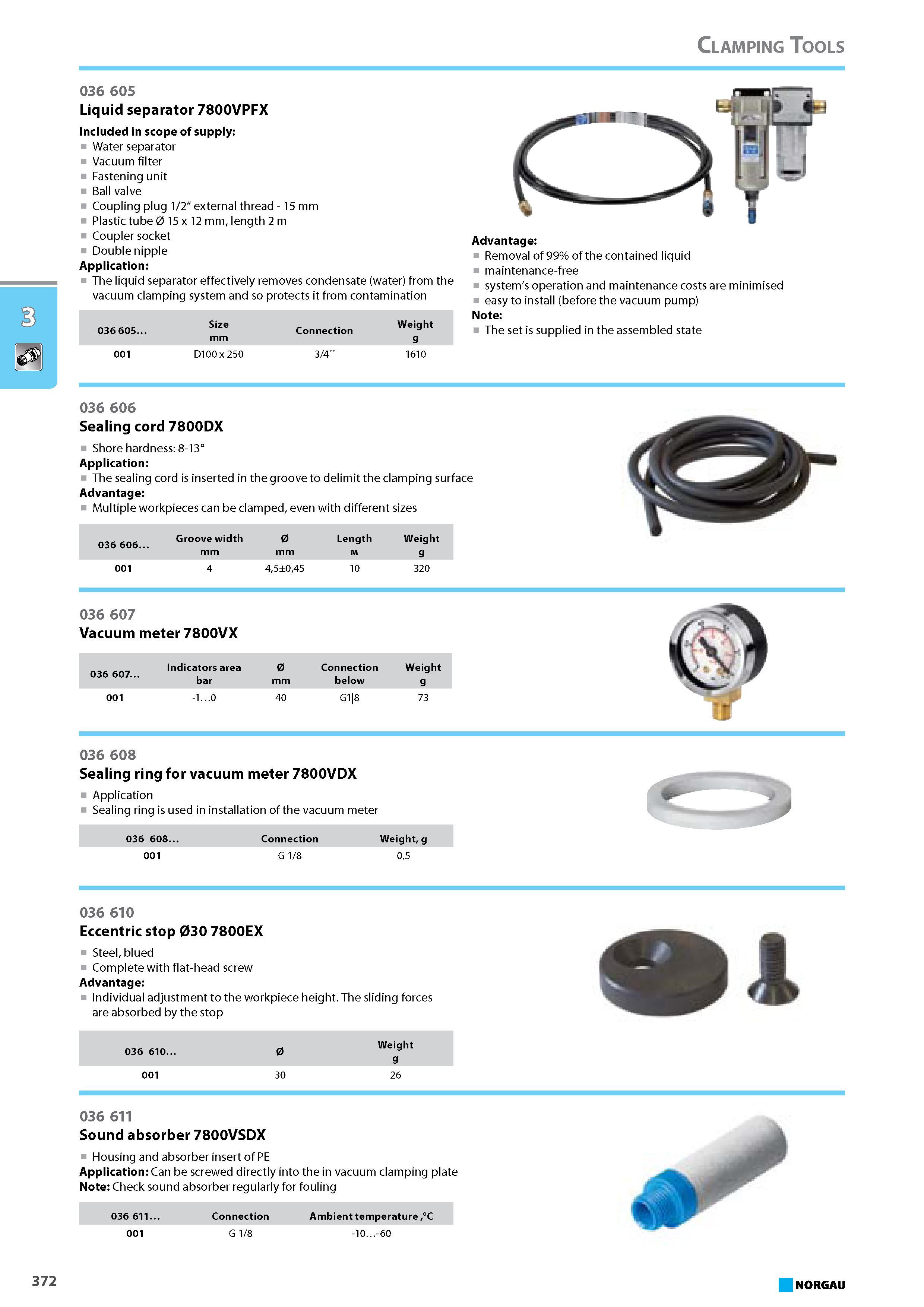

Liquid separator 7800VPFX Included in scope of supply Water separator Vacuum filter Fastening unit Ball valve Coupling plug 1/2" external thread - 15 mm Plastic tube 0 15 x 12 mm length 2 m Coupler socket Double nipple Application The liquid separator effectively removes condensate (water) from the vacuum clamping system and so protects it from contamination Advantage Removal of 99% of the contained liquid maintenance-free system's operation and maintenance costs are minimised easy to install (before the vacuum pump) 036 605. Size mm Connection Weight g Note The set is supplied in the assembled state 001 D100x250 3/4" 1610 036 606 Sealing cord 7800DX Shore hardness 8-13 Application The sealing cord is inserted in the groove to delimit the clamping surface Advantage Multiple workpieces can be clamped even with different sizes 036 606. Groove width 0 Length Weight mm M g 001 45045 10 320 036 607 Vacuum meter 7800VX 036 607. Indicators area bar 0 mm Connection below G1 8 Weight g 036 608 Sealing ring for vacuum meter 7800VDX Application Sealing ring is used in installation of the vacuum meter 036 608. Connection G 1 8 Weight g 05 036 610 Eccentric stop 030 7800EX Steel blued Complete with flat-head screw Advantage Individual adjustment to the workpiece height. The sliding forces are absorbed by the stop 036 610. 0 Weight g 001 30 26 036 611 Sound absorber 7800VSDX Housing and absorber insert of PE Application Can be screwed directly into the in vacuum clamping plate Note Check sound absorber regularly for fouling Connection Ambient temperature C G 1 8 -10.-60 4 001 1.0 40 73 001 001 372 NORGAU Clamping Tools 036 605
