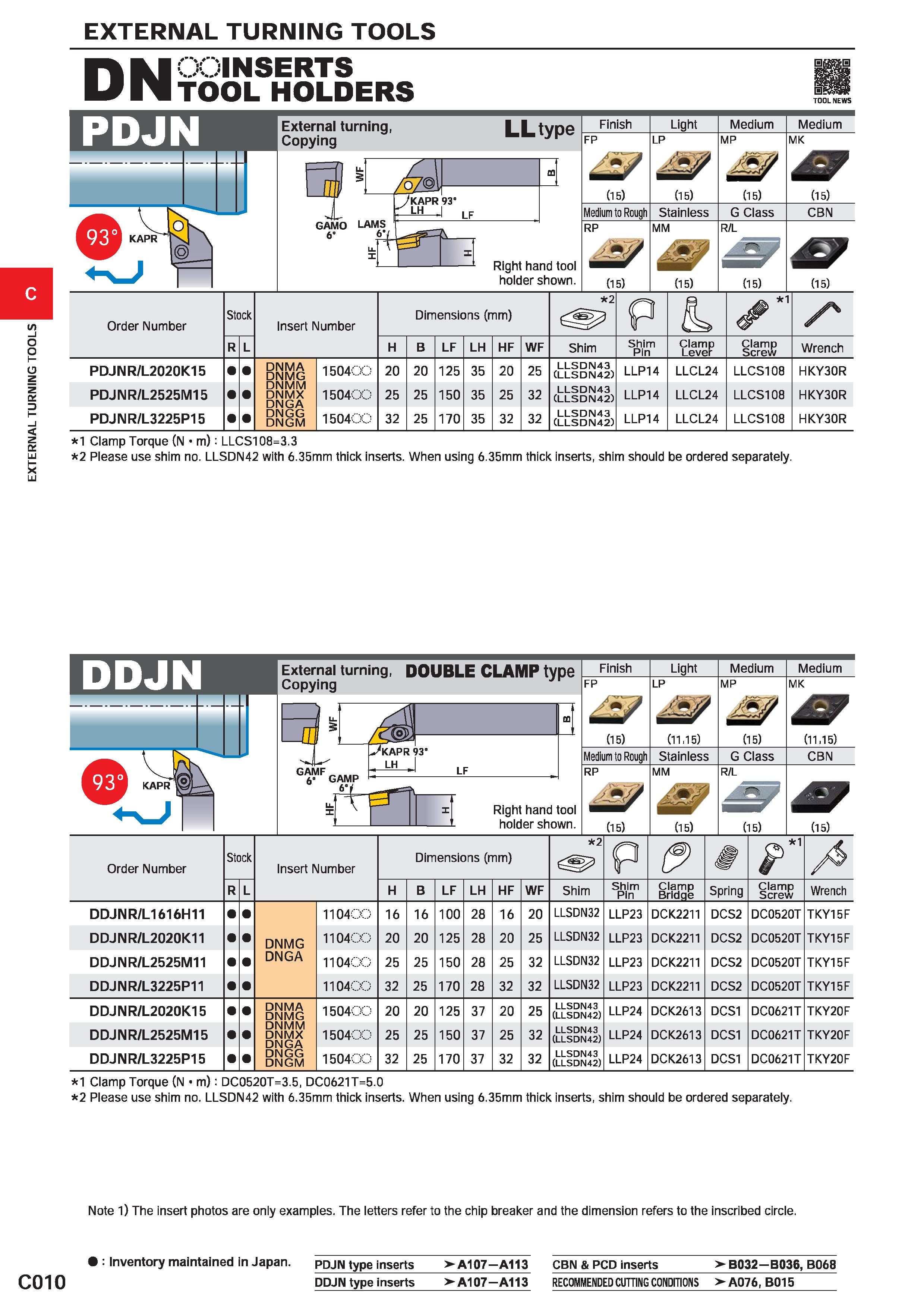

EXTERNAL TURNING TOOLS EXTERNAL TURNING TOOLS c C010 : V DN INSERTS TOOL HOLDERS 0S TOOL NEWS External turning, Copying LLtype Right hand tool holder shown. Finish Light Medium Medium FP LP MP MK £3 0 (15) (15) (15) (15) Medium to Rough Stainless G Class CBN RP MM R/L 2/ & (15) (15) (15) (15) Order Number Stock Insert Number Dimensions (mm) 2 P & 1 Z' R L H B LF LH HF WF Shim Shim Pin Clamp Lever Clamp Screw Wrench PDJNR/L2020K15 DNMA DNMG 1504: : 20 20 125 35 20 25 LLSDN43 (LLSDN42) LLP14 LLCL24 LLCS108 HKY30R PDJNR/L2525M15 DNMM DNMX DNGA 150400 25 25 150 35 25 32 LLSDN43 (LLSDN42) LLP14 LLCL24 LLCS108 HKY30R PDJNR/L3225P15 DNGG DNGM 150400 32 25 170 35 32 32 LLSDN43 (LLSDN42) LLP14 LLCL24 LLCS108 HKY30R 1 Clamp Torque (N m): LLCS108=3.3 2 Please use shim no. LLSDN42 with 6.35mm thick inserts. When using 6.35mm thick inserts, shim should be ordered separately. External turning, Copying DOUBLE CLAMP type Right hand tool holder shown. Finish Light Medium Medium FP LP MP MK £3 (15) (11,15) (15) (11,15) Medium to Rough Stainless G Class CBN RP MM R/L & (15) (15) (15) (15) Order Number Stock Insert Number Dimensions (mm) 2 P & 9 R L H B LF LH HF WF Shim Shim Pin Clamp Bridqe Spring Clamp Screw Wrench DDJNR/L1616H11 1104...: 16 16 100 28 16 20 LLSDN32 LLP23 DCK2211 DCS2 DC0520T TKY15F D D J N R/L2020K11 DNMG 1104 20 20 125 28 20 25 LLSDN32 LLP23 DCK2211 DCS2 DC0520T TKY15F DDJNR/L2525M11 DNGA 110400 25 25 150 28 25 32 LLSDN32 LLP23 DCK2211 DCS2 DC0520T TKY15F DDJNR/L3225P11 110400 32 25 170 28 32 32 LLSDN32 LLP23 DCK2211 DCS2 DC0520T TKY15F D D J N R/L2020K15 DNMA DNMG 150400 20 20 125 37 20 25 LLSDN43 (LLSDN42) LLP24 DCK2613 DCS1 DC0621T TKY20F DDJNR/L2525M15 DNMM DNMX DNGA 150400 25 25 150 37 25 32 LLSDN43 (LLSDN42) LLP24 DCK2613 DCS1 DC0621T TKY20F DDJNR/L3225P15 DNGG DNGM 150400 32 25 170 37 32 32 LLSDN43 (LLSDN42) LLP24 DCK2613 DCS1 DC0621T TKY20F 1 Clamp Torque (N m): DC0520T=3.5, DC0621T=5.0 2 Please use shim no. LLSDN42 with 6.35mm thick inserts. When using 6.35mm thick inserts, shim should be ordered separately. Note 1) The insert photos are only examples. The letters refer to the chip breaker and the dimension refers to the inscribed circle. : Inventory maintained in Japan. PDJN type inserts >A107-A113 CBN & PCD inserts >B032-B036, B068 DDJN type inserts >A107-A113 RECOMMENDED CUTTING CONDITIONS > A076, B015
