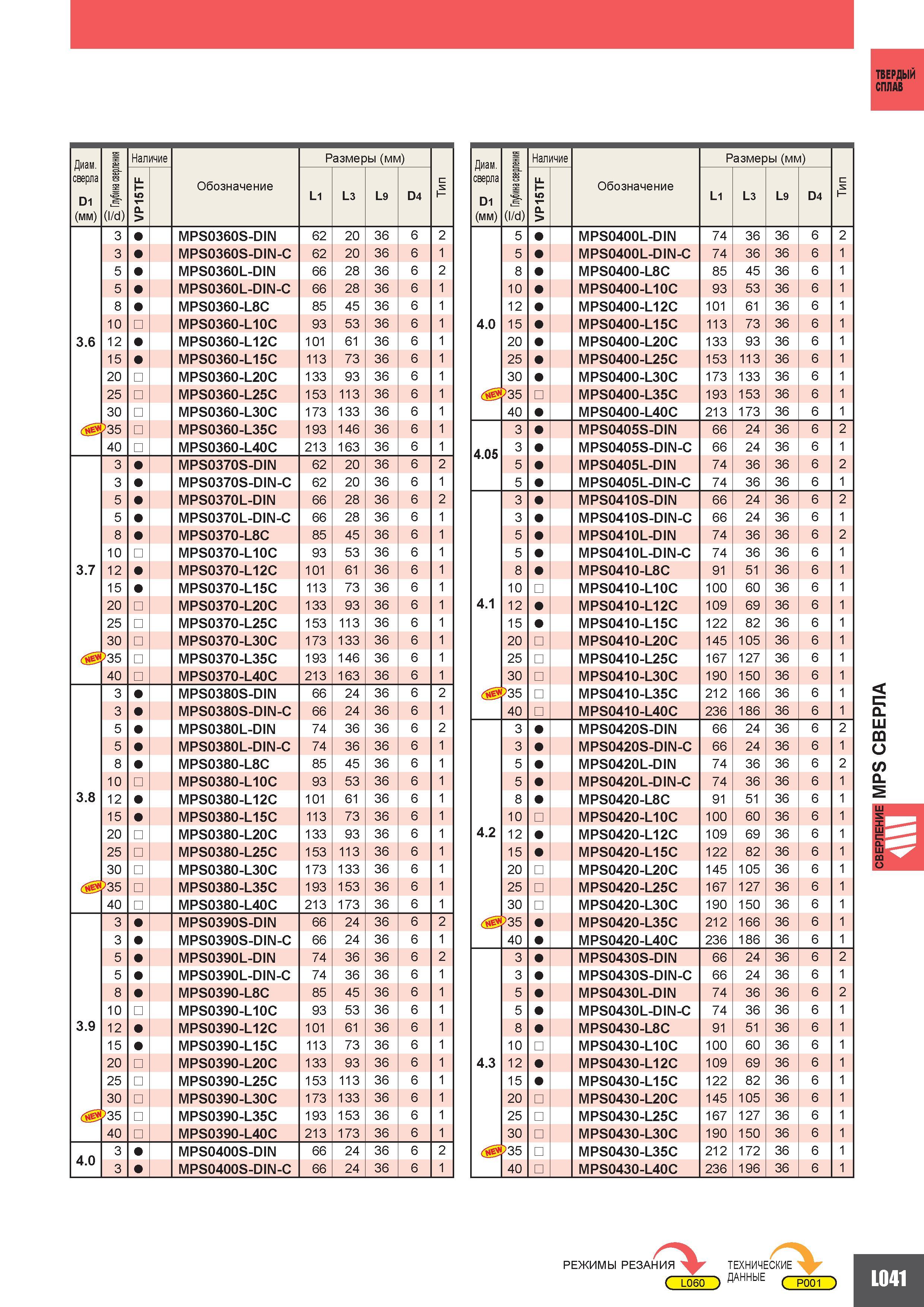

1097 Каталог MITSUBISHI 2010 Режущий инструмент и инструментальные системы Стр.L041

Каталог MITSUBISHI 2010 Режущий инструмент и технологии Стр. L041 1097 Lab2u

ТВЕРДЫЙ СПЛАВ Диаметр сверла D1 (мм) (l d) Наличие Обозначение Размеры (мм) с s 1- VP15TF L1 L3 L9 D4 5 MPS0400L-DIN 74 36 36 6 2 5 MPS0400L-DIN-C 74 36 36 6 1 8 MPS0400-L8C 85 45 36 6 1 10 MPS0400-L10C 93 53 36 6 1 12 MPS0400-L12C 101 61 36 6 1 4.0 15 MPS0400-L15C 113 73 36 6 1 20 MPS0400-L20C 133 93 36 6 1 25 MPS0400-L25C 153 113 36 6 1 30 MPS0400-L30C 173 133 36 6 1 35 MPS0400-L35C 193 153 36 6 1 40 MPS0400-L40C 213 173 36 6 1 3 MPS0405S-DIN 66 24 36 6 4.05 3 MPS0405S-DIN-C 66 24 36 6 1 5 MPS0405L-DIN 74 36 36 6 5 MPS0405L-DIN-C 74 36 36 6 1 3 MPS0410S-DIN 66 24 36 6 3 MPS0410S-DIN-C 66 24 36 6 1 5 MPS0410L-DIN 74 36 36 6 5 MPS0410L-DIN-C 74 36 36 6 1 8 MPS0410-L8C 91 51 36 6 1 10 MPS0410-L10C 100 60 36 6 1 4.1 12 MPS0410-L12C 109 69 36 6 1 15 MPS0410-L15C 122 82 36 6 1 20 MPS0410-L20C 145 105 36 6 1 25 MPS0410-L25C 167 127 36 6 1 30 MPS0410-L30C 190 150 36 6 1 35 MPS0410-L35C 212 166 36 6 1 40 MPS0410-L40C 236 186 36 6 1 3 MPS0420S-DIN 66 24 36 6 3 MPS0420S-DIN-C 66 24 36 6 1 5 MPS0420L-DIN 74 36 36 6 5 MPS0420L-DIN-C 74 36 36 6 1 8 MPS0420-L8C 91 51 36 6 1 10 MPS0420-L10C 100 60 36 6 1 4.2 12 MPS0420-L12C 109 69 36 6 1 15 MPS0420-L15C 122 82 36 6 1 20 MPS0420-L20C 145 105 36 6 1 25 MPS0420-L25C 167 127 36 6 1 30 MPS0420-L30C 190 150 36 6 1 35 MPS0420-L35C 212 166 36 6 1 40 MPS0420-L40C 236 186 36 6 1 3 MPS0430S-DIN 66 24 36 6 3 MPS0430S-DIN-C 66 24 36 6 1 5 MPS0430L-DIN 74 36 36 6 5 MPS0430L-DIN-C 74 36 36 6 1 8 MPS0430-L8C 91 51 36 6 1 10 MPS0430-L10C 100 60 36 6 1 4.3 12 MPS0430-L12C 109 69 36 6 1 15 MPS0430-L15C 122 82 36 6 1 20 MPS0430-L20C 145 105 36 6 1 25 MPS0430-L25C 167 127 36 6 1 30 MPS0430-L30C 190 150 36 6 1 35 MPS0430-L35C 212 172 36 6 1 40 MPS0430-L40C 236 196 36 6 1 Диаметр сверла D1 (мм) (l d) Наличие Обозначение Размеры (мм) с s 1- VP15TF L1 L3 L9 D4 3 MPS0360S-DIN 62 20 36 6 2 3 MPS0360S-DIN-C 62 20 36 6 1 5 MPS0360L-DIN 66 28 36 6 2 5 MPS0360L-DIN-C 66 28 36 6 1 8 MPS0360-L8C 85 45 36 6 1 10 MPS0360-L10C 93 53 36 6 1 3.6 12 MPS0360-L12C 101 61 36 6 1 15 MPS0360-L15C 113 73 36 6 1 20 MPS0360-L20C 133 93 36 6 1 25 MPS0360-L25C 153 113 36 6 1 30 MPS0360-L30C 173 133 36 6 1 35 MPS0360-L35C 193 146 36 6 1 40 MPS0360-L40C 213 163 36 6 1 3 MPS0370S-DIN 62 20 36 6 3 MPS0370S-DIN-C 62 20 36 6 1 5 MPS0370L-DIN 66 28 36 6 5 MPS0370L-DIN-C 66 28 36 6 1 8 MPS0370-L8C 85 45 36 6 1 10 MPS0370-L10C 93 53 36 6 1 3.7 12 MPS0370-L12C 101 61 36 6 1 15 MPS0370-L15C 113 73 36 6 1 20 MPS0370-L20C 133 93 36 6 1 25 MPS0370-L25C 153 113 36 6 1 30 MPS0370-L30C 173 133 36 6 1 S 35 MPS0370-L35C 193 146 36 6 1 40 MPS0370-L40C 213 163 36 6 1 3 MPS0380S-DIN 66 24 36 6 3 MPS0380S-DIN-C 66 24 36 6 1 5 MPS0380L-DIN 74 36 36 6 5 MPS0380L-DIN-C 74 36 36 6 1 8 MPS0380-L8C 85 45 36 6 1 10 MPS0380-L10C 93 53 36 6 1 3.8 12 MPS0380-L12C 101 61 36 6 1 15 MPS0380-L15C 113 73 36 6 1 20 MPS0380-L20C 133 93 36 6 1 25 MPS0380-L25C 153 113 36 6 1 30 MPS0380-L30C 173 133 36 6 1 35 MPS0380-L35C 193 153 36 6 1 40 MPS0380-L40C 213 173 36 6 1 3 MPS0390S-DIN 66 24 36 6 3 MPS0390S-DIN-C 66 24 36 6 1 5 MPS0390L-DIN 74 36 36 6 5 MPS0390L-DIN-C 74 36 36 6 1 8 MPS0390-L8C 85 45 36 6 1 10 MPS0390-L10C 93 53 36 6 1 3.9 12 MPS0390-L12C 101 61 36 6 1 15 MPS0390-L15C 113 73 36 6 1 20 MPS0390-L20C 133 93 36 6 1 25 MPS0390-L25C 153 113 36 6 1 30 MPS0390-L30C 173 133 36 6 1 35 MPS0390-L35C 193 153 36 6 1 40 MPS0390-L40C 213 173 36 6 1 4.0 3 MPS0400S-DIN 66 24 36 6 2 3 MPS0400S-DIN-C 66 24 36 6 1 РЕЖИМЫ РЕЗАНИЯ ТЕХНИЧЕСКИЕ О0Ю ДАННЫЕ ГрооГ-) L041 СВЕРЛЕНИЕ MPS СВЕРЛА
