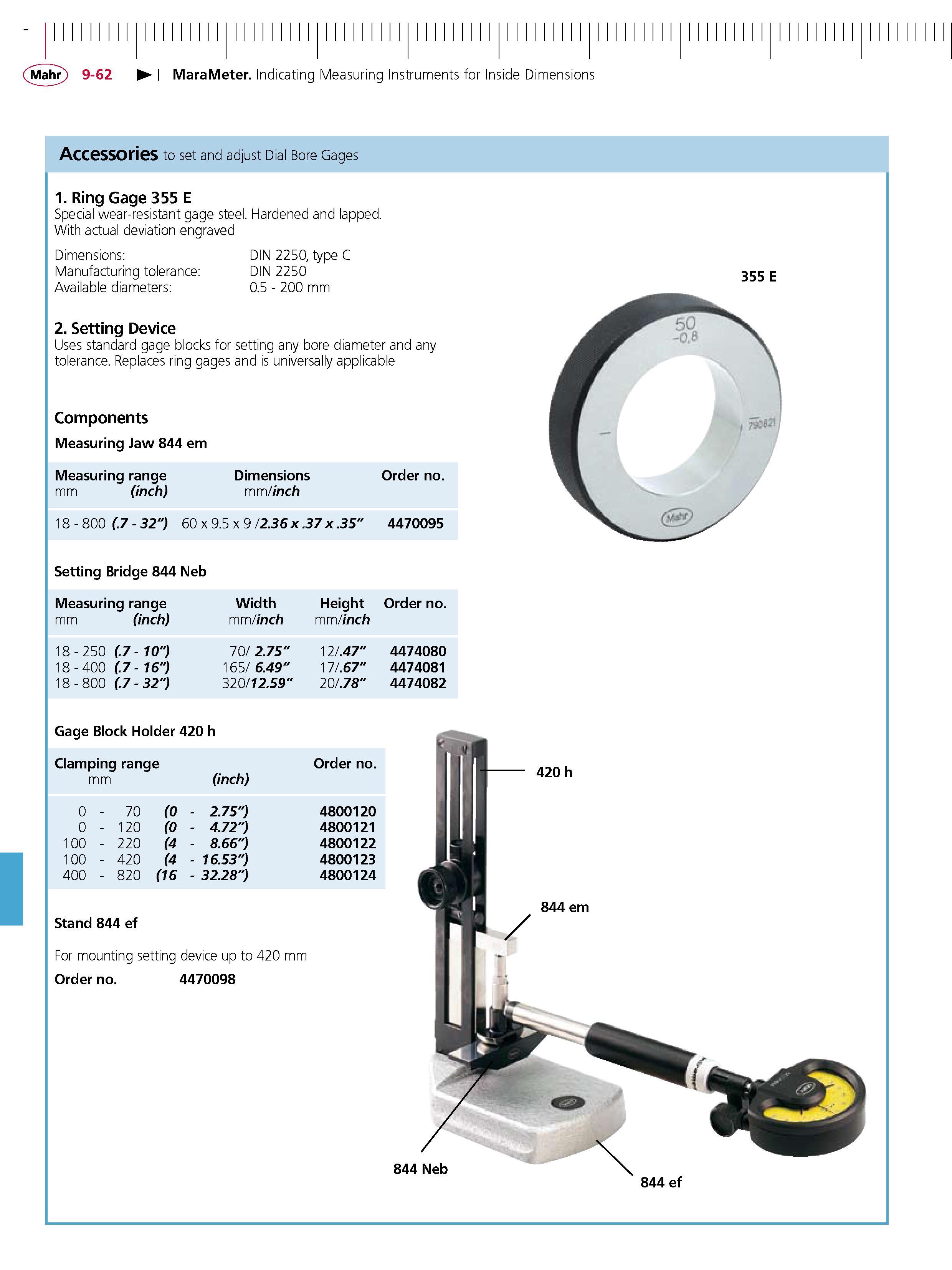

MaraMeter. Indicating Measuring Instruments for Inside Dimensions Accessories to set and adjust Dial Bore Gages 1. Ring Gage 355 E Special wear-resistant gage steel. Hardened and lapped. With actual deviation engraved Dimensions Manufacturing tolerance Available diameters DIN 2250 type C DIN 2250 0.5 - 200 mm 355 E 2. Setting Device Uses standard gage blocks for setting any bore diameter and any tolerance. Replaces ring gages and is universally applicable Components Measuring Jaw 844 em Measuring range Dimensions Order no. mm (inch) mm inch 18 - 800 (.7 - 32") 60 x 9.5 x 9 2.36x .37x .35" 4470095 Setting Bridge 844 Neb Measuring range Width Height Order no. mm (inch) mm inch mm inch 18 - 250 (.7 - 10") 70 2.75" 12 .47" 4474080 18 - 400 (.7 -16") 165 6.49" 17 .67" 4474081 18 - 800 (.7 - 32") 320 12.59" 20 .78" 4474082 Gage Block Holder 420 h Clamping range Order no. mm (inch) 0 - 70 (0 - 2.75") 4800120 0 - 120 (0 - 4.72") 4800121 100 - 220 (4 - 8.66") 4800122 100 - 420 (4 - 16.53") 4800123 400 - 820 (16 - 32.28") 4800124 420 h Stand 844 ef For mounting setting device up to 420 mm Order no. 4470098 844 Neb 844 ef
