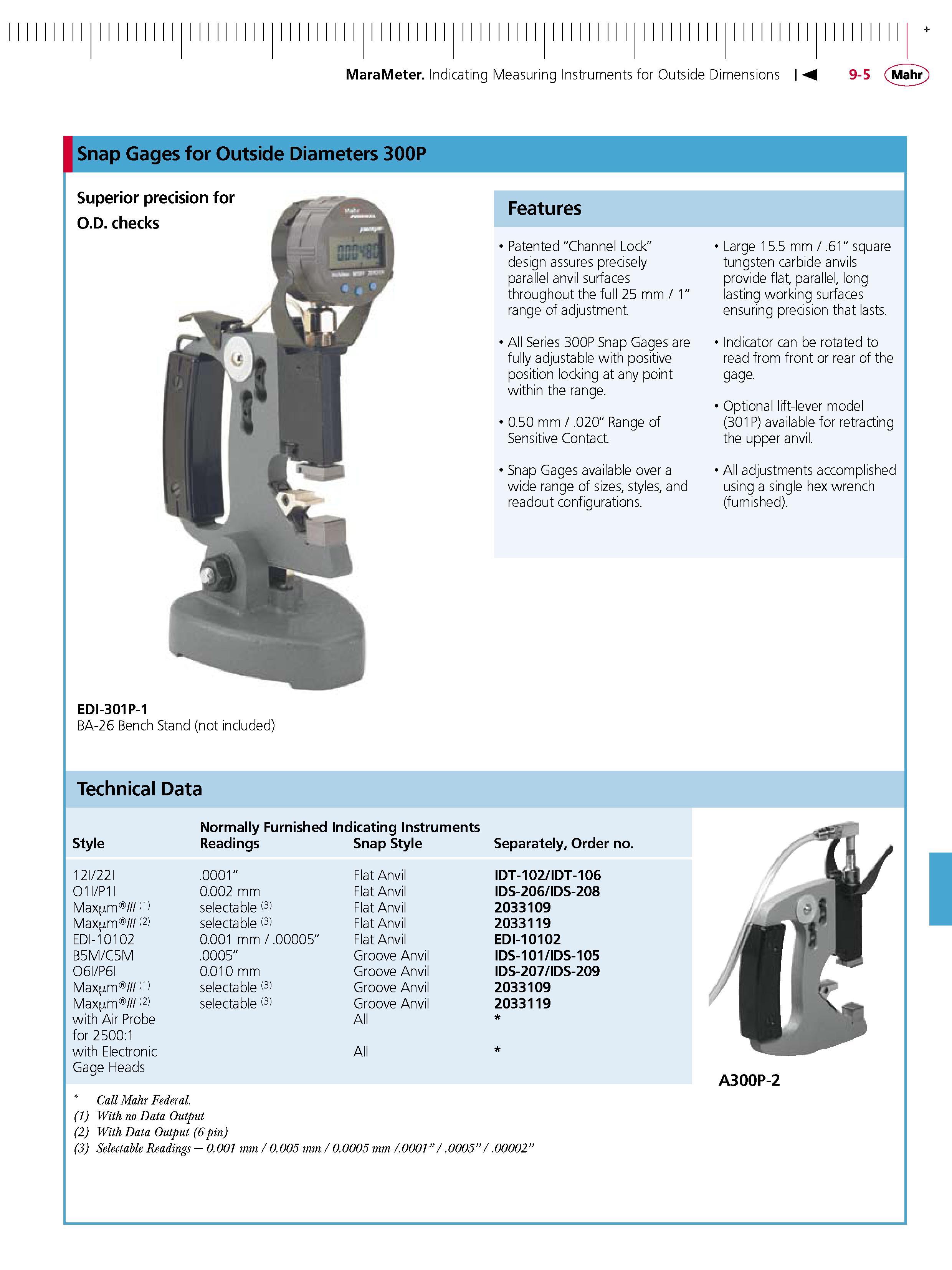

MaraMeter. Indicating Measuring Instruments for Outside Dimensions Snap Gages for Outside Diameters 300P Superior precision for O.D. checks Features Patented "Channel Lock" design assures precisely parallel anvil surfaces throughout the full 25 mm 1" range of adjustment. All Series 300P Snap Gages are fully adjustable with positive position locking at any point within the range. 0.50 mm .020" Range of Sensitive Contact. Snap Gages available over a wide range of sizes styles and readout configurations. Large 15.5 mm .61" square tungsten carbide anvils provide flat parallel long lasting working surfaces ensuring precision that lasts. Indicator can be rotated to read from front or rear of the gage. Optional lift-lever model (301P) available for retracting the upper anvil. All adjustments accomplished using a single hex wrench (furnished). EDI-301P-1 BA-26 Bench Stand (not included) Technical Data Normally Furnished Indicating Instruments Style Readings Snap Style Separately Order no. 12I 22I .0001" Flat Anvil IDT-102 IDT-106 O1I P1I 0.002 mm Flat Anvil IDS-206 IDS-208 Max m (1) selectable (3) Flat Anvil 2033109 Max m (2) selectable (3) Flat Anvil 2033119 EDI-10102 0.001 mm .00005" Flat Anvil EDI-10102 B5M C5M .0005" Groove Anvil IDS-101 IDS-105 O6I P6I 0.010 mm Groove Anvil IDS-207 IDS-209 Max m (1) selectable (3) Groove Anvil 2033109 Max m (2) selectable (3) Groove Anvil 2033119 with Air Probe All for 2500:1 with Electronic All Gage Heads A300P-2 Call Mahr Federal. (1) With no Data Output (2) With Data Output (6pin) (3) Selectable Readings 0.001 mm 0.005 mm 0.0005 mm .0001" .0005" .00002"
