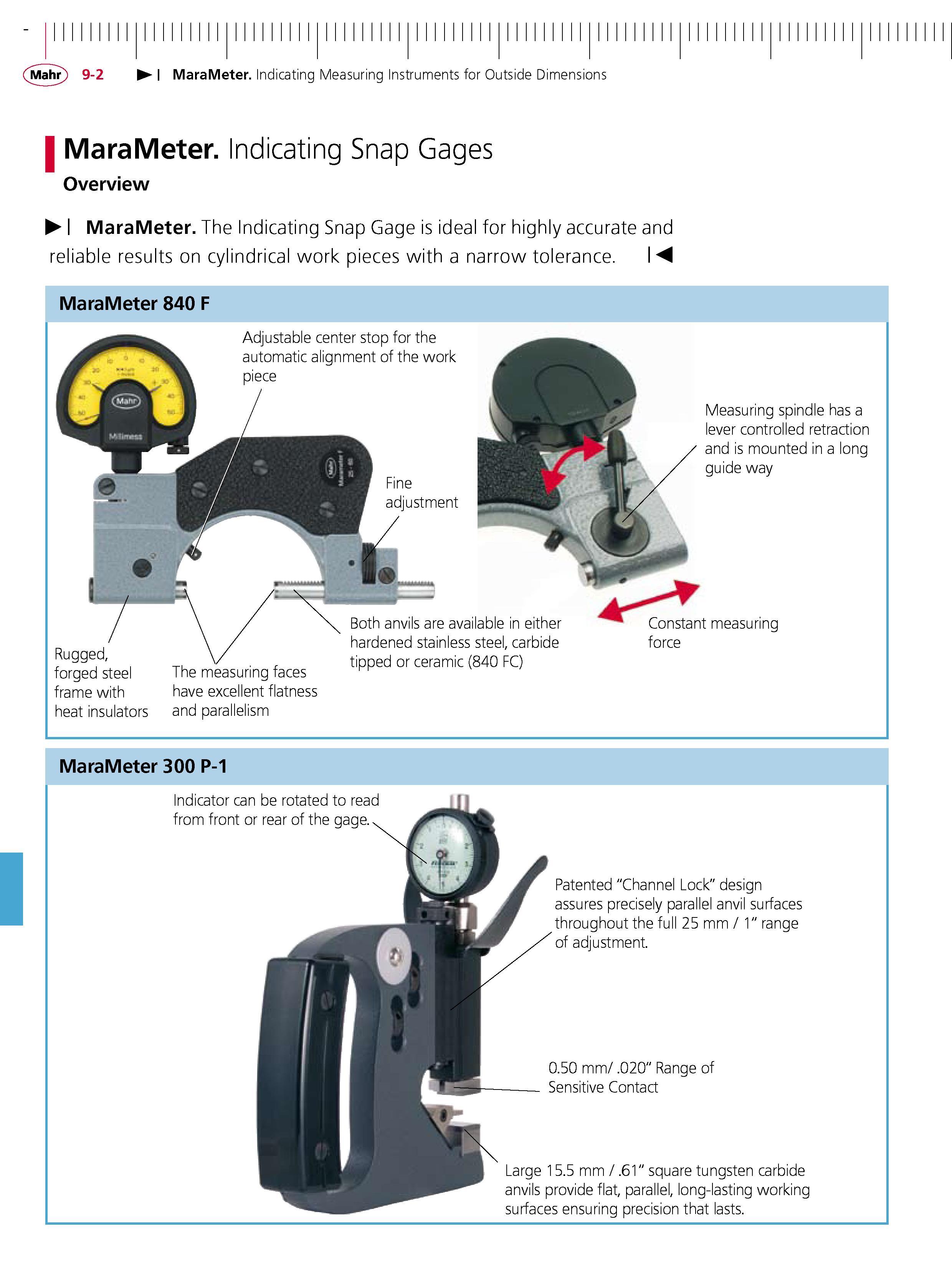

MaraMeter. Indicating Measuring Instruments for Outside Dimensions MaraMeter. Indicating Snap Gages Overview MaraMeter. The Indicating Snap Gage is ideal for highly accurate and reliable results on cylindrical work pieces with a narrow tolerance. IM MaraMeter 840 F Adjustable center stop for the automatic alignment of the work piece Fine adjustment Rugged forged steel frame with heat insulators The measuring faces have excellent flatness and parallelism Both anvils are available in either hardened stainless steel carbide tipped or ceramic (840 FC) Measuring spindle has a lever controlled retraction and is mounted in a long guide way Constant measuring force MaraMeter 300 P-1 Indicator can be rotated to read from front or rear of the gage. Patented "Channel Lock" design assures precisely parallel anvil surfaces throughout the full 25 mm 1" range of adjustment. 0.50 mm .020" Range of Sensitive Contact Large 15.5 mm .61" square tungsten carbide anvils provide flat parallel long-lasting working surfaces ensuring precision that lasts.
