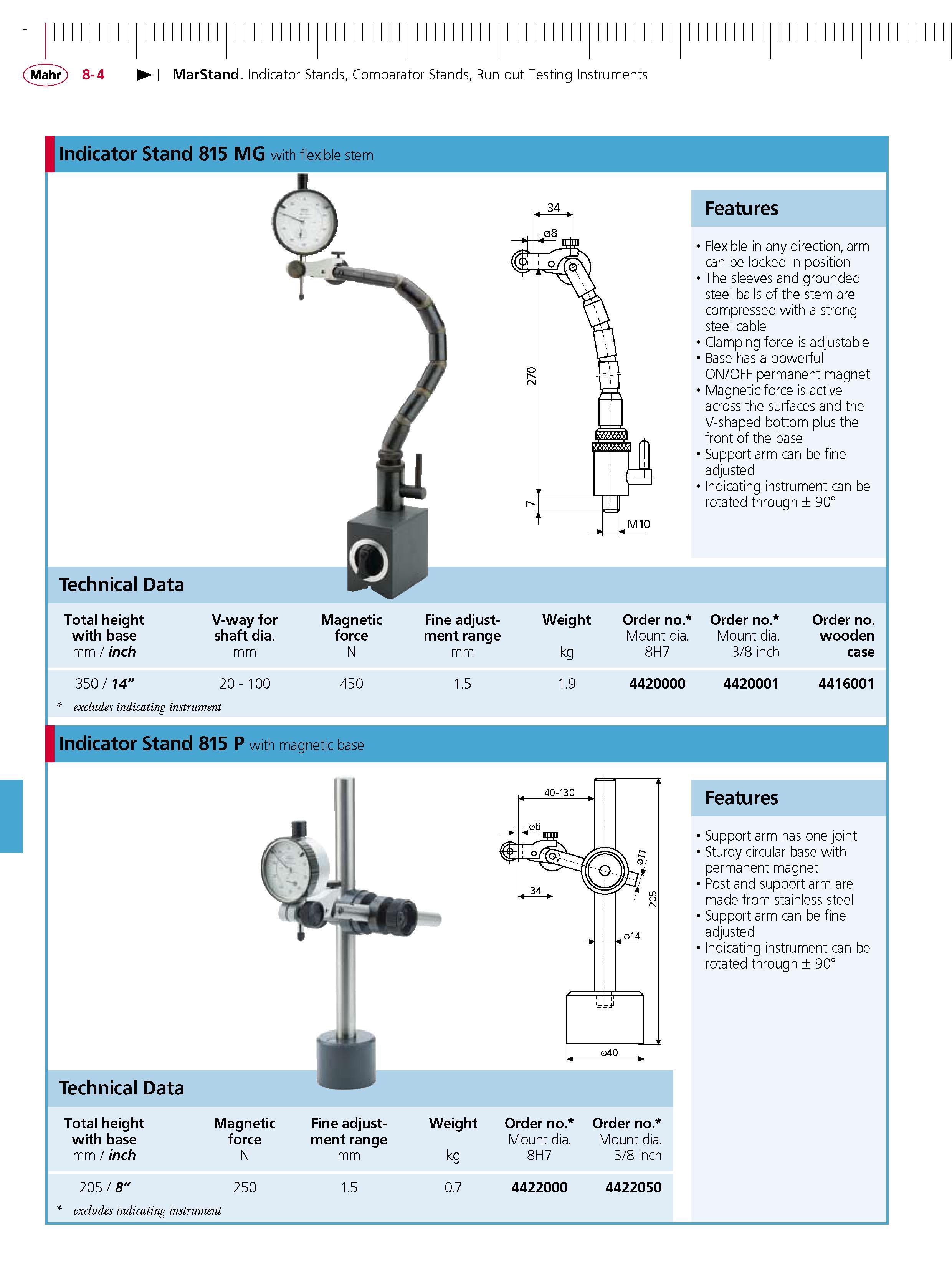

MarStand. Indicator Stands Comparator Stands Run out Testing Instruments Indicator Stand 815 MG with flexible stem 34 Features Flexible in any direction arm can be locked in position The sleeves and grounded steel balls of the stem are compressed with a strong steel cable Clamping force is adjustable Base has a powerful ON OFF permanent magnet Magnetic force is active across the surfaces and the V-shaped bottom plus the front of the base Support arm can be fine adjusted Indicating instrument can be rotated through 90 Technical Data Total height with base mm inch V-way for shaft dia. mm 350 14" 20 - 100 excludes indicating instrument Magnetic force N 450 Fine adjustment range mm 1.5 Weight kg 1.9 Order no. Mount dia. 8H7 4420000 Order no. Mount dia. 3 8 inch 4420001 Order no. wooden case 4416001 Indicator Stand 815 P with magnetic base 40-130 Features Support arm has one joint Sturdy circular base with permanent magnet Post and support arm are made from stainless steel Support arm can be fine adjusted Indicating instrument can be rotated through 90 Technical Data Total height with base mm inch Magnetic force N Fine adjustment range mm Weight kg Order no. Mount dia. 8H7 Order no. Mount dia. 3 8 inch 205 8" 250 1.5 0.7 4422000 4422050 excludes indicating instrument
