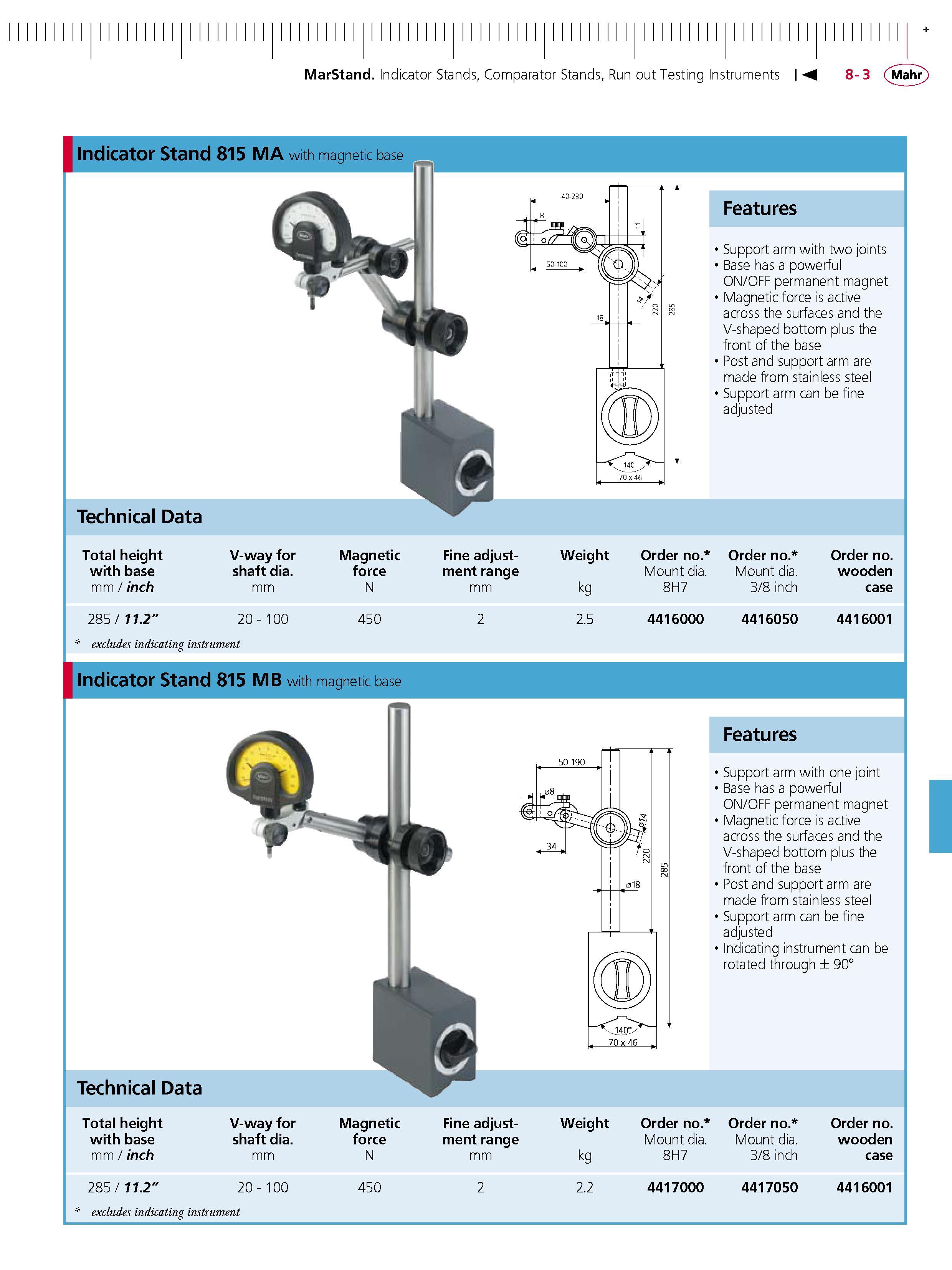

MarStand. Indicator Stands Comparator Stands Run out Testing Instruments Indicator Stand 815 MA with magnetic base Technical Data Total height with base mm inch Features Support arm with two joints Base has a powerful ON OFF permanent magnet Magnetic force is active across the surfaces and the V-shaped bottom plus the front of the base Post and support arm are made from stainless steel Support arm can be fine adjusted V-way for shaft dia. mm 285 11.2" 20 - 100 excludes indicating instrument Magnetic force N 450 Fine adjustment range mm 2 Weight kg 2.5 Order no. Mount dia. 8H7 4416000 Order no. Mount dia. 3 8 inch 4416050 Order no. wooden case 4416001 Indicator Stand 815 MB with magnetic base Technical Data Total height with base mm inch Features Support arm with one joint Base has a powerful ON OFF permanent magnet Magnetic force is active across the surfaces and the V-shaped bottom plus the front of the base Post and support arm are made from stainless steel Support arm can be fine adjusted Indicating instrument can be rotated through 90 V-way for shaft dia. mm 285 11.2" 20 - 100 excludes indicating instrument Magnetic force N 450 Fine adjustment range mm 2 Weight kg 2.2 Order no. Mount dia. 8H7 4417000 Order no. Mount dia. 3 8 inch 4417050 Order no. wooden case 4416001
