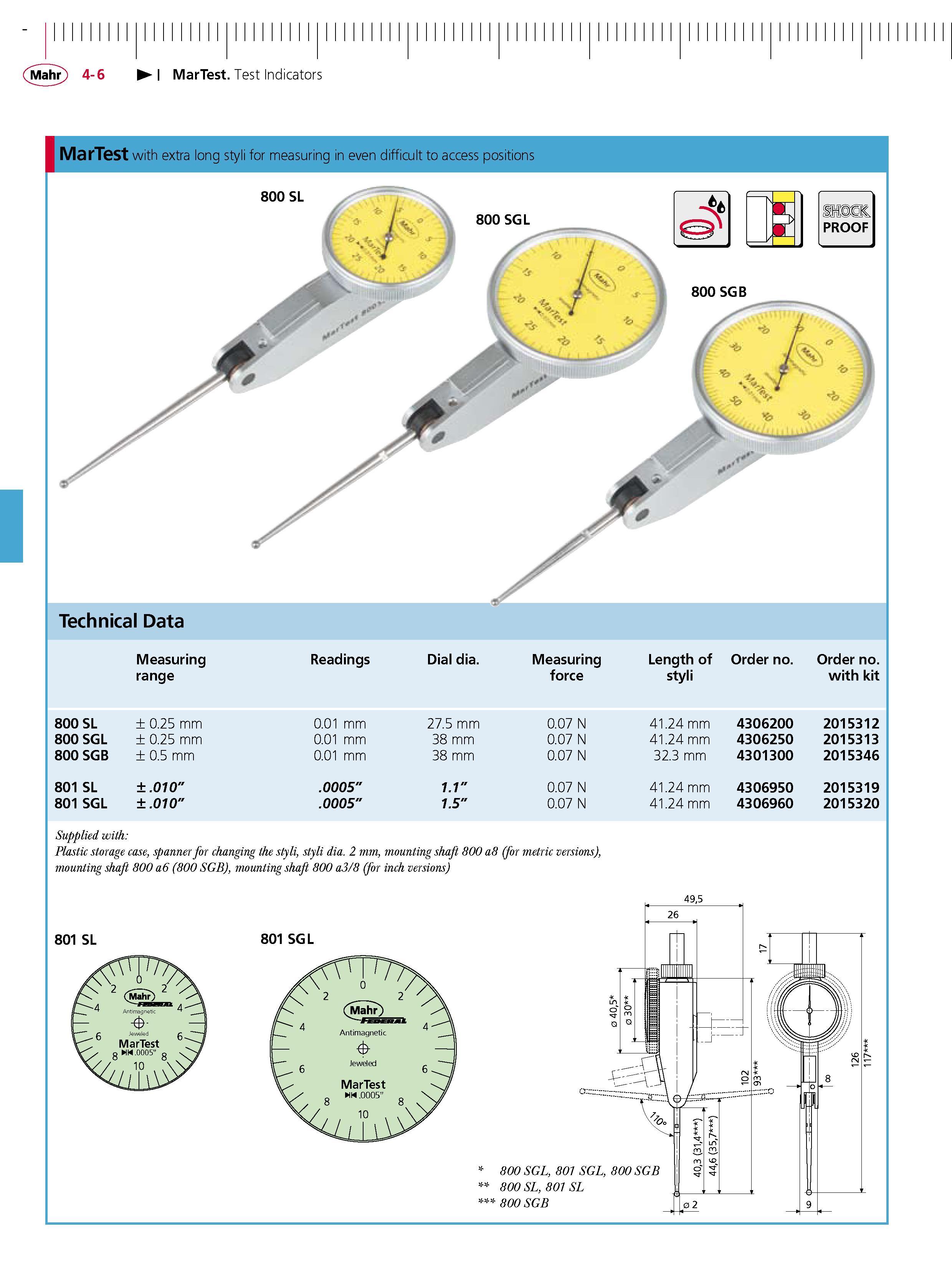

MarTest. Test Indicators MarTest with extra long styli for measuring in even difficult to access positions 800 SL 800 SGL i fei % NJ v V r 800 SGB m t s' Technical Data Measuring range Readings Dial dia. Measuring force Length of styli Order no. Order no. with kit 800 SL 0.25 mm 0.01 mm 27.5 mm 0.07 N 41.24 mm 4306200 2015312 800 SGL 0.25 mm 0.01 mm 38 mm 0.07 N 41.24 mm 4306250 2015313 800 SGB 0.5 mm 0.01 mm 38 mm 0.07 N 32.3 mm 4301300 2015346 801 SL .010" .0005" 1.1" 0.07 N 41.24 mm 4306950 2015319 801 SGL .010" .0005" 1.5" 0.07 N 41.24 mm 4306960 2015320 Supplied with Plastic storage case spanner for changing the styli styli dia. 2 mm mounting shaft 800 a8 (for metric versions) mounting shaft 800 a6 (800 SGB) mounting shaft 800 a3 8 (for inch versions) 801 SL 801 SGL
