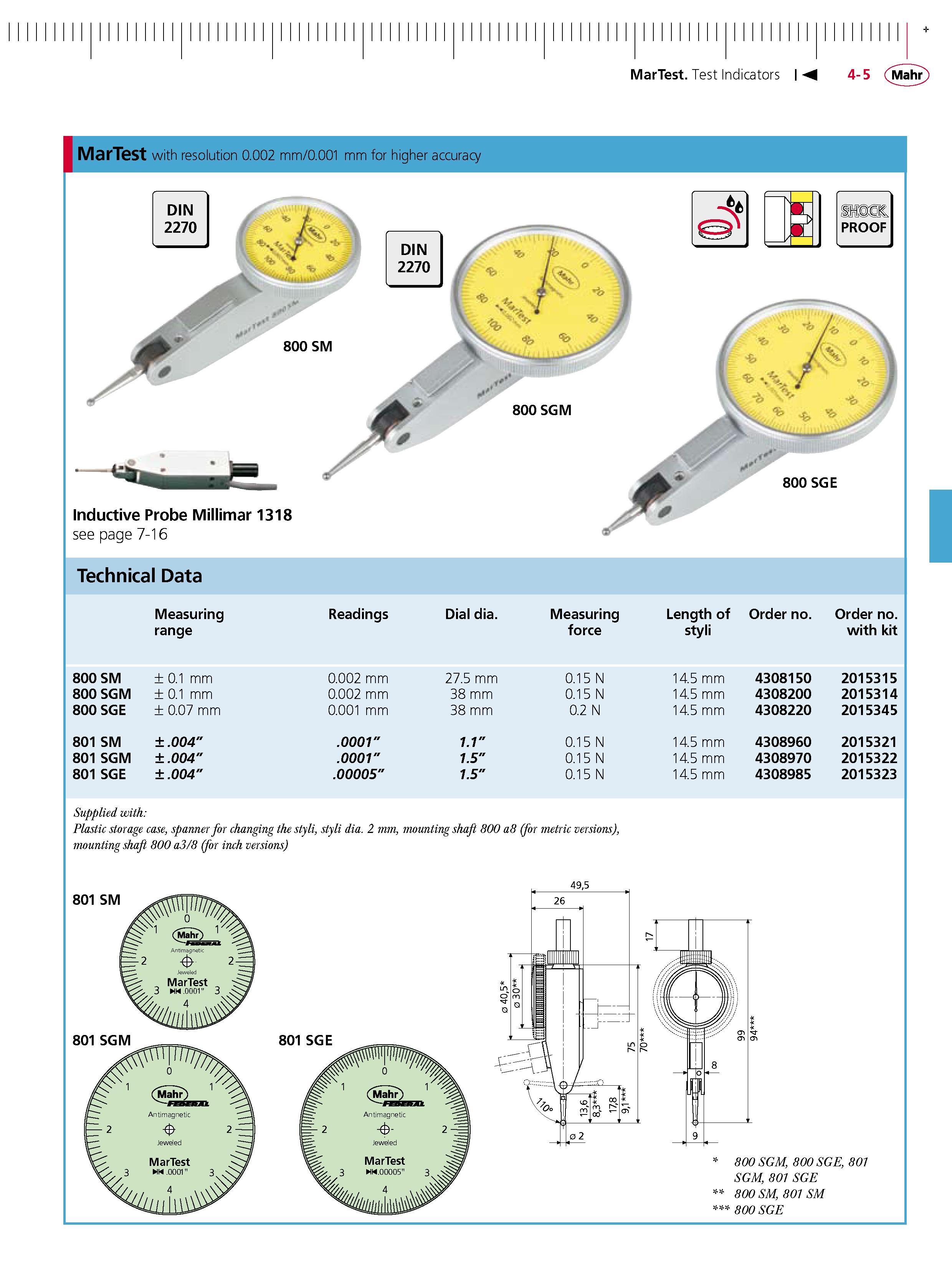

MarTest. Test Indicators J MarTest with resolution 0.002 mm 0.001 mm for higher accuracy DIN 2270 - 't k -f". DIN 2270 800 SM 800 SGM Inductive Probe Millimar 1318 see page 7-16 Technical Data fe vV v % V 800 SGE Measuring range Readings Dial dia. Measuring force Length of styli Order no. Order no. with kit 800 SM 0.1 mm 0.002 mm 27.5 mm 0.15 N 14.5 mm 4308150 2015315 800 SGM 0.1 mm 0.002 mm 38 mm 0.15 N 14.5 mm 4308200 2015314 800 SGE 0.07 mm 0.001 mm 38 mm 0.2 N 14.5 mm 4308220 2015345 801 SM .004" .0001" 1.1" 0.15 N 14.5 mm 4308960 2015321 801 SGM .004" .0001" 1.5" 0.15 N 14.5 mm 4308970 2015322 801 SGE .004" .00005" 1.5" 0.15 N 14.5 mm 4308985 2015323 Supplied with Plastic storage case spanner for changing the styli styli dia. 2 mm mounting shaft 800 a8 (for metric versions) mounting shaft 800 a3 8 (for inch versions) 801 SM 801 SGM 801 SGE 800 SGM 800 SGE 801 SGM 801 SGE 800 SM 801 SM 800 SGE
