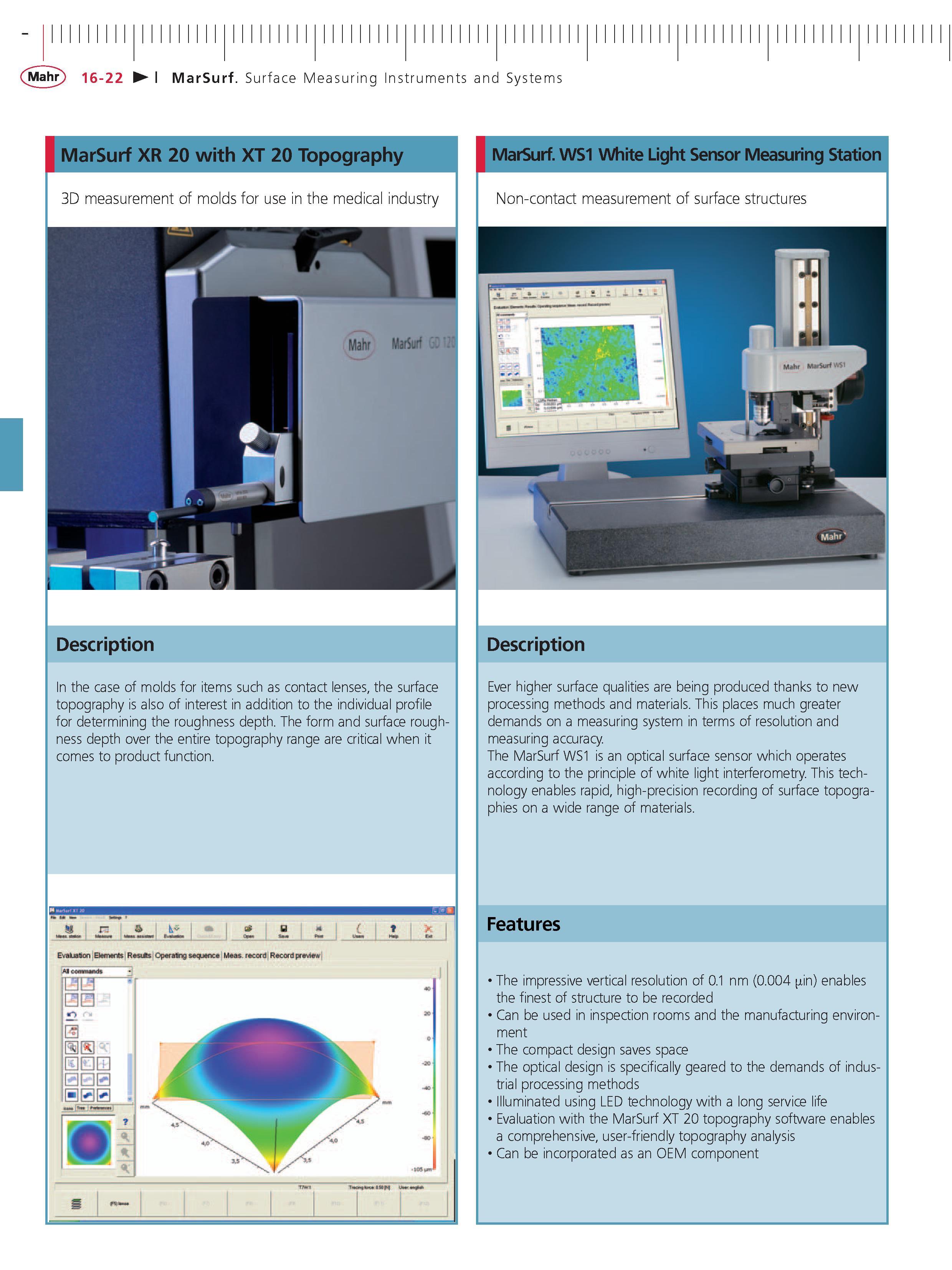

MarSurf. Surface Measuring Instruments and Systems MarSurf XR 20 with XT 20 Topography MarSurf. WS1 White Light Sensor Measuring Station 3D measurement of molds for use in the medical industry Non-contact measurement of surface structures IB Description In the case of molds for items such as contact lenses the surface topography is also of interest in addition to the individual profile for determining the roughness depth. The form and surface roughness depth over the entire topography range are critical when it comes to product function. Description Ever higher surface qualities are being produced thanks to new processing methods and materials. This places much greater demands on a measuring system in terms of resolution and measuring accuracy. The MarSurf WS1 is an optical surface sensor which operates according to the principle of white light interferometry. This technology enables rapid high-precision recording of surface topographies on a wide range of materials. Features The impressive vertical resolution of 0.1 nm (0.004 in) enables the finest of structure to be recorded Can be used in inspection rooms and the manufacturing environment The compact design saves space The optical design is specifically geared to the demands of industrial processing methods Illuminated using LED technology with a long service life Evaluation with the MarSurf XT 20 topography software enables a comprehensive user-friendly topography analysis Can be incorporated as an OEM component
